Brine Level Vessel - 024413
Brine Level Vessel - 024413
-
48 HOUR MAINLAND UK DELIVERY
-
ORDER BY 2PM FOR GUARANTEED 48 HOUR DELIVERY
-
NOT SURE IF THIS IS THE RIGHT PRODUCT? CONTACT US VIA OUR PARTS FINDER
Couldn't load pickup availability
Description

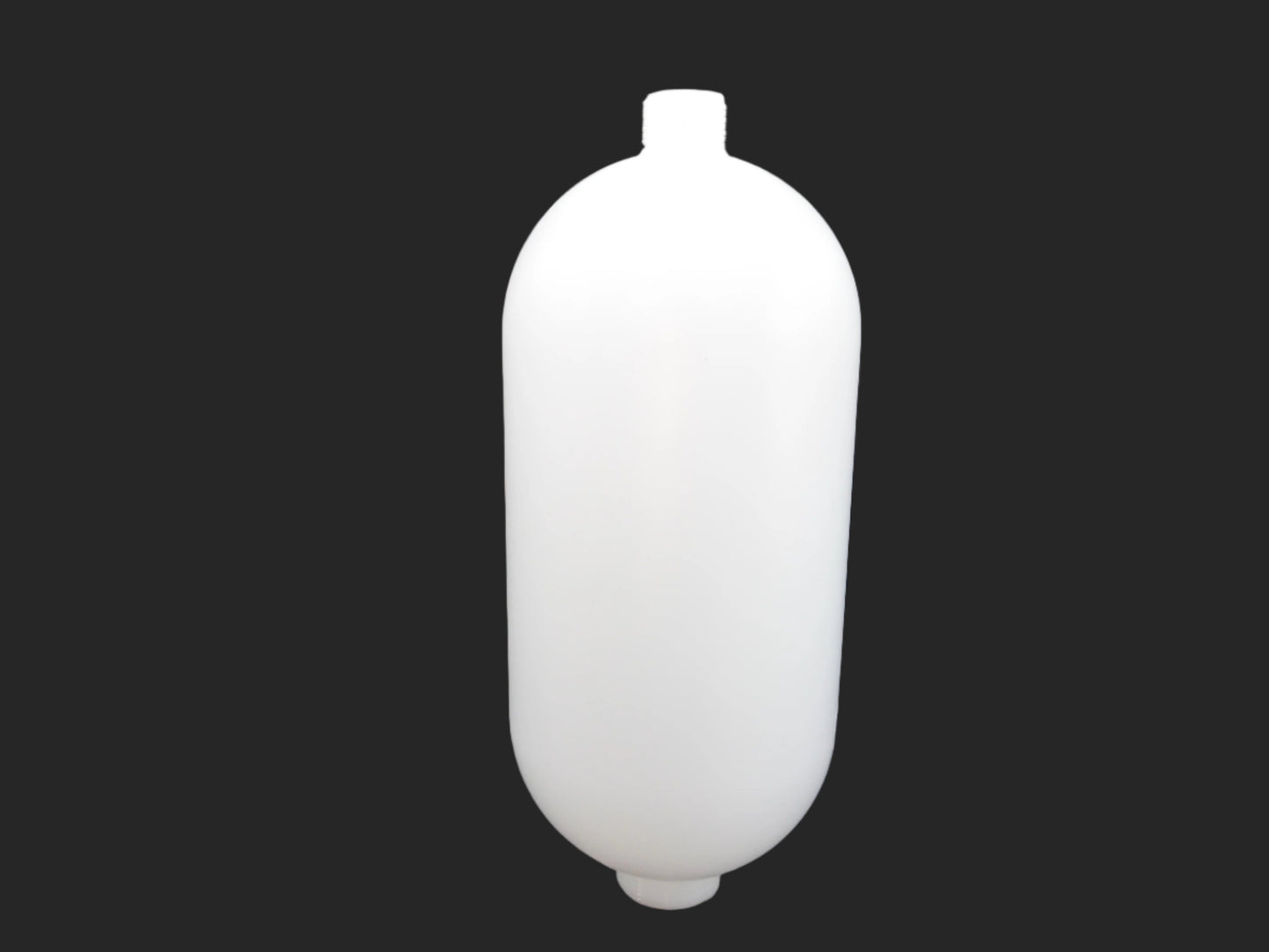

Brine Level Vessel (Expansion/Buffer Tank)
Part Number: 024413
Component: Level Vessel for Brine Circuits
Application: For closed-loop ground source heat pump systems
📐 Physical Dimensions
| Specification | Value |
|---|---|
| Height | 135 mm |
| Length | 470 mm |
| Width | 205 mm |

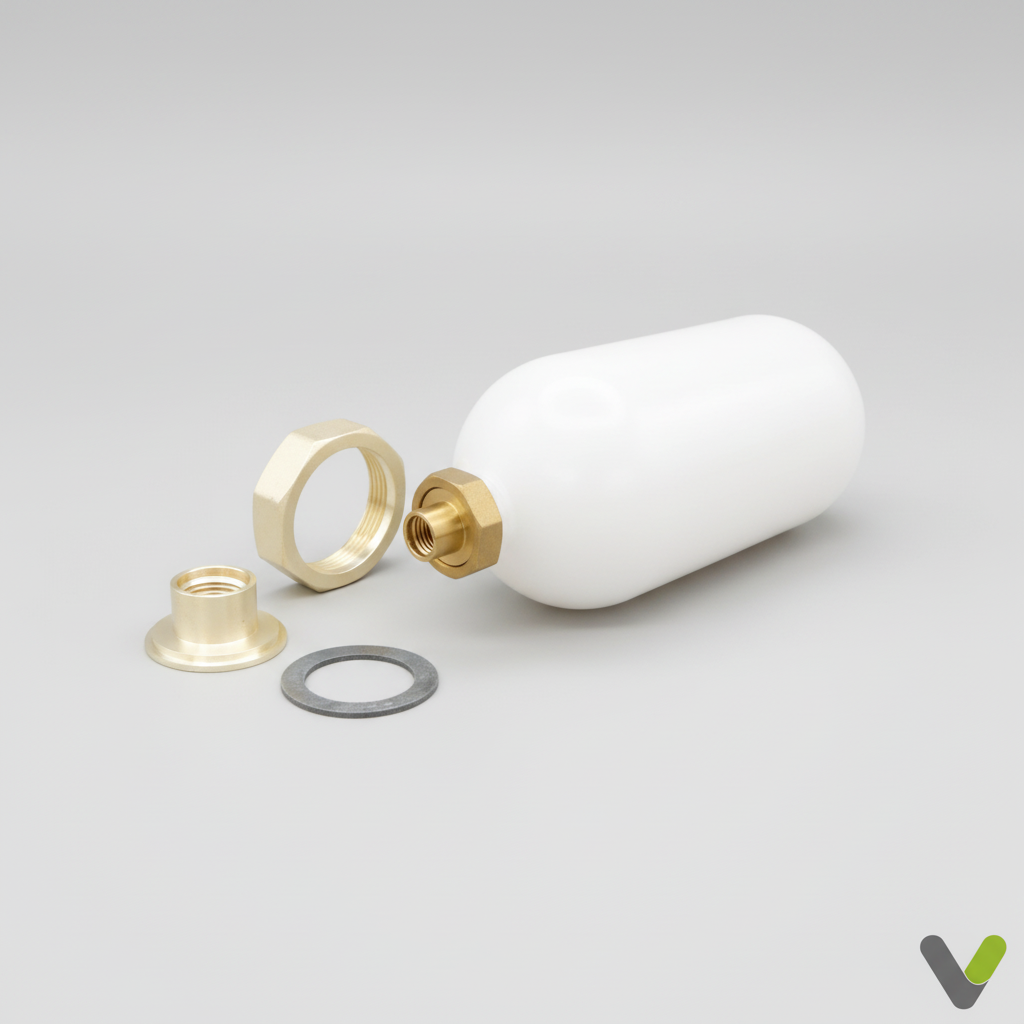

📦 Included Components
-
Union Nut: 1 ½"
-
Flange: R*44.5 with internal threads
-
Gasket: For secure sealing between tank and pipework/flange
✅ Compatibility
This brine vessel is universally compatible with most ground source heat pumps using closed brine loops, including:
-
Nibe
-
Thermia
-
IVT
-
Danfoss
-
And other manufacturers using R*44.5-type connections and similar brine-side setups
🛠️ Typical Use
-
Installed in the brine (glycol) circuit of a ground source heat pump
-
Acts as a pressure buffer and level indicator
-
Prevents pressure fluctuations due to temperature changes
-
Common in brine loop service kits or system refills
