🔁 Nibe 060354 Control Motor (Shunt Motor) – Lineg NR230-431

The Nibe 518231 Control Motor is a precision shunt actuator designed to control the mixing valve in Nibe heating systems. With a strong 5Nm torque output and included manual control hand wheel, this motor delivers smooth, modulating control for optimal climate management across domestic and extended systems.

🔧 Technical Specifications:

• Nibe Part Number: 518231

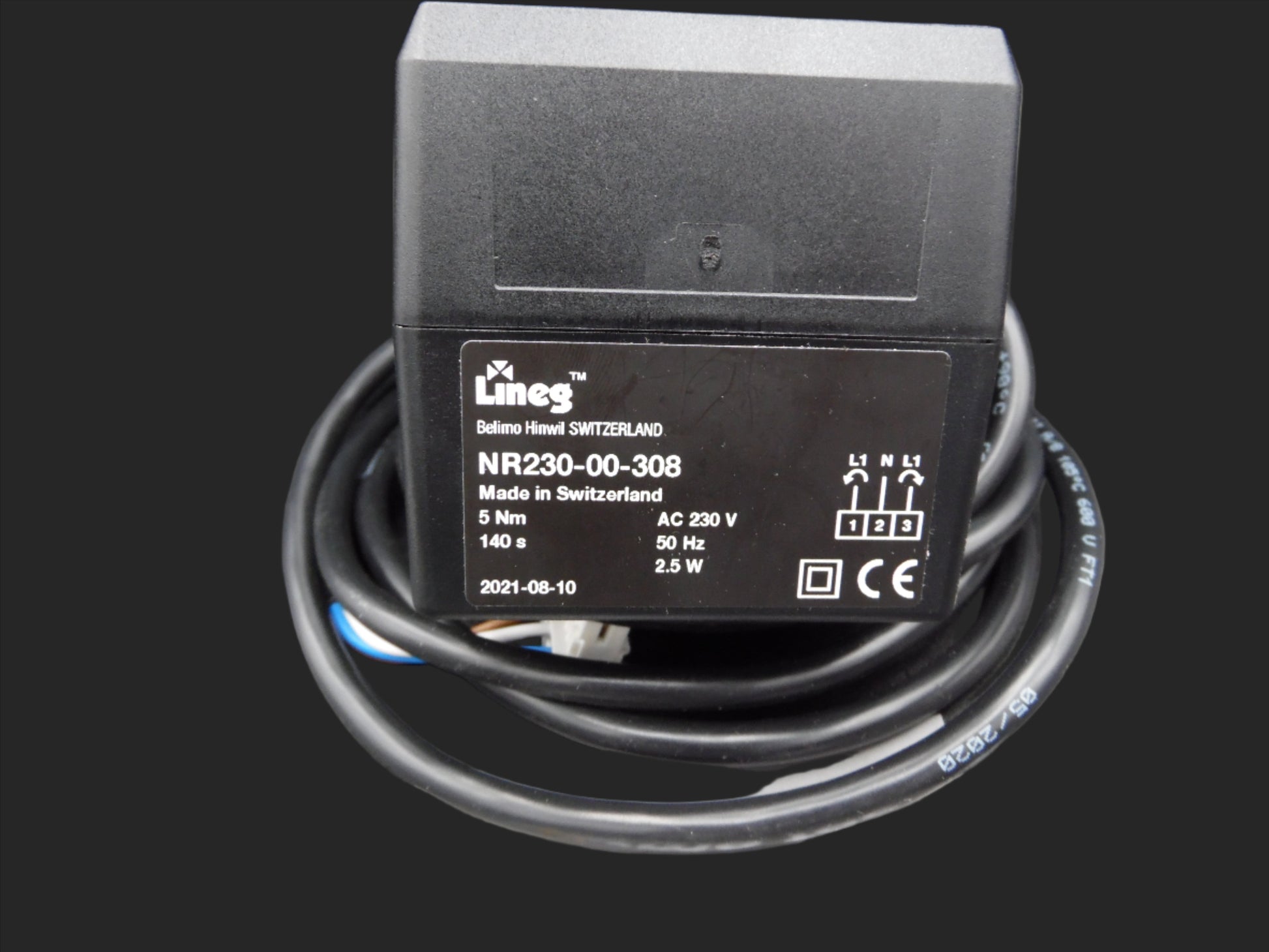

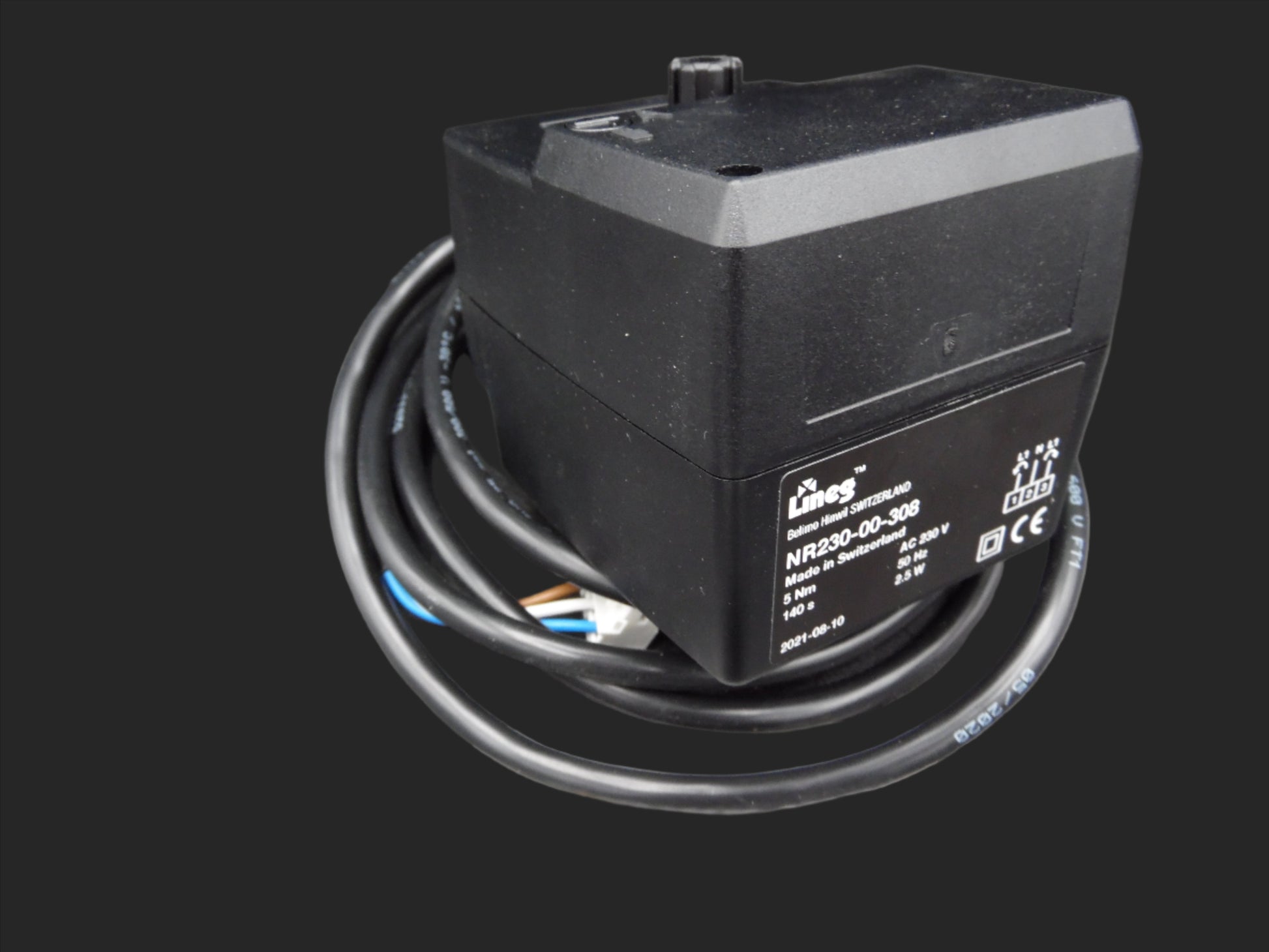

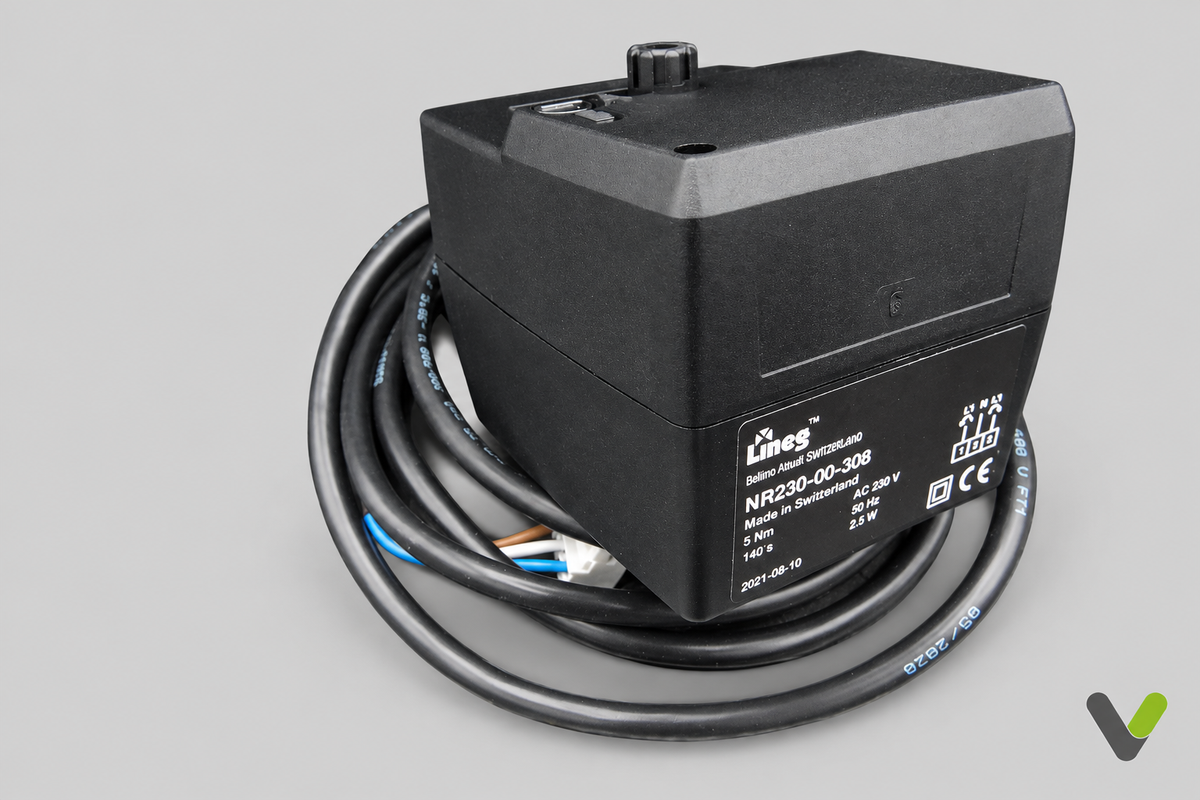

• Actuator Type: Lineg NR230-431

• Torque Output: 5 Nm

• Voltage: 230V AC

• Frequency: 50 Hz

• Power Consumption: 2.5 W

• Run Time: 140 seconds (for full stroke)

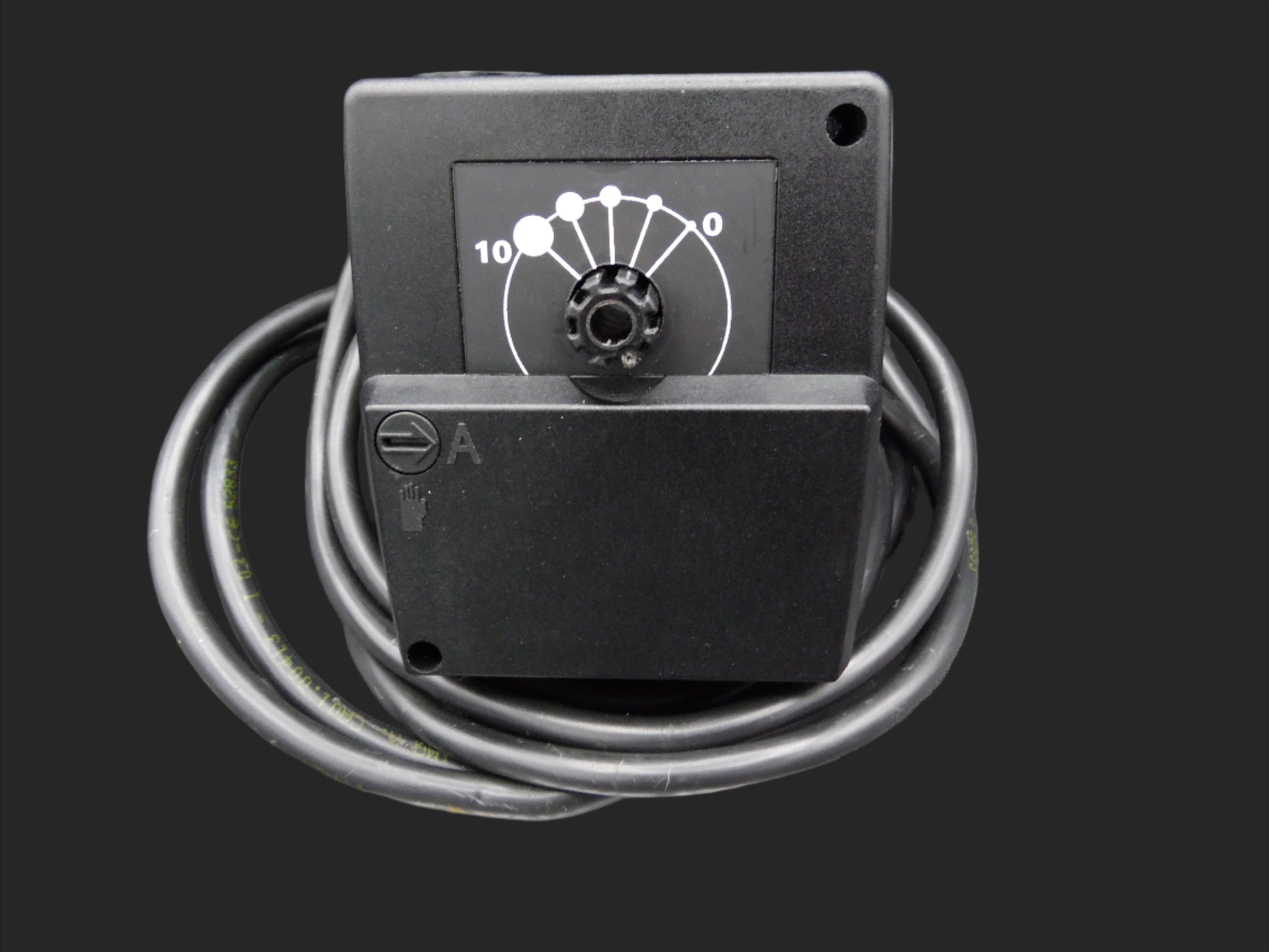

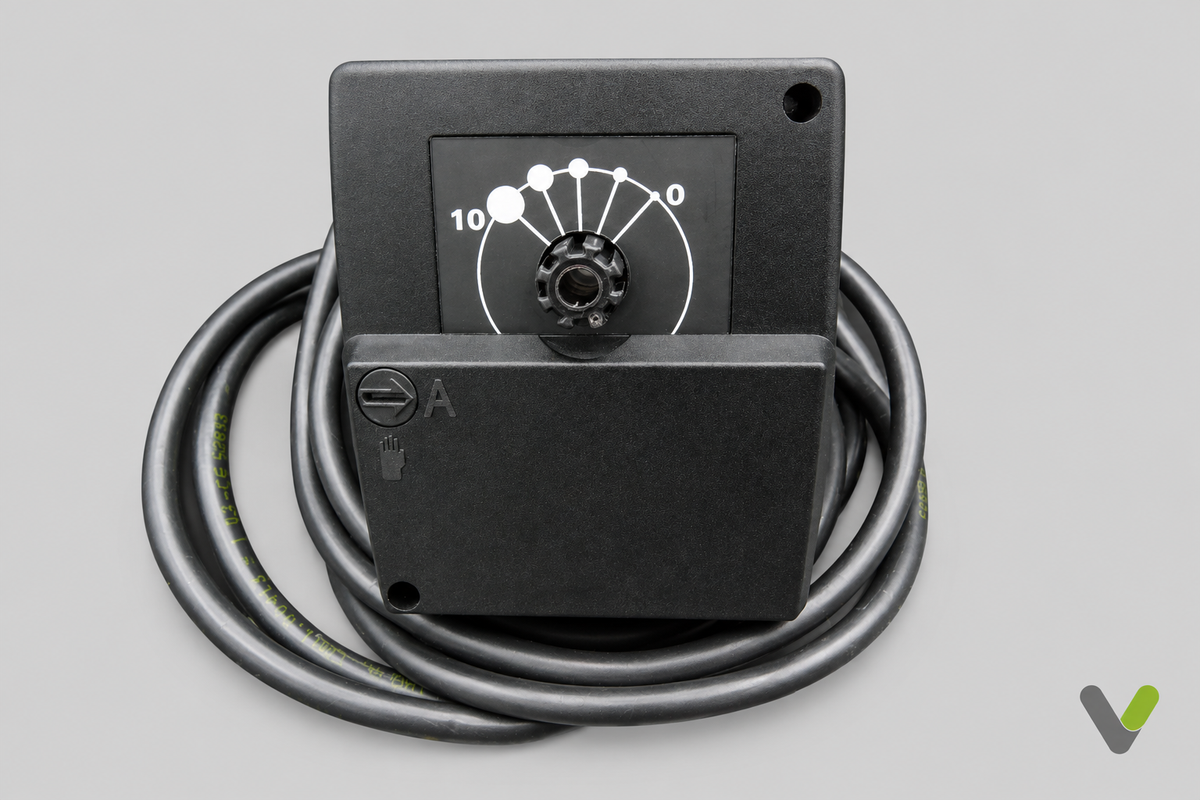

• Hand Operation: Manual override wheel included

• Mounting: Direct to Nibe mixing valves (pre-fitted models or accessory shunts)

✅ Compatible With Nibe Systems:

Direct Unit Integration:

• Nibe F360

• Nibe F410

• Nibe VVM 300

Extra/External Climate Systems:

• ECS 40

• ECS 41

• ESV 20 Extra Shunt

• ESV 21 Extra Shunt

Ideal for installations where multiple heating zones or external circuits require independent temperature control.

🛠️ Key Features & Benefits:

• Precise 3-point control for mixing valves in climate circuits

• Enables zone balancing between radiator and underfloor systems

• Long-life motor design for reliable seasonal operation

• Manual override ensures ease of setup and emergency adjustment
