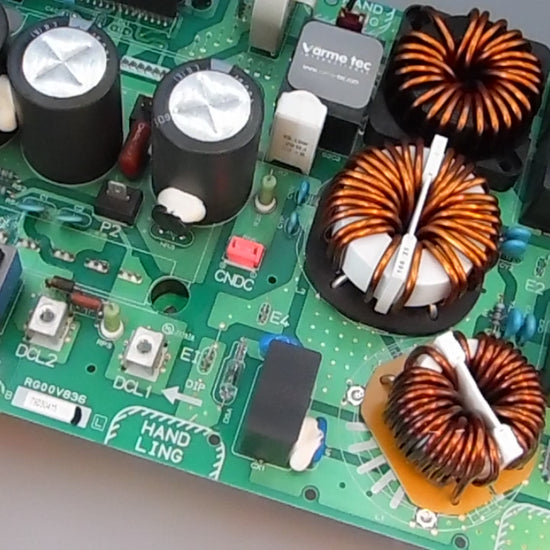

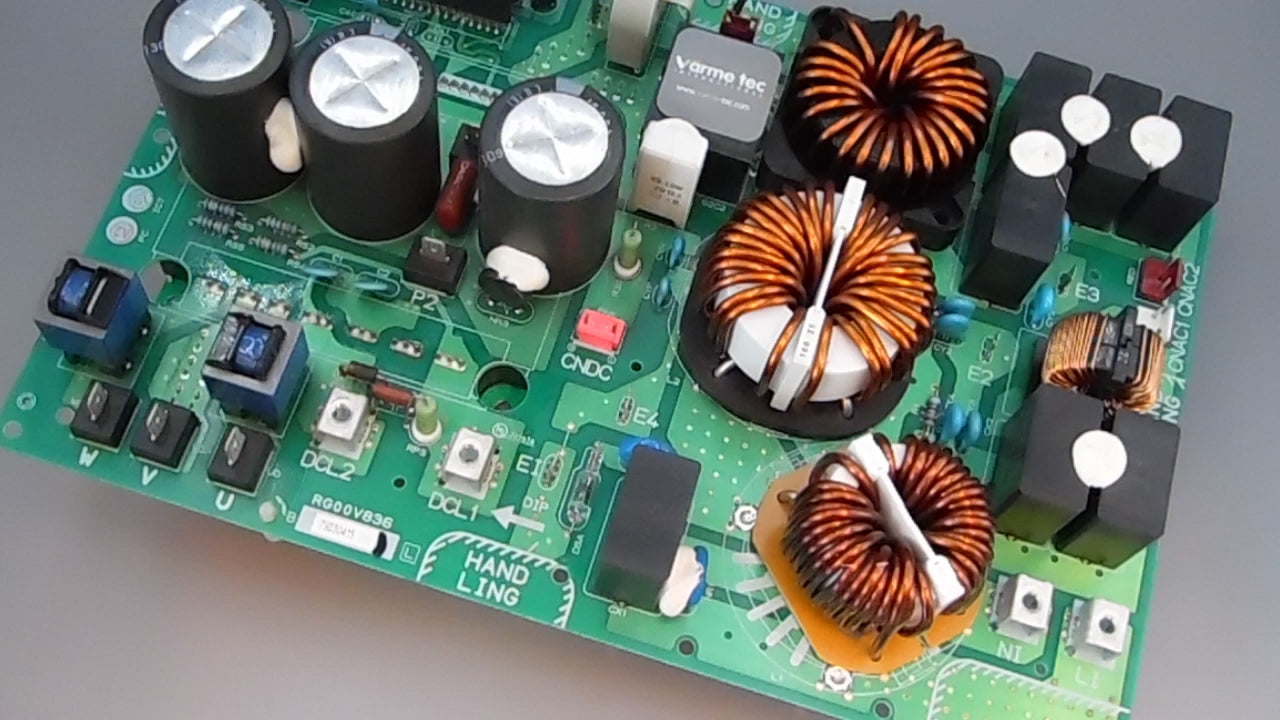

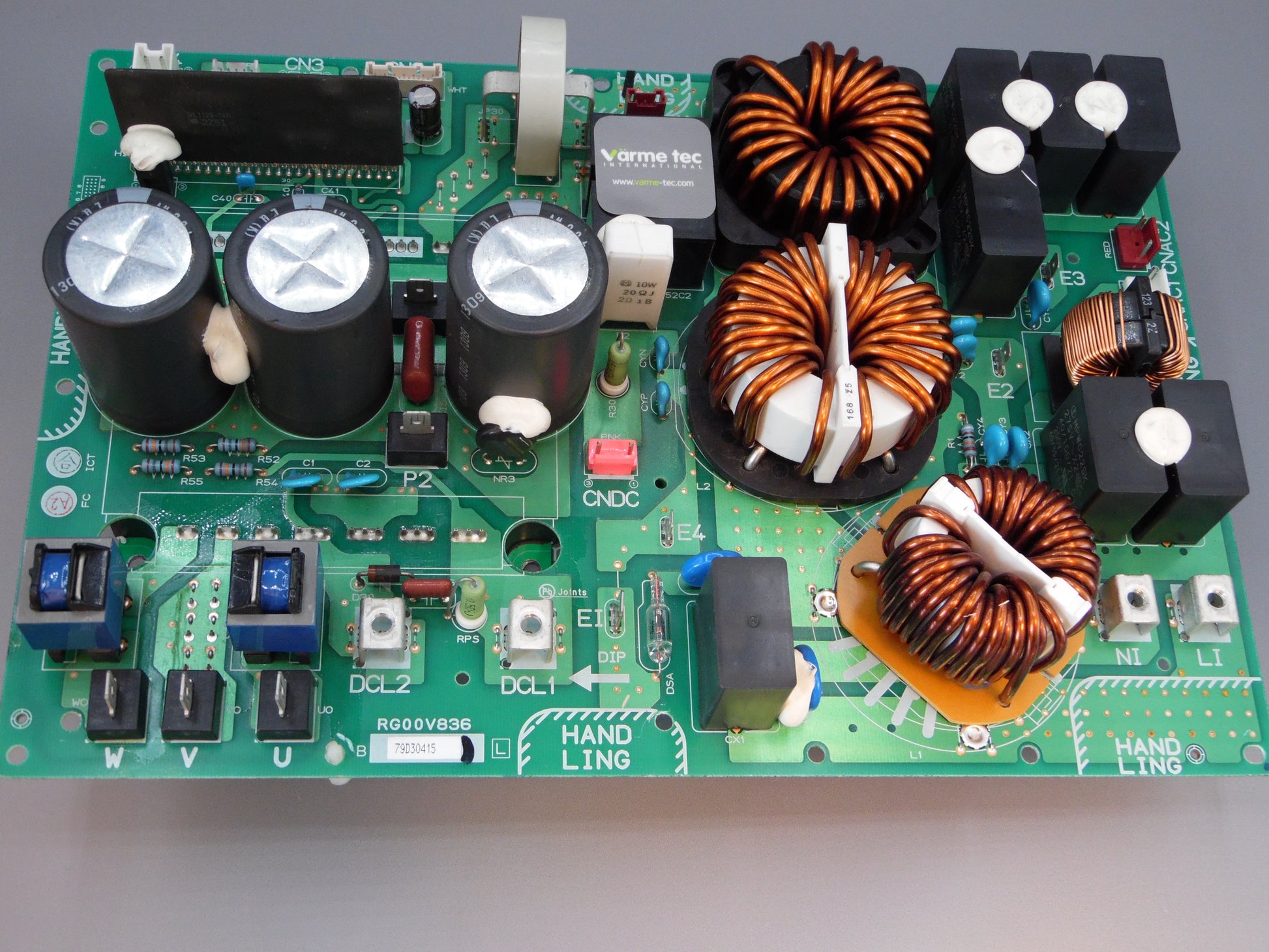

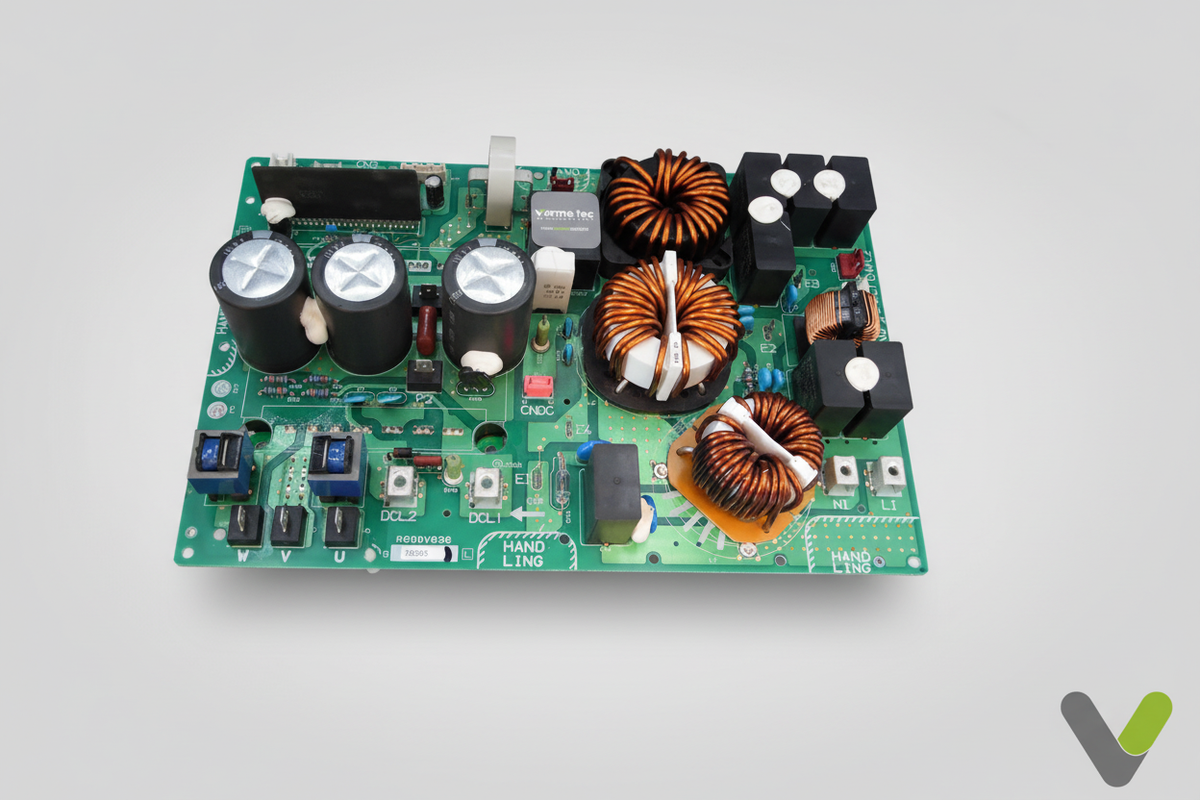

Mitsubishi Electric T7WAP0323 Power Circuit Board

Reconditioned power circuit board, part number 289270, manufactured by Mitsubishi Electric for compatible Ecodan outdoor heat pump units. The board manages incoming power and supplies the inverter compressor and outdoor fan circuits.

Product Details

• Board reference: T7WAP0323
• Part number: 289270
• Product type: Power PCB / power circuit board
• Condition: Reconditioned
• Manufacturer: Mitsubishi Electric

Recorded Compatibility

• Mitsubishi Electric Ecodan PUHZ-W50VHA2
• PUHZ-W50VHA2-BS
• PUHZ-W50VHA2R1
• PUHZ-W50VHA2R1-BS

A failed power board may be associated with shutdowns, compressor start-up problems or communication faults. Power must be fully isolated before servicing, and jumper-switch settings should be matched to the original board. Installation by a qualified HVAC professional is recommended.
