Nibe Connection Card 718288
Nibe Connection Card 718288
Couldn't load pickup availability
Description

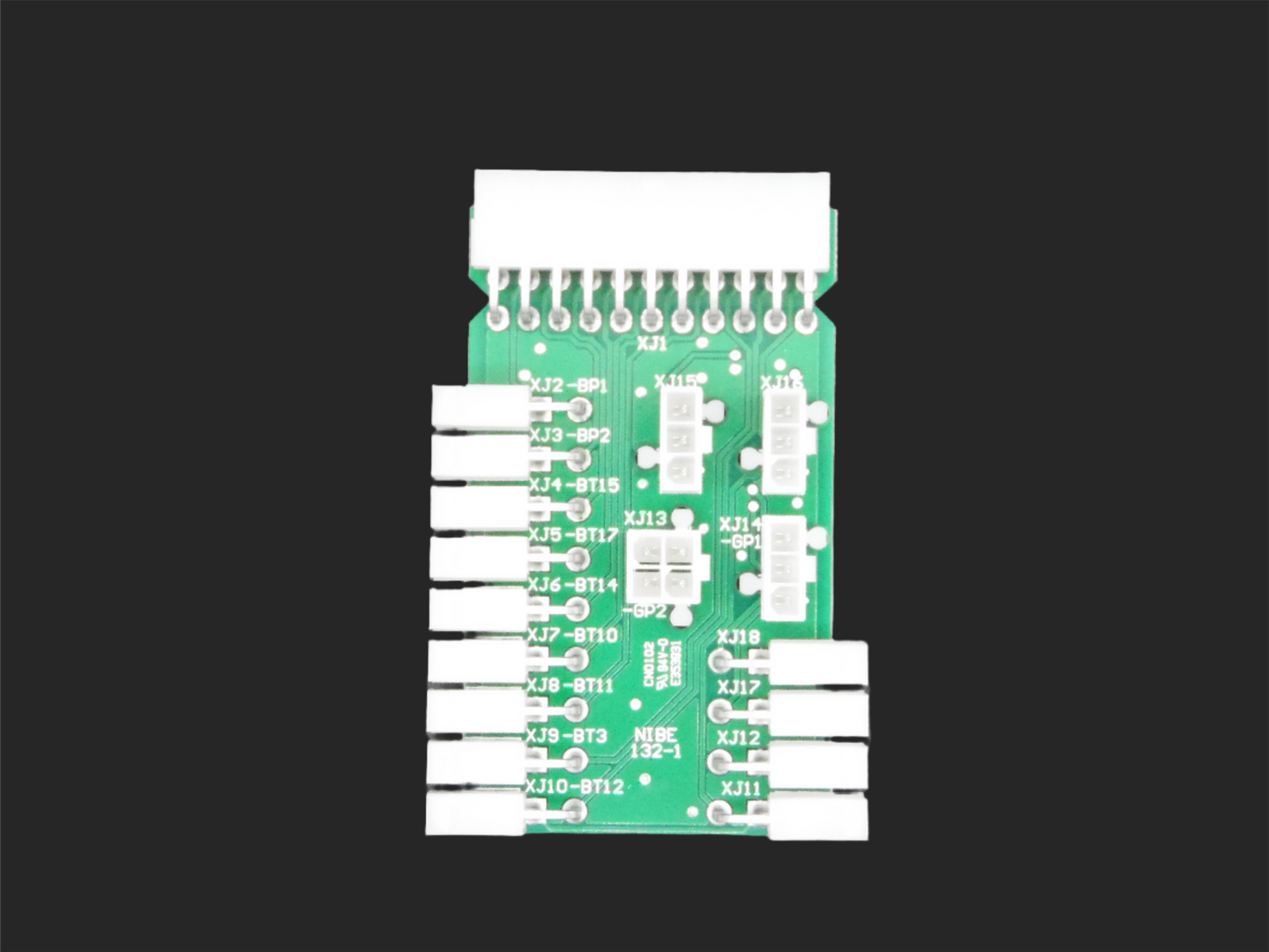

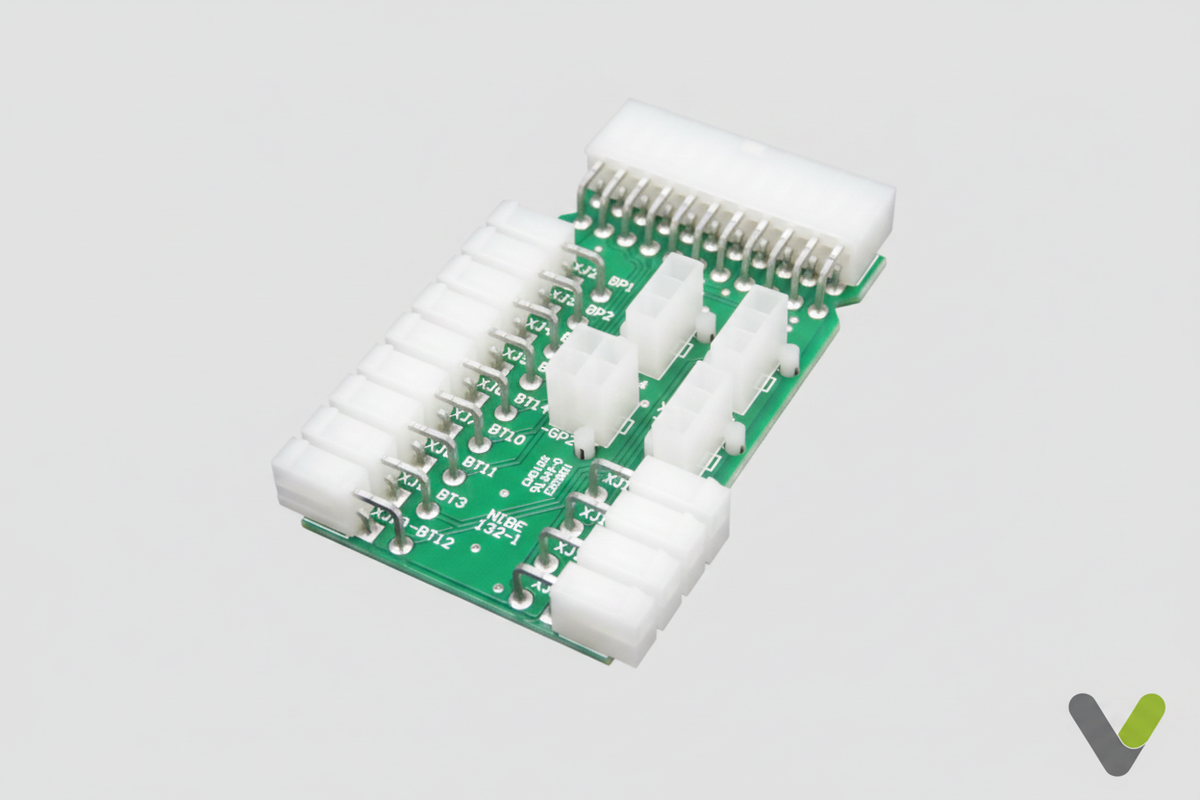

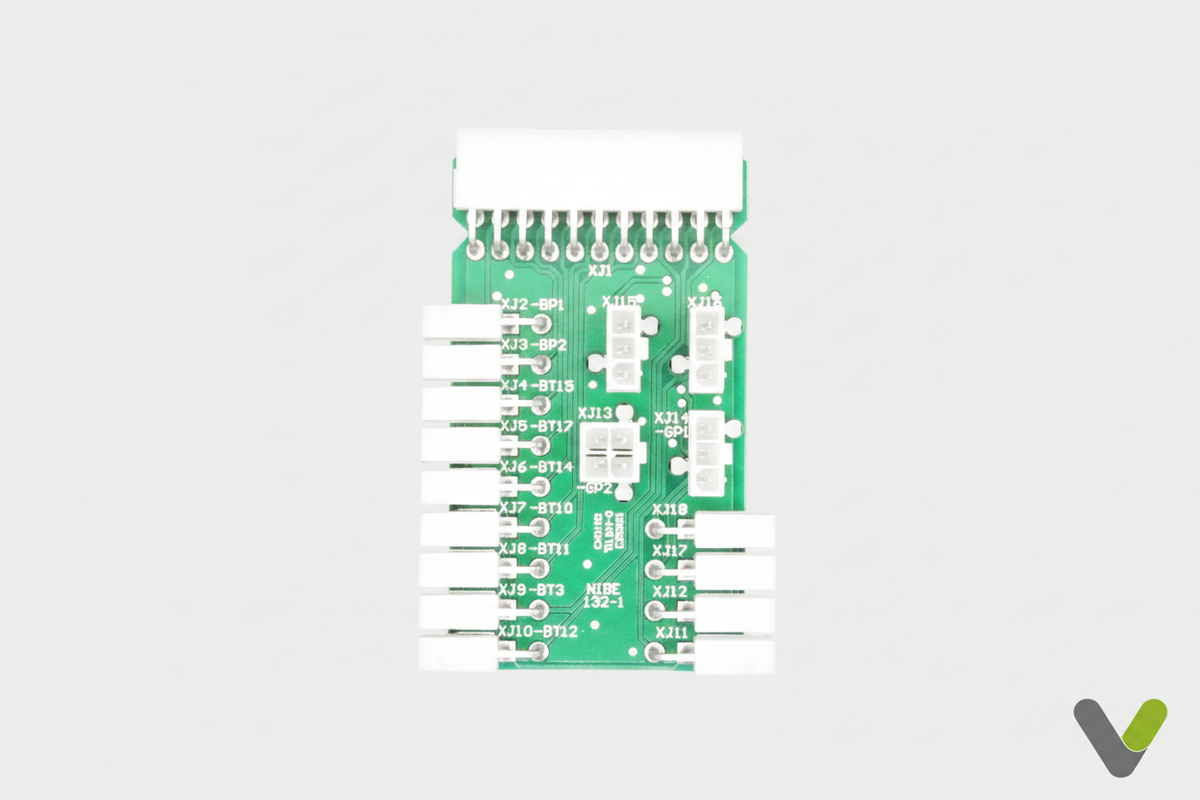

The Nibe Connection Card (Part Number: 718288) is an internal interface and sensor signal routing board mounted inside the cooling/compressor module of modern Nibe heat pumps.
It acts as a terminal hub that routes crucial diagnostic, safety, and sensor readings back to the main CPU board.
Key Specifications & Functions
| Feature | Details |
| Part Number (SKU) | 718288 |
| Primary Function | Multi-channel sensor and switch signal routing interface |
| Monitored Inputs |
• Temperature sensors • Low Pressure (LP) & High Pressure (HP) safety switches • Brine pump & heat medium pump control signals |
| Location | Installed inside the sealed cooling/compressor cabinet |
Compatible Nibe Models
This connection card is used extensively across Nibe's flagship ground-source, water-source, and exhaust-air heat pumps, including:
-
Exhaust Air Heat Pumps: Nibe F750
-
Ground Source / Water Heat Pumps: Nibe F1145, F1155, F1245, F1255, F1345, F1355 (various kW models)
Common Failure Symptoms
The connection card can fail due to power surges or moisture/brine leaks dropping down from pipework connections directly above the module housing. Typical symptoms include:
-
Continuous or intermittent High Pressure (HP) or Low Pressure (LP) safety alarms
-
Persistent sensor read errors or unrealistic temperature values on the display module
-
Communication loss between the controller and the circulation/brine pumps
To verify successful replacement of the card: turn on the main breaker and check the display screen. The unit should clear active HP/LP alarms, and live temperature readings from the refrigerant circuit should display valid values without error codes.
