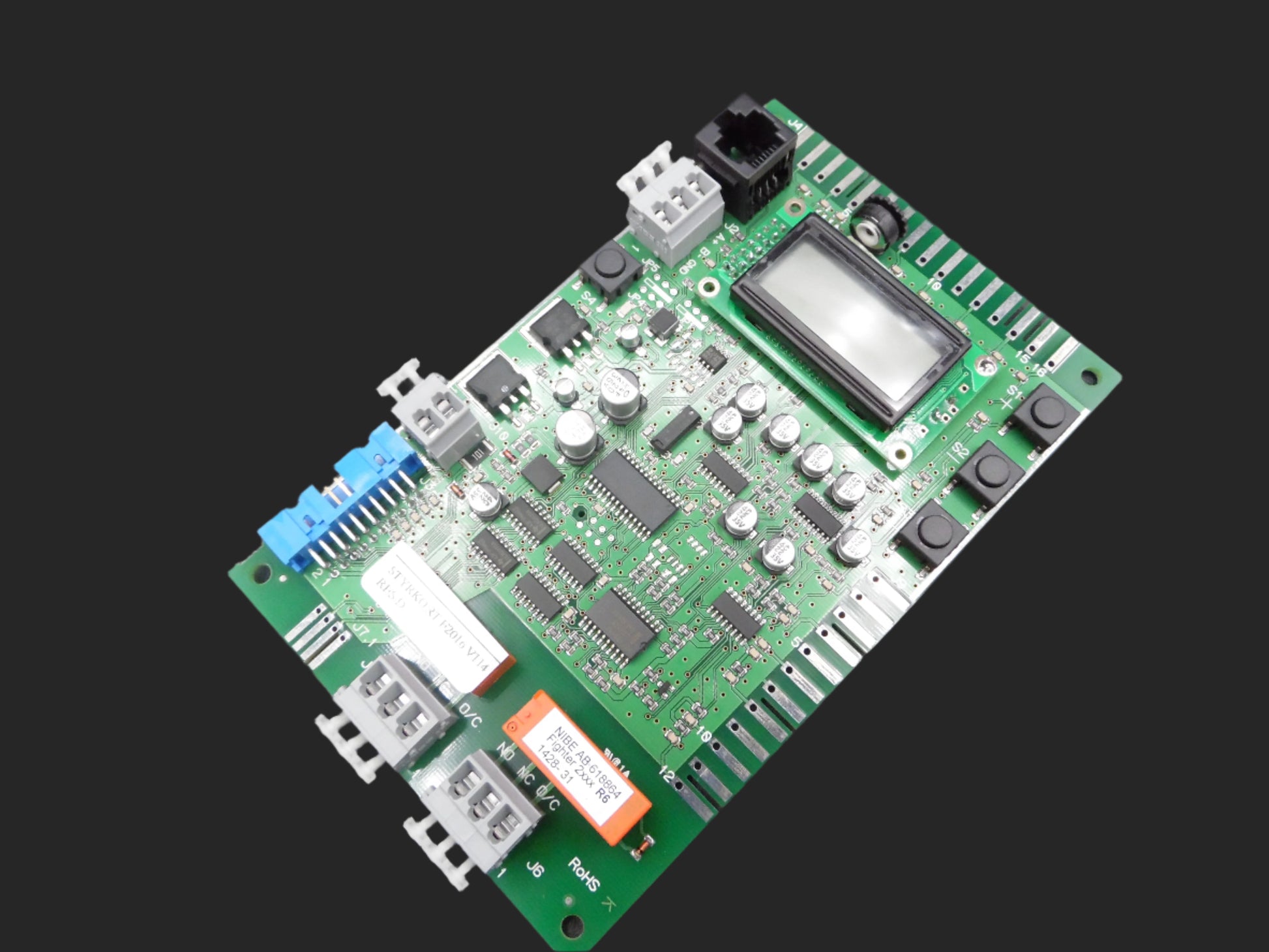

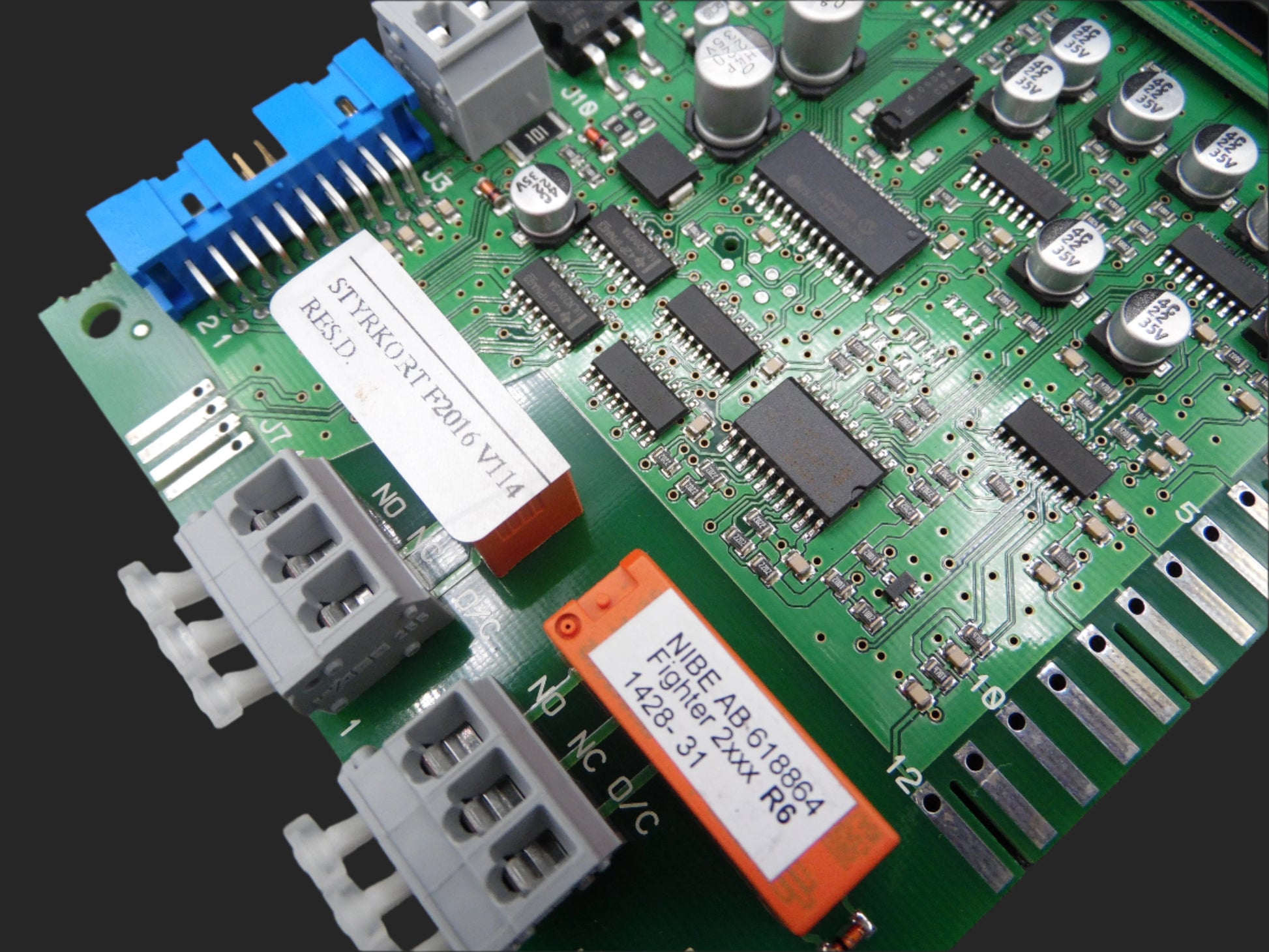

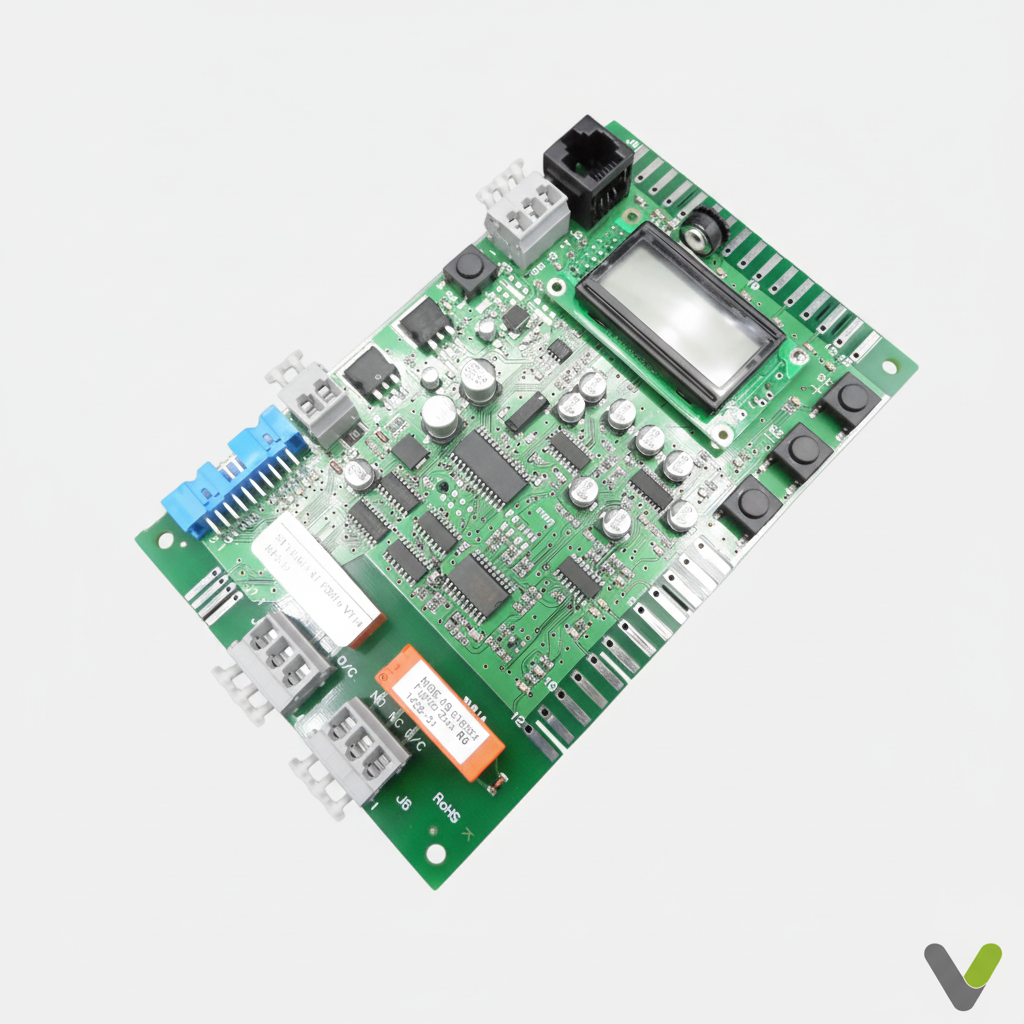

Name: CPU Control Card (V114)
Part Number: 718154
Component Type: Central Processing Unit PCB
Function:
The CPU Card V114 is the main logic and control board for the Nibe F2016 heat pump. It manages operational sequencing, communication, data processing, and safety functions—ensuring reliable and efficient operation of all system components.

✅ System Compatibility

• Exclusively designed for:
  Nibe F2016 – all kW variants (typically 6kW and 8kW models)

This card is model-specific and not interchangeable with other F-series units like F2015 or F2025 due to differences in control protocols and firmware.

🔧 Key Functions & Features

🎛️ Core System Management

• Processes sensor inputs (temperature, pressure, flow) to regulate heating operation

• Controls:

  • Compressor modulation

  • Fan speed

  • Defrost cycles

  • Immersion heater activation (if applicable)

📡 Communication & Monitoring

• Handles internal system communication and external interfaces (e.g., SMO controller)

• Facilitates fault logging and diagnostics for maintenance and service

⚙️ Hardware Attributes

• Rugged design for continuous operation in outdoor environments

• Pre-programmed microcontroller with dedicated firmware for F2016 logic

• Features connectors for sensor harnesses and relay interfaces

🛠️ Installation Notes

📦 Included:

• V114 CPU Card PCB
