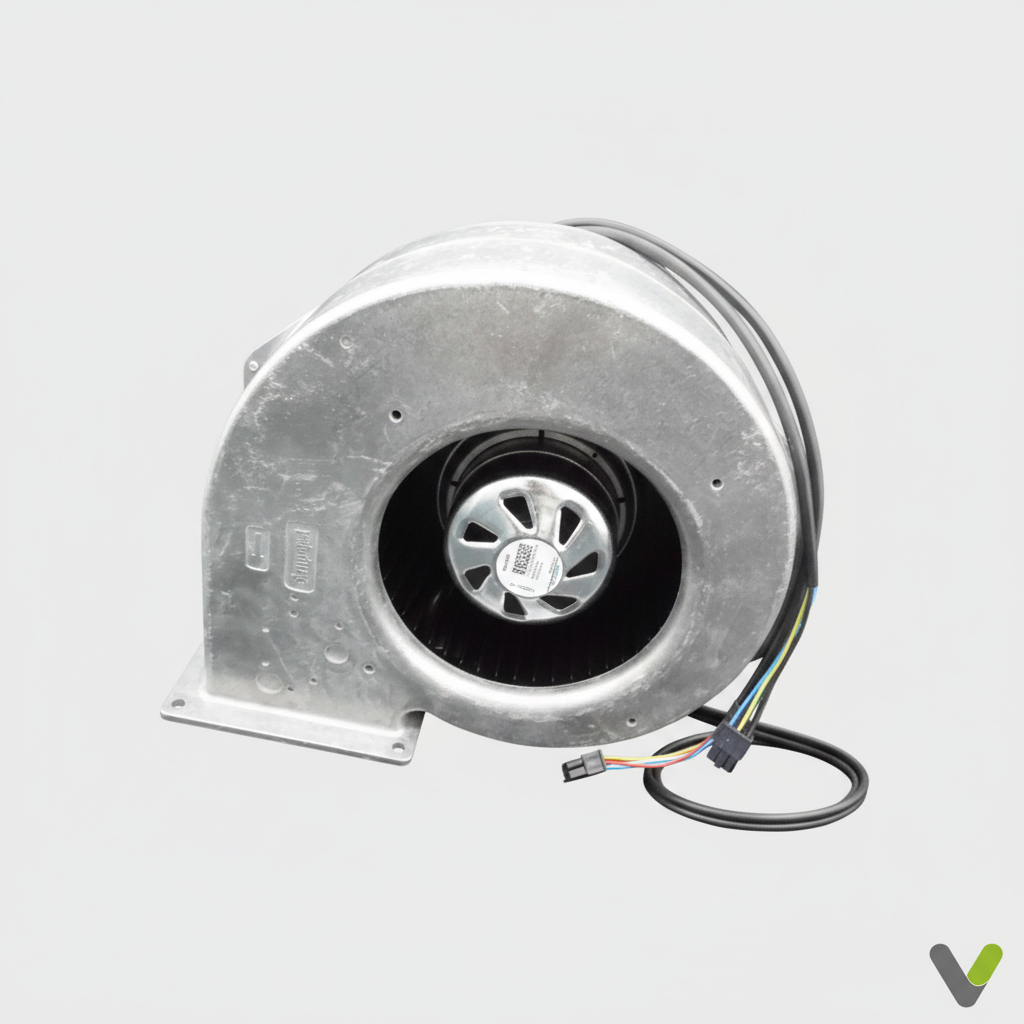

• Nibe F730 F750 Fan - Product Image

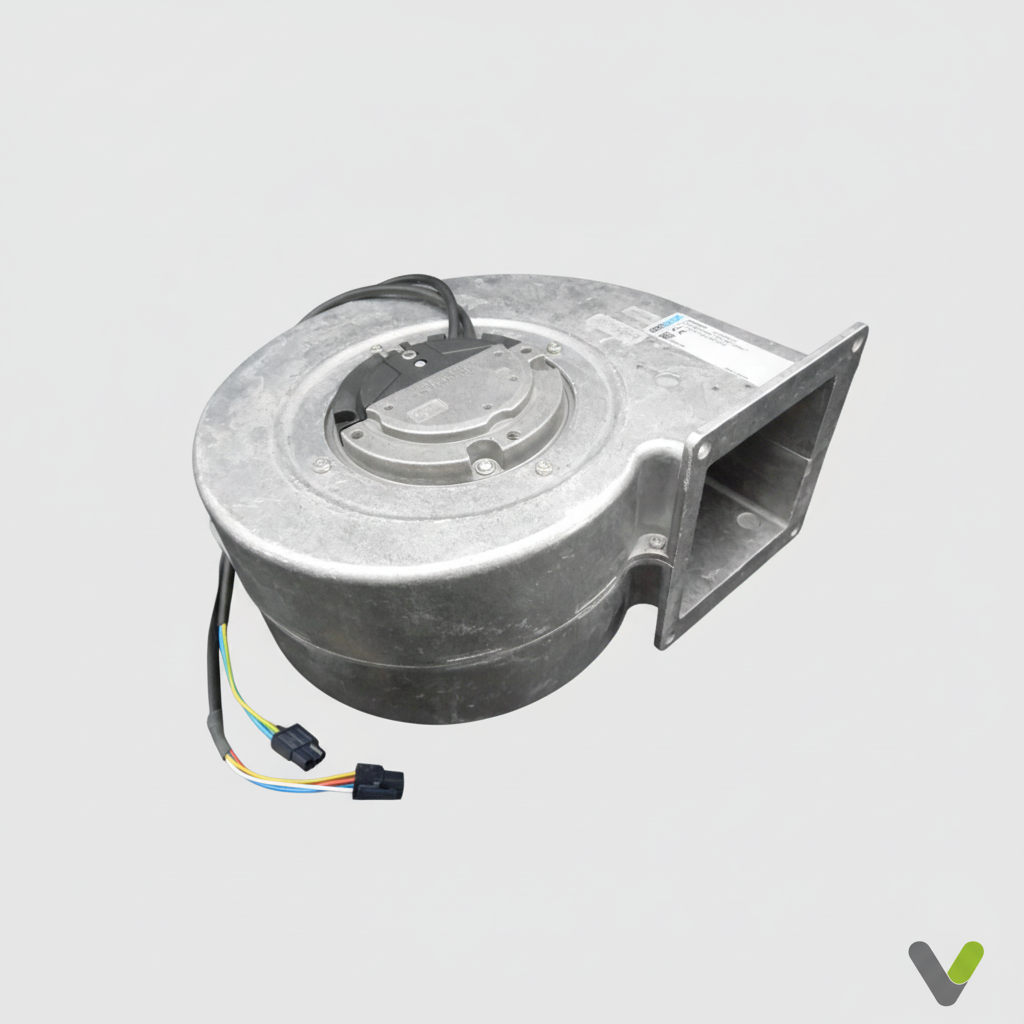

  • Nibe F730 F750 DC Fan Assembly 060249 - rear angle showing motor cover and wiring loom
1 2

Nibe

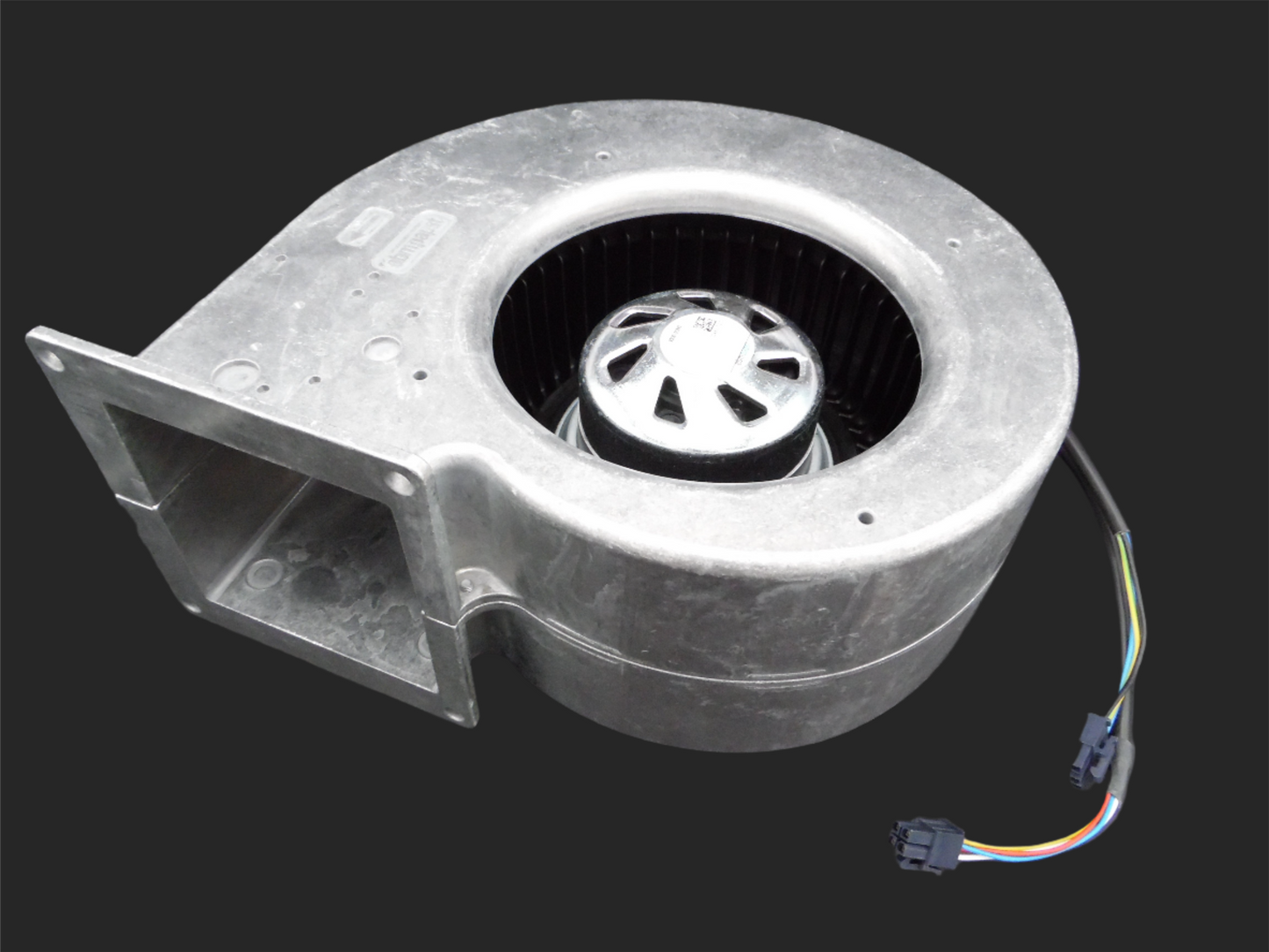

Nibe F730 / F750 DC Fan Assembly 060249

Nibe F730 / F750 DC Fan Assembly 060249

£889.79
Shipping calculated at checkout.
Ask a question

Description

The NIBE Complete DC Fan Assembly (Part No. 060249) is the primary exhaust air fan designed for NIBE F730 and NIBE F750 exhaust air heat pumps. It supersedes older NIBE part numbers 818204 and 718451.

Key Specifications & Function

  • Role: Drives airflow across the evaporator heat exchanger, enabling the heat recovery process and maintaining required ventilation rates.

  • Motor Type: Variable-speed DC fan complete with housing.

  • Wiring Setup: Utilizes dual multi-pin electrical harness connections to the main controller PCB—one plug for 230V DC power and one for PWM speed control.

Common Symptoms of a Faulty Fan Assembly

Electrical Safety Hazard

Always isolate main power to the heat pump at the external switch before touching internal wiring or servicing the fan housing.

  • Low Pressure (LP) Alarms: Reduced or stopped airflow causes the refrigerant evaporator to drop in temperature, triggering an LP alarm or stopping the compressor cycle.

  • Noisy Operation / Grinding: Bearing wear produces high-pitched whining, rumbling, or mechanical friction noises.

  • Fan Failure / Zero RPM Alarm: If the control board loses the tachometer feedback signal, the heat pump locks out airflow-dependent operation.

  • Vibration: Unbalanced impellers caused by dust build-up or degraded motor mounts.

1.Inspect & Clean Filters:Step 1.

Check if the main air filter is clogged. Heavy blockage restricts airflow, causing the fan to run at maximum RPM, increasing wear and noise. Clean or replace the filter first.
2.Check Power & Signal Wiring:Step 2.

Isolate the unit power. Access the top/fan section of the heat pump and verify both fan harness plugs are firmly seated into the connection board with no signs of thermal damage.
3.Manual Spin Test:Step 3.

With the power isolated, spin the impeller by hand to check for mechanical resistance, grinding, or axis play in the motor bearings.
4.System Verification:Step 4.

Restore power. Navigate to the service menu on the display screen to test-run the fan manually and monitor the live RPM readout to ensure feedback signaling works.
