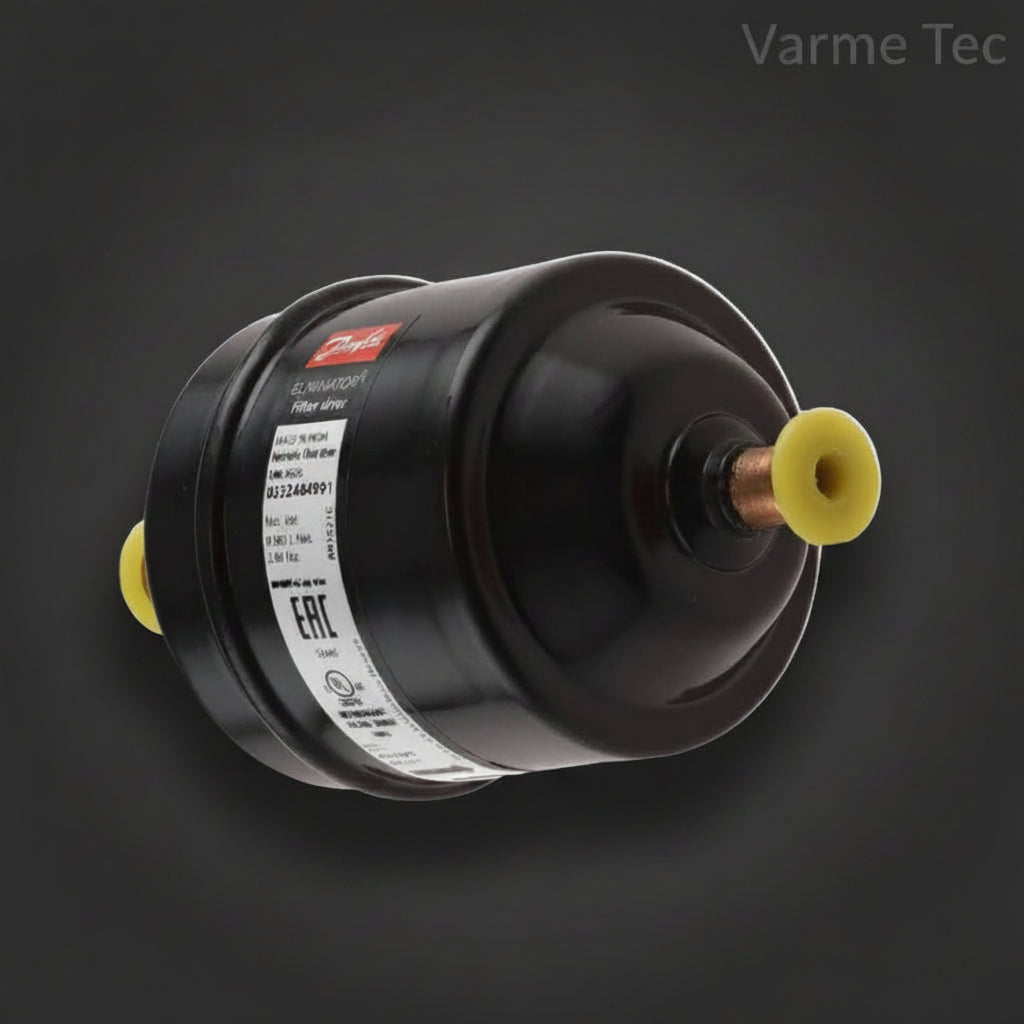

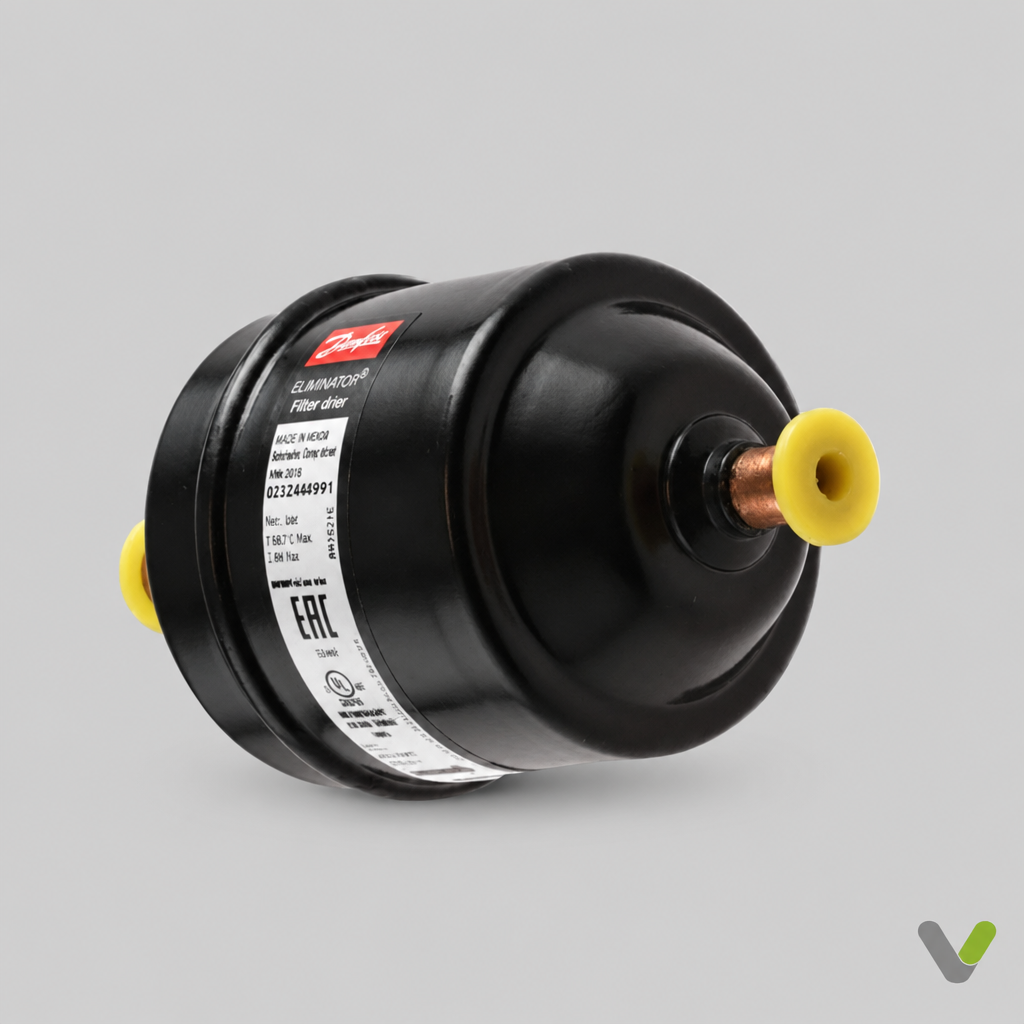

The Nibe part number 060376 ( 023z484991 ) filter drier used in the sealed refrigeration circuit of several Nibe heat‑pump models. It is a replaceable refrigerant-line component designed to remove moisture, acids, and contaminants from the system.

What the Nibe 060376 Filter Drier Is

A filter drier is a critical refrigeration‑circuit component that:

• Removes moisture from the refrigerant (preventing ice formation and corrosion).

• Traps contaminants such as metal particles and sludge.

• Protects the expansion valve from blockage.

• Improves long‑term reliability of the compressor and refrigerant circuit.

Nibe uses sealed, brazed‑type filter driers that must be replaced whenever the refrigerant circuit is opened.

Refrigerant type ( R407C or R410A )

Compatibility

Part 060376 is typically used in:

• Nibe F750


• Nibe F730 both 1x230v & 3x400v

When a Filter Drier Needs Replacement

You typically replace the filter drier when:

• The refrigerant circuit has been opened

• There has been a refrigerant leak

• Moisture contamination is suspected

• The expansion valve is being replaced

• The system shows repeated low‑pressure or superheat issues
