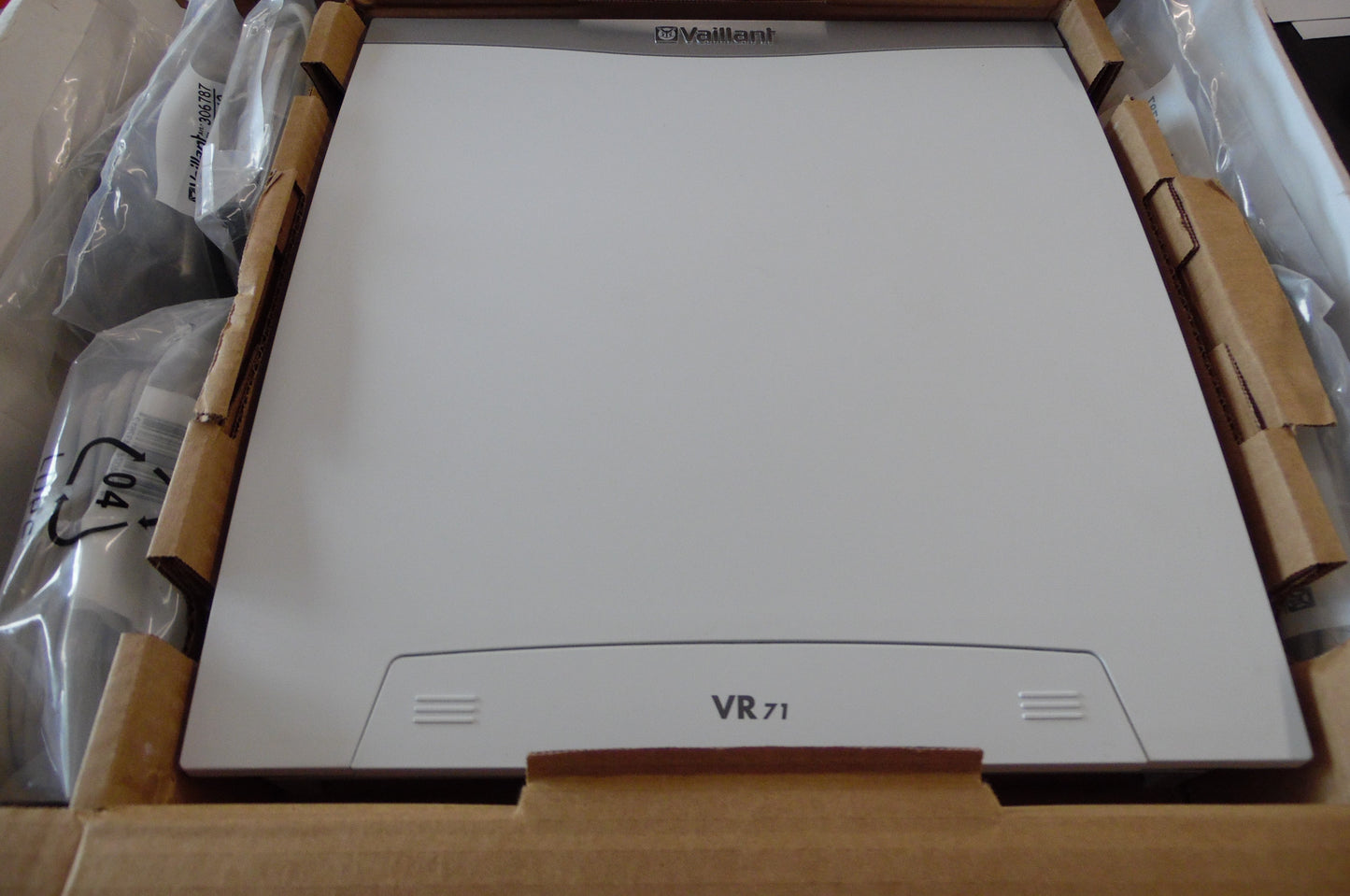

The Vaillant VR71 Wiring Centre (part number 0020184847) is a control module designed to enhance the functionality of Vaillant heating systems, particularly when used in conjunction with the VRC 700 or sensoCOMFORT controllers. It enables the management of up to three heating zones and one domestic hot water (DHW) zone, making it ideal for complex heating setups.

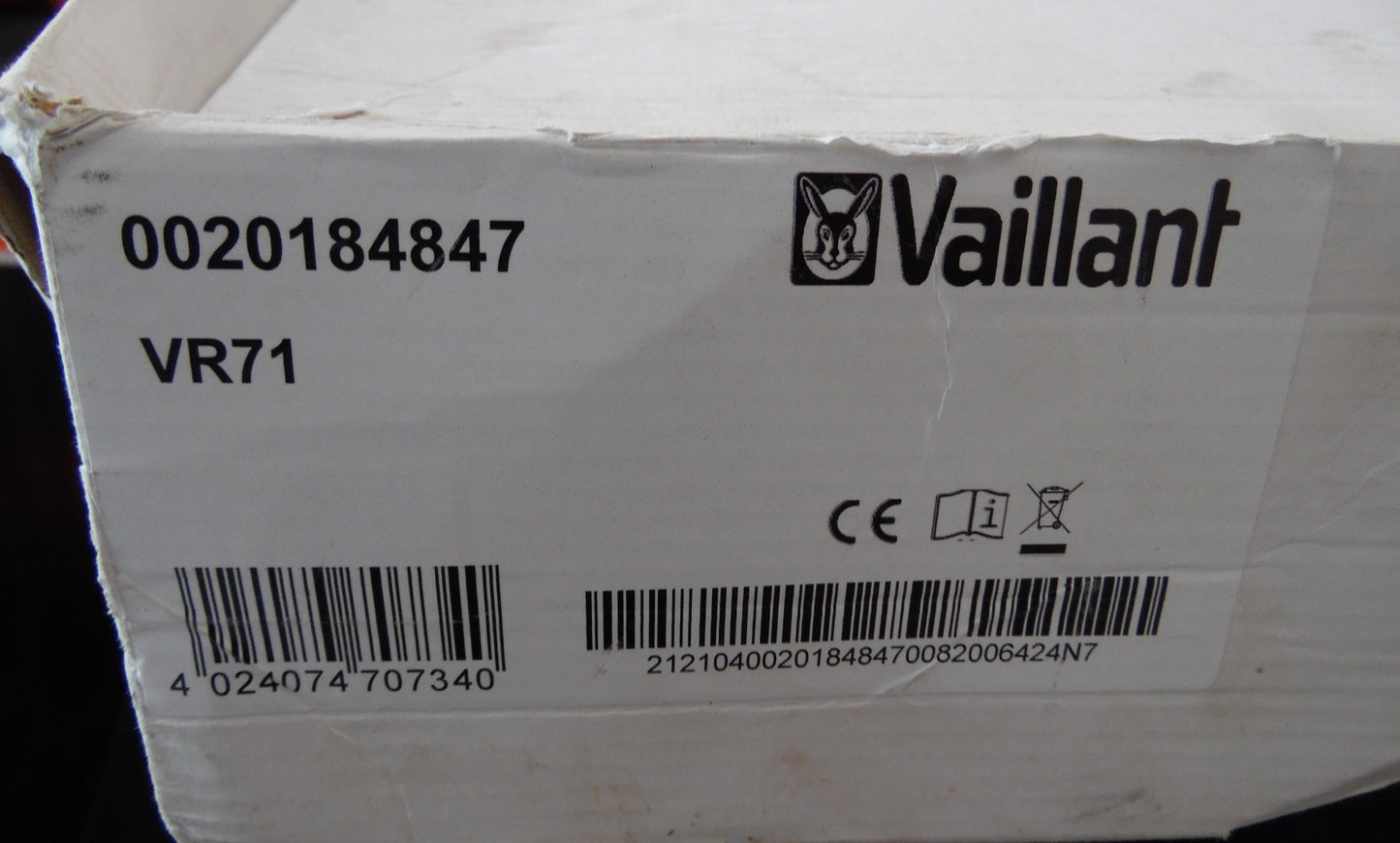

Please note box have been torn, parts are New & Un-Used

🔧 Key Features

• Multi-Zone Control: Supports up to three heating zones and one DHW zone, allowing for tailored heating management in different areas of a property.

• eBUS Communication: Utilizes Vaillant's eBUS protocol for seamless integration and communication with compatible controllers and boilers.

• Compatibility: Works with Vaillant ecoTEC boilers and aroTHERM heat pumps, ensuring broad applicability across Vaillant's product range.

• Wall-Mounted Design: Designed for easy wall installation, facilitating straightforward integration into existing heating systems.

📐 Technical Specifications

• Dimensions: Height: 293 mm; Width: 277 mm; Depth: 68 mm

• Weight: Approximately 1.1 kg

• Power Supply: 24V via eBUS

• Minimum eBUS Cable Cross-Section: 0.75 mm²

• Relay Outputs: 5

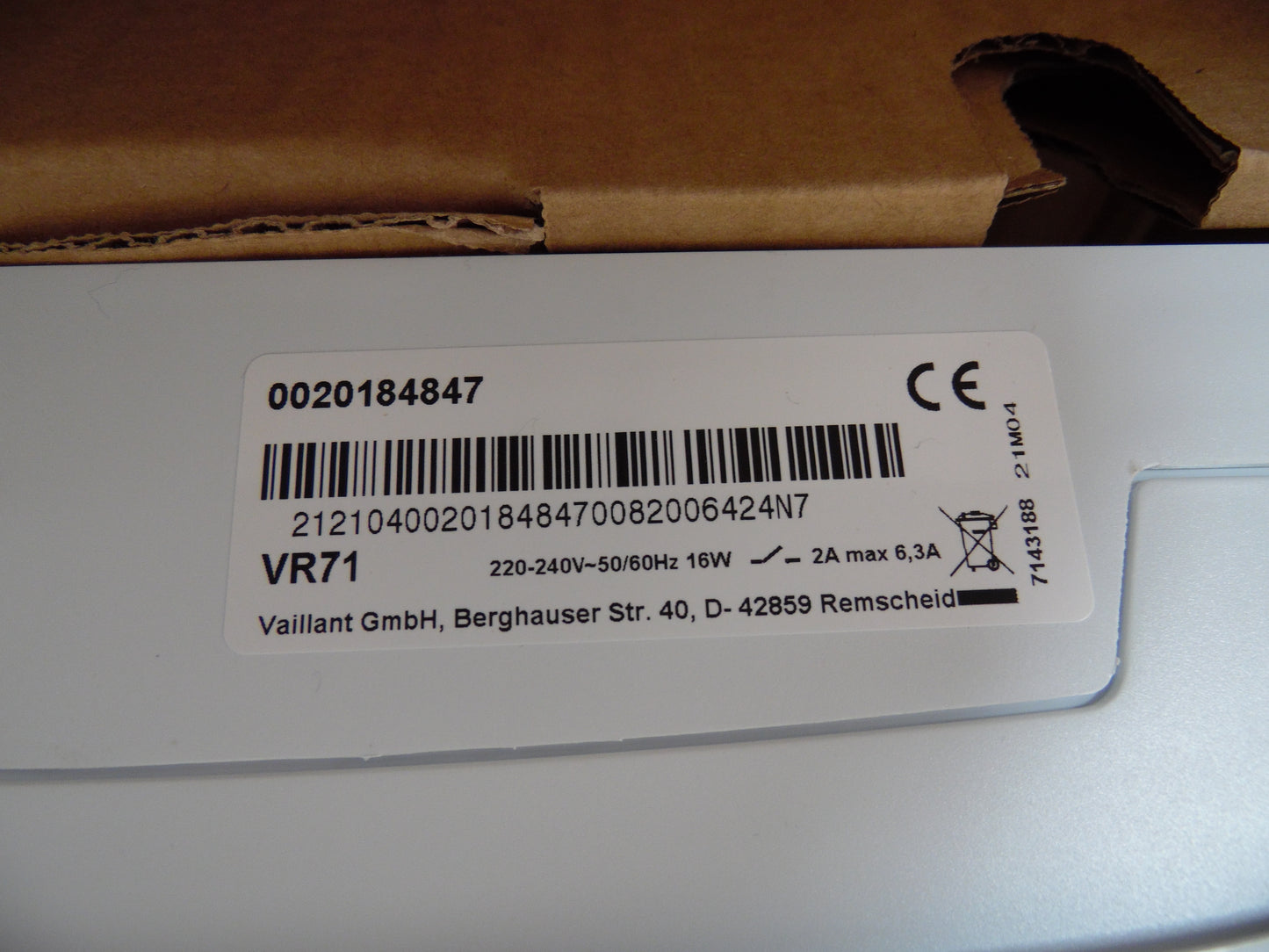

• Product Code: 0020184847
