Reconditioned ( HEAD ONLY )

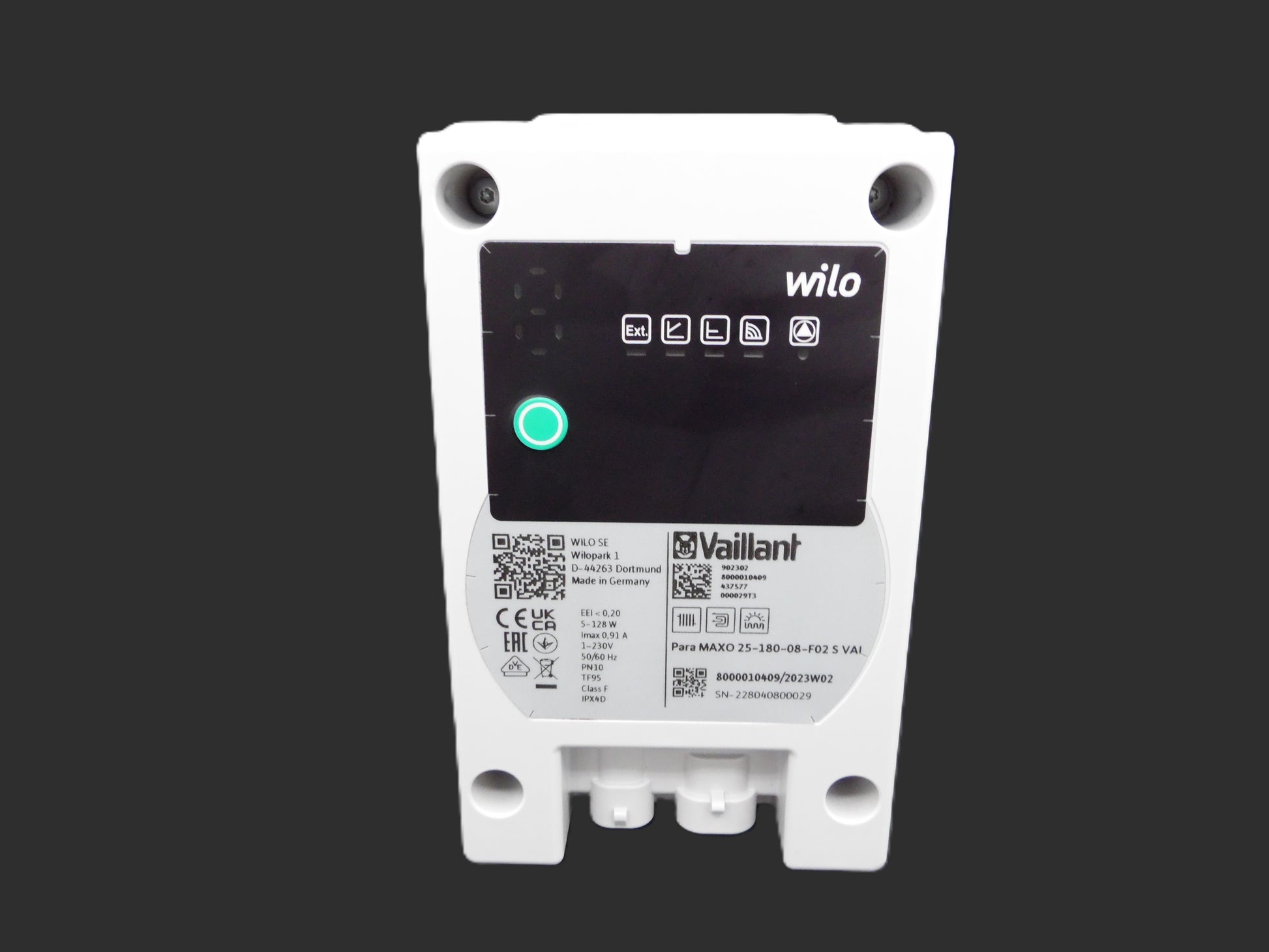

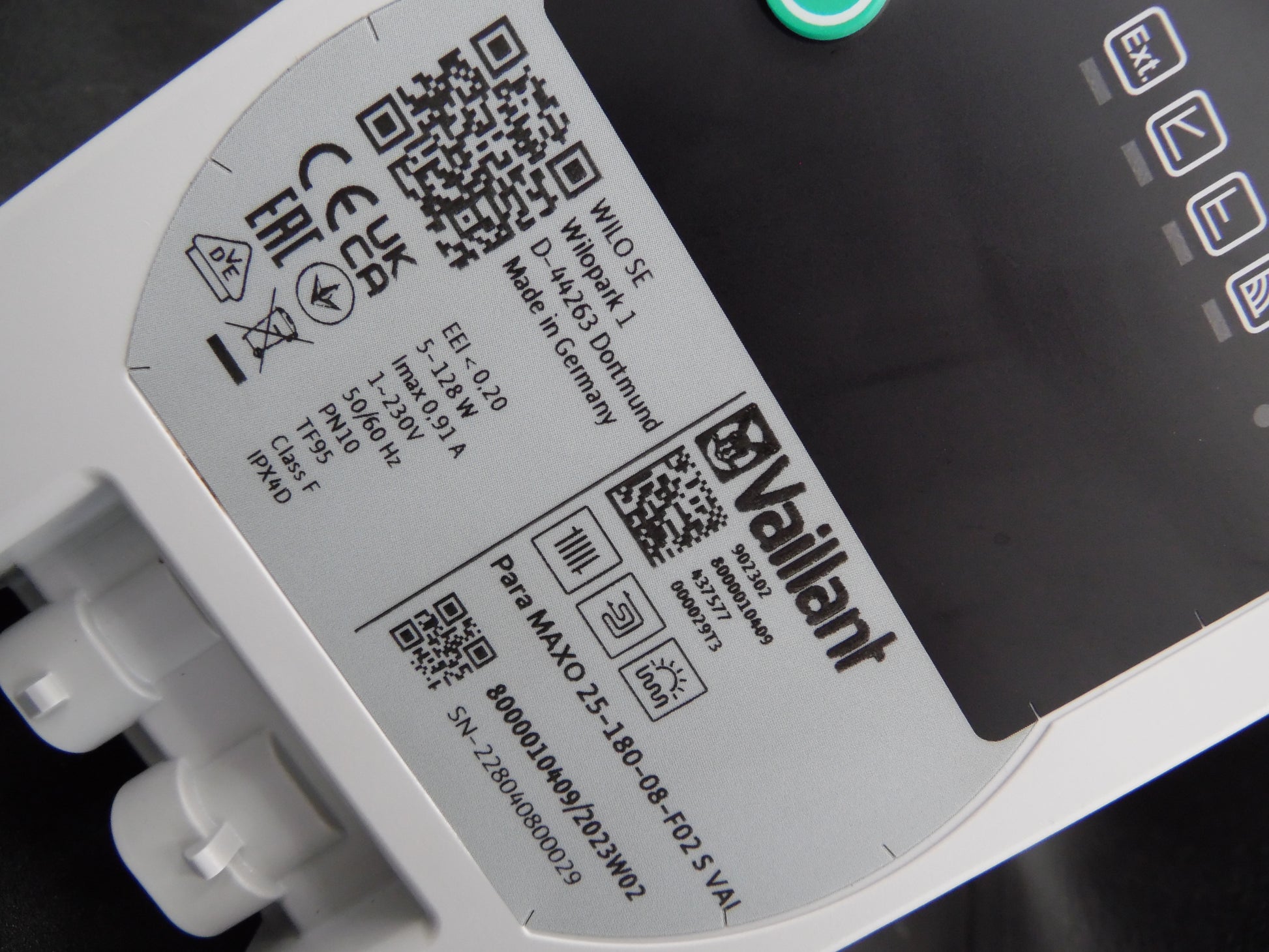

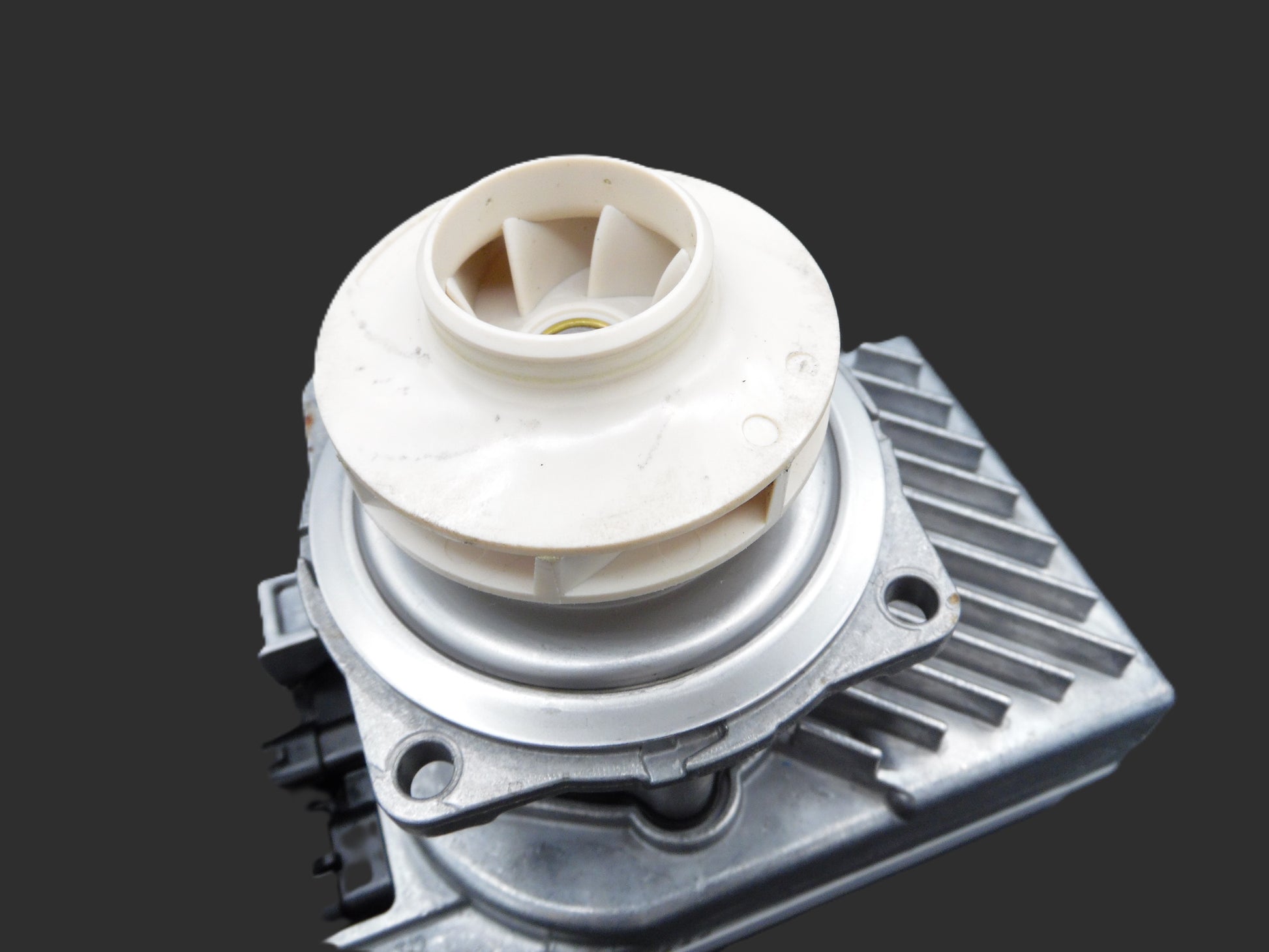

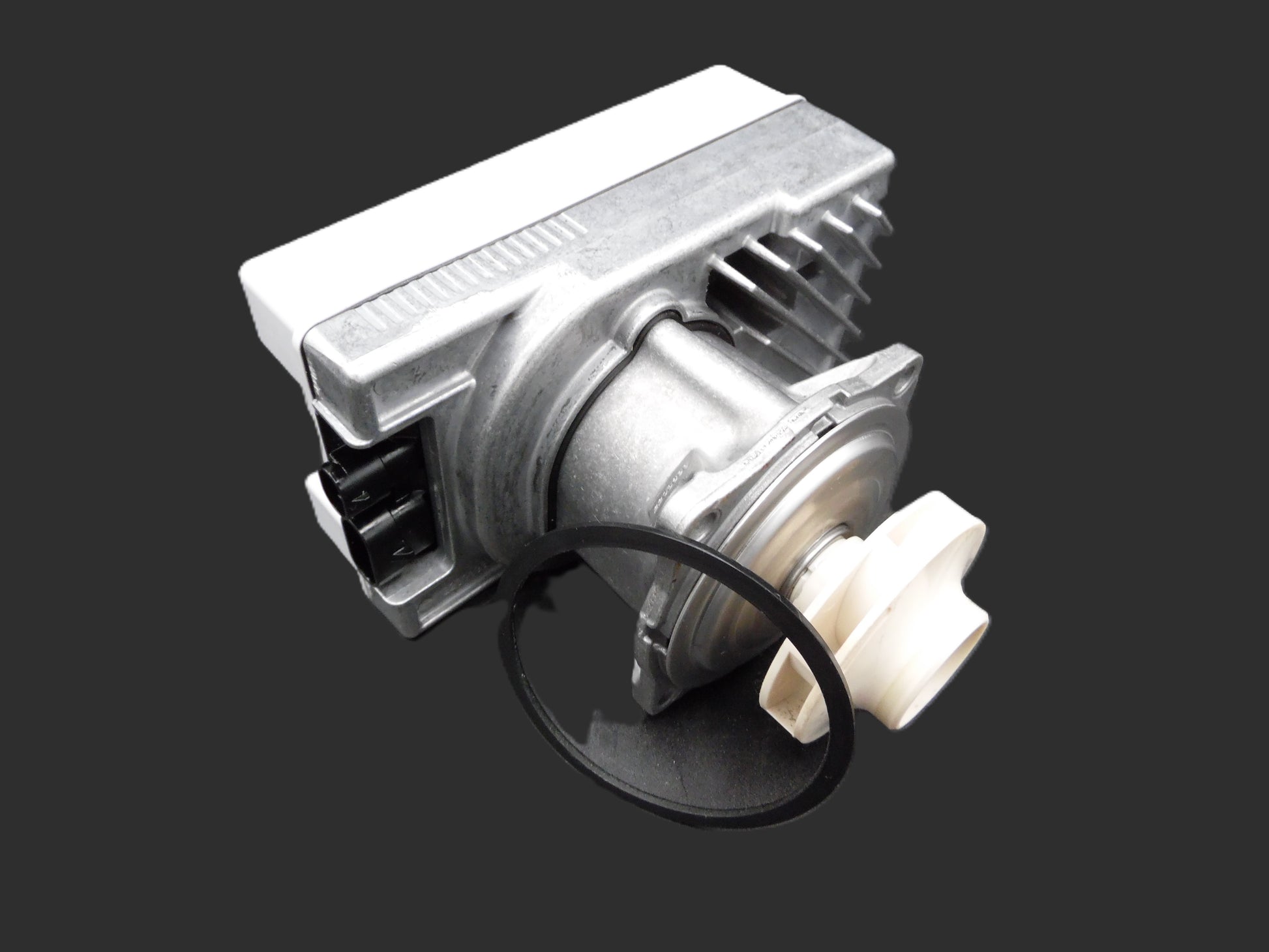

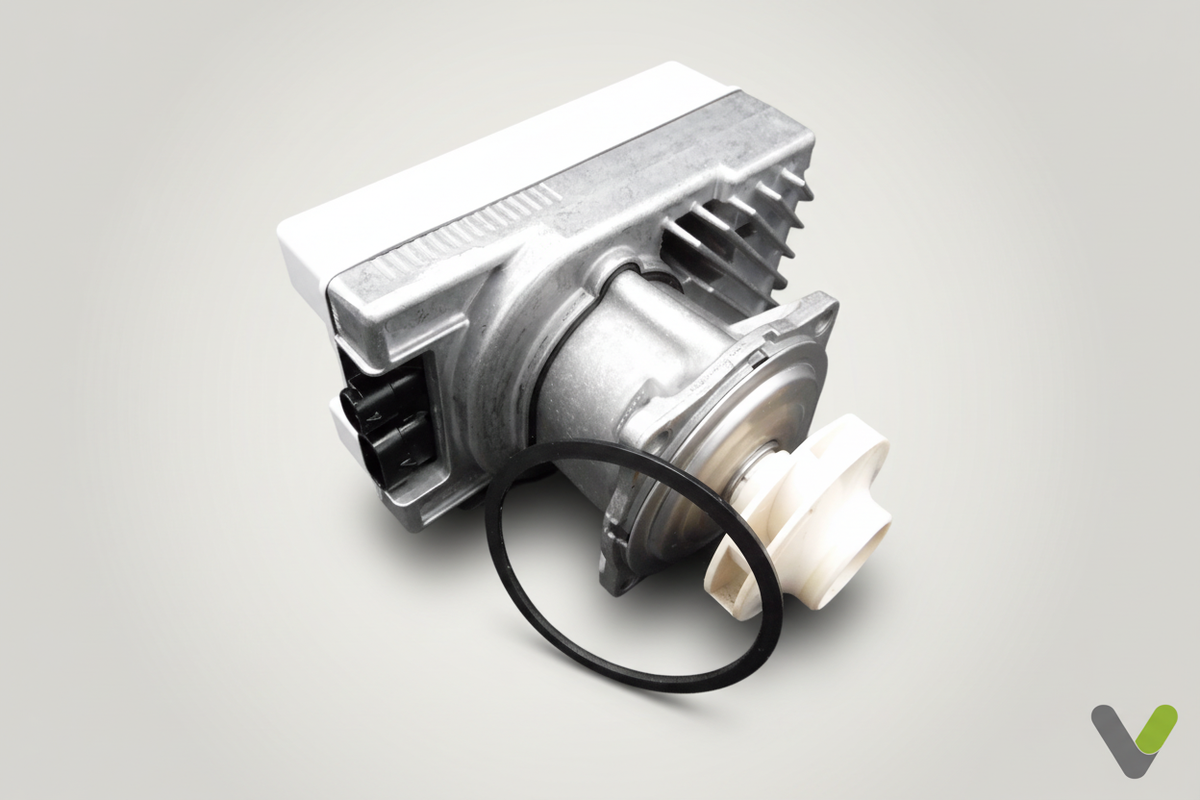

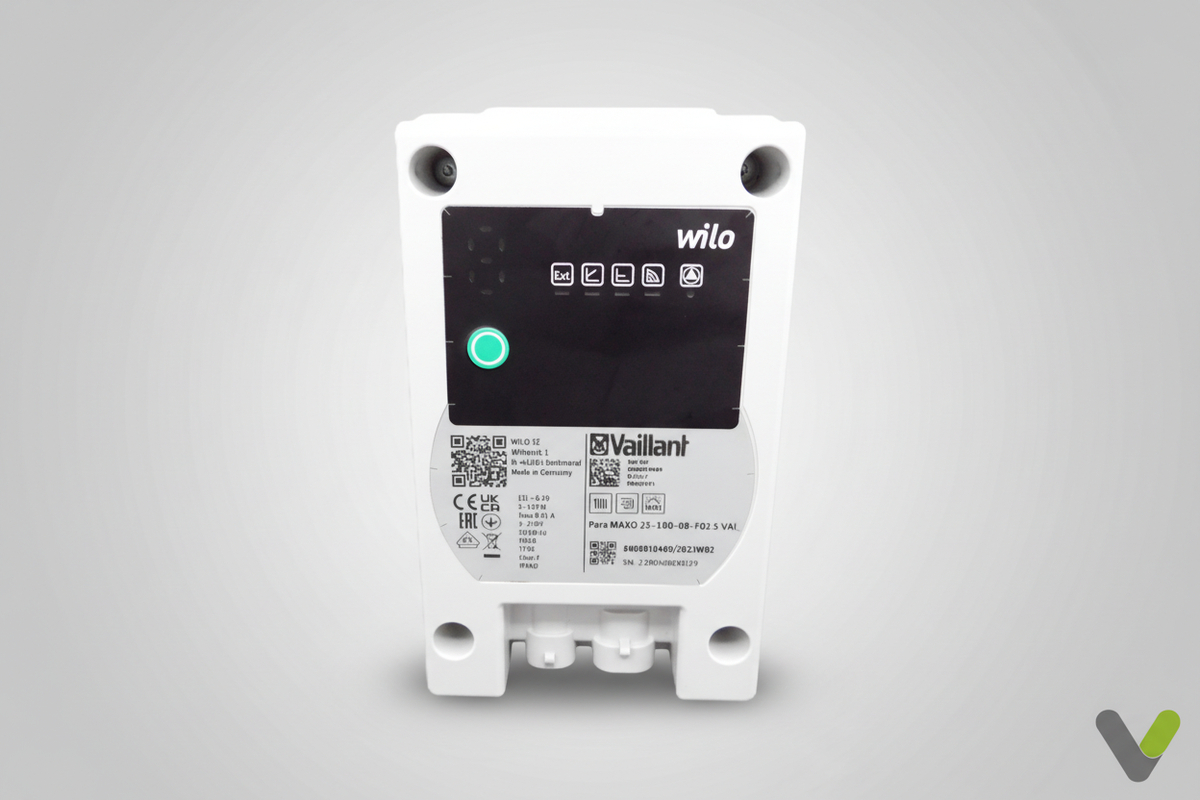

The Wilo Para MAXO 25-180-08-F02 S is a high-efficiency, electronically controlled circulator pump designed for heating and solar applications. It features a maintenance-free, glandless design with a blocking-current proof synchronous motor based on ECM technology and built-in electronic power control for variable differential pressure regulation.

• Reconditioned for like-new performance at a more affordable cost

Compatibility & Applications

The Wilo Para MAXO 25-180-08-F02 S is suitable for:

• IVT Greenline C5–C9 kW

• IVT Greenline HT C/E 6–17 kW

• IVT HA C/E 6–17 kW

• Bosch Compress EHP 6–17 kW

• Bosch Compress 3500 6–14 kW

• Vaillant Flexo Therm Exclusive

🔧 Technical Specifications

• Article Number: 2211051

• Max. Head (Hₘₐₓ): 8.2 meters

• Max. Flow Rate (Qₘₐₓ): 9.5 m³/h

• Operating Pressure: Up to 10 bar

• Fluid Temperature Range: -20 °C to +110 °C

• Ambient Temperature Range: -20 °C to +70 °C

• Energy Efficiency Index (EEI): ≤ 0.20

• Power Supply: 1~230 V ±10/-15%, 50/60 Hz

• Rated Power (P₂): 90 W

• Max. Power Consumption (P₁ₘₐₓ): 128 W

• Max. Speed: 3500 rpm

• Protection Class: IPX4D

• Insulation Class: F
