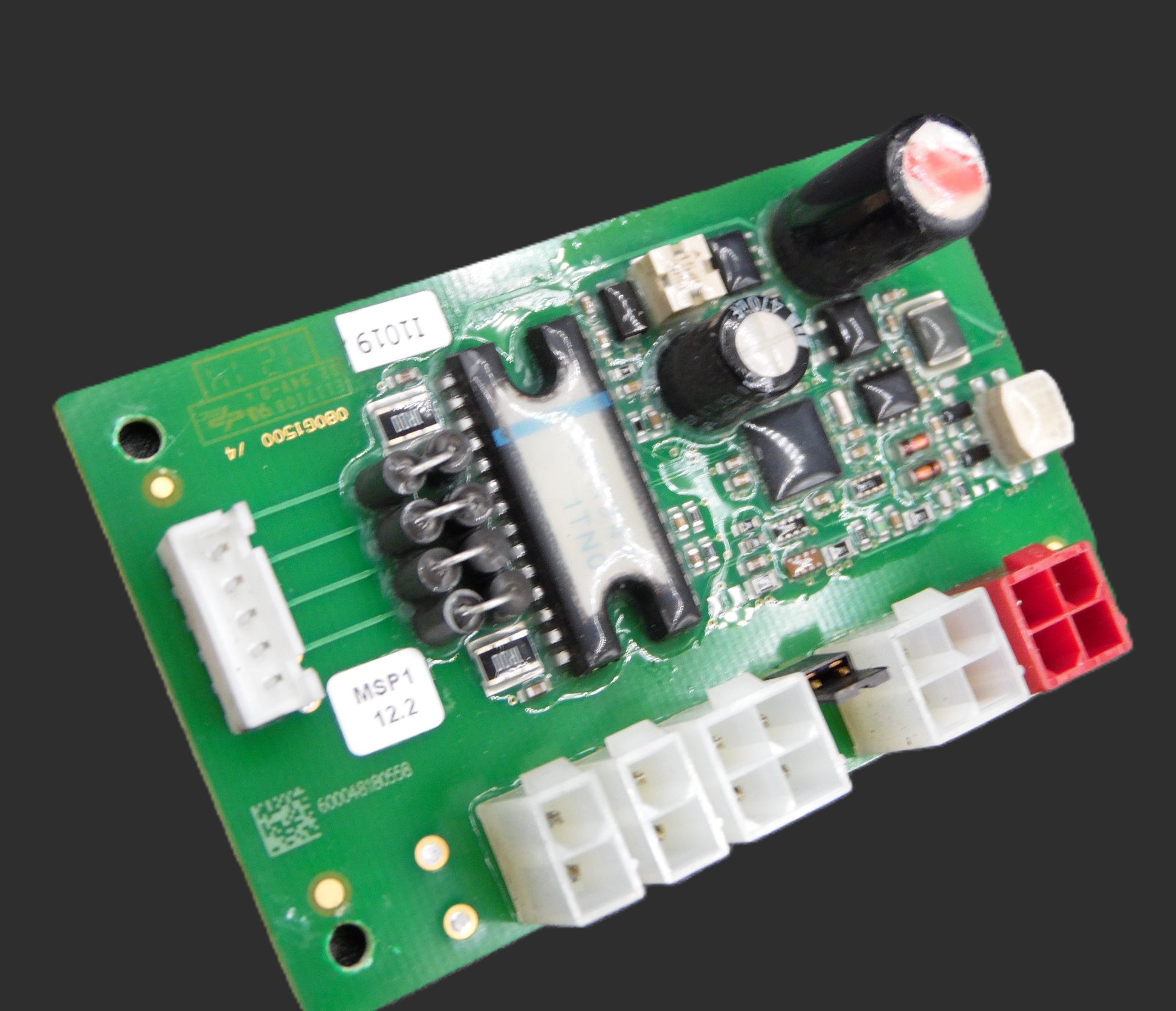

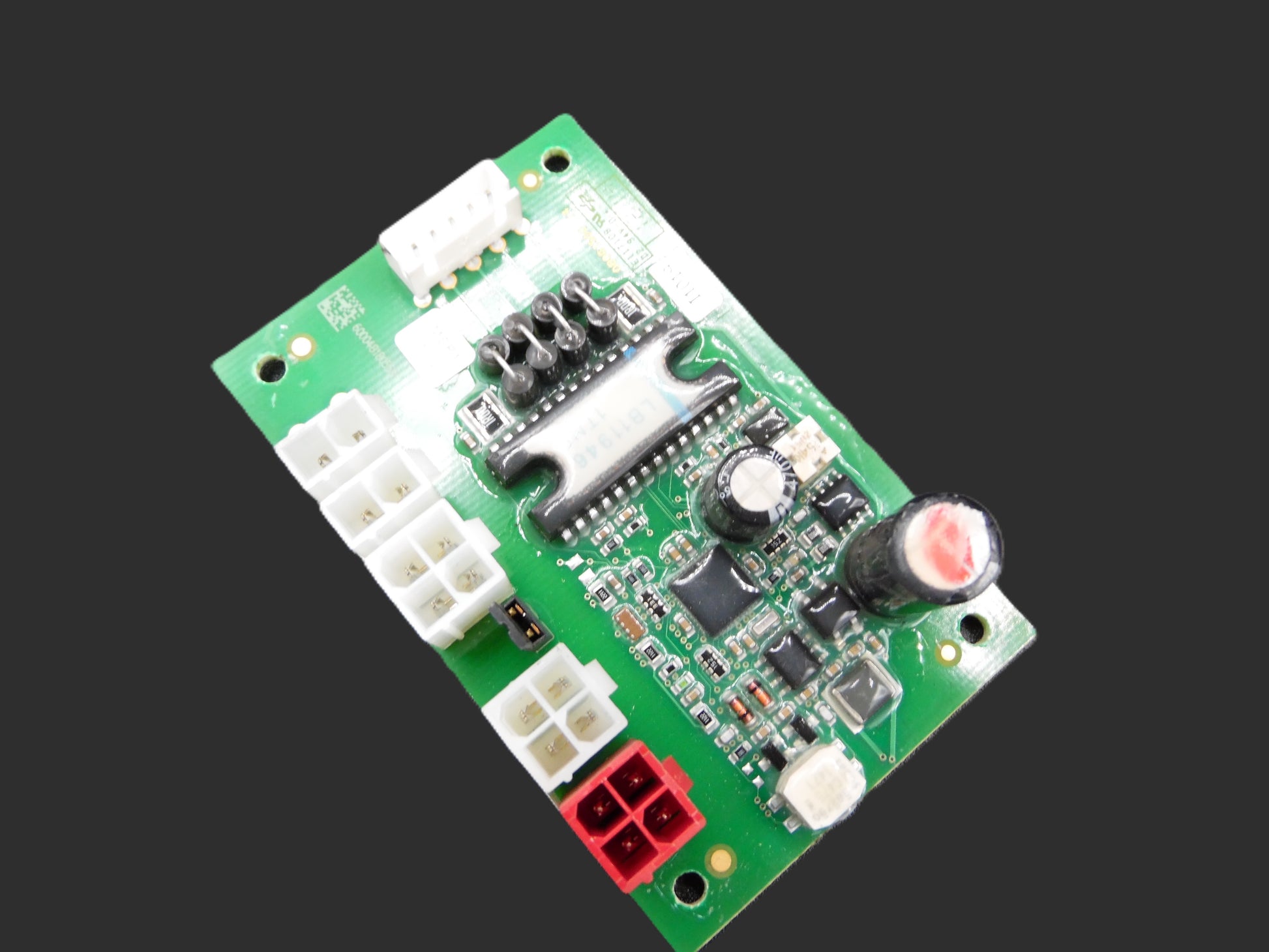

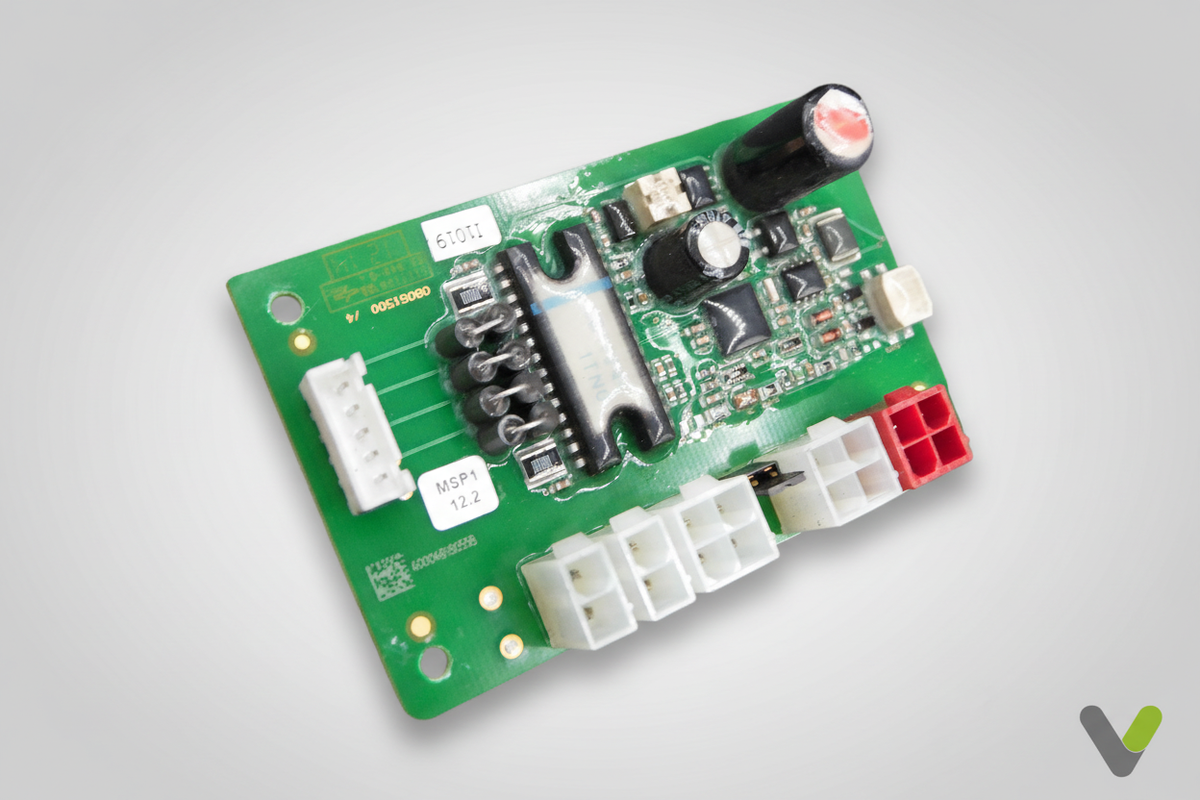

Danfoss EIM 336 Superheat Controller 080G1002

Reconditioned superheat controller for electronic expansion valves in refrigeration, air conditioning and heat pump systems.

Product Details

• Part number: 080G1002
• Model: EIM 336
• Product type: Superheat controller for stepper motor electronic expansion valves
• Function: Controls the electronic expansion valve to hold superheat at the minimum stable value, so the evaporator is used efficiently and the compressor is protected. It also limits suction pressure through the MOP function, supports evaporator defrost cycles, and can act as a valve driver for manual valve positioning over Modbus
• Inputs and outputs: 3 analogue inputs, 1 digital input, no analogue outputs
• Communication: Modbus RS485 RTU
• Ambient temperature range: -25 °C to +60 °C
• Enclosure rating: IP00, must be installed inside a protected cabinet
• Approvals: CE, EAC and RoHS compliant
• Condition: Reconditioned
• Brand: Danfoss

Applications

• Commercial and industrial refrigeration systems
• Heat pumps
• Air conditioning units
• Any system using electronic expansion valves

There is no built-in display, so configuration and monitoring are done over Modbus or with external tools, and installation should be carried out by a qualified technician. Check the model, connector arrangement and part number against the existing controller before ordering.
