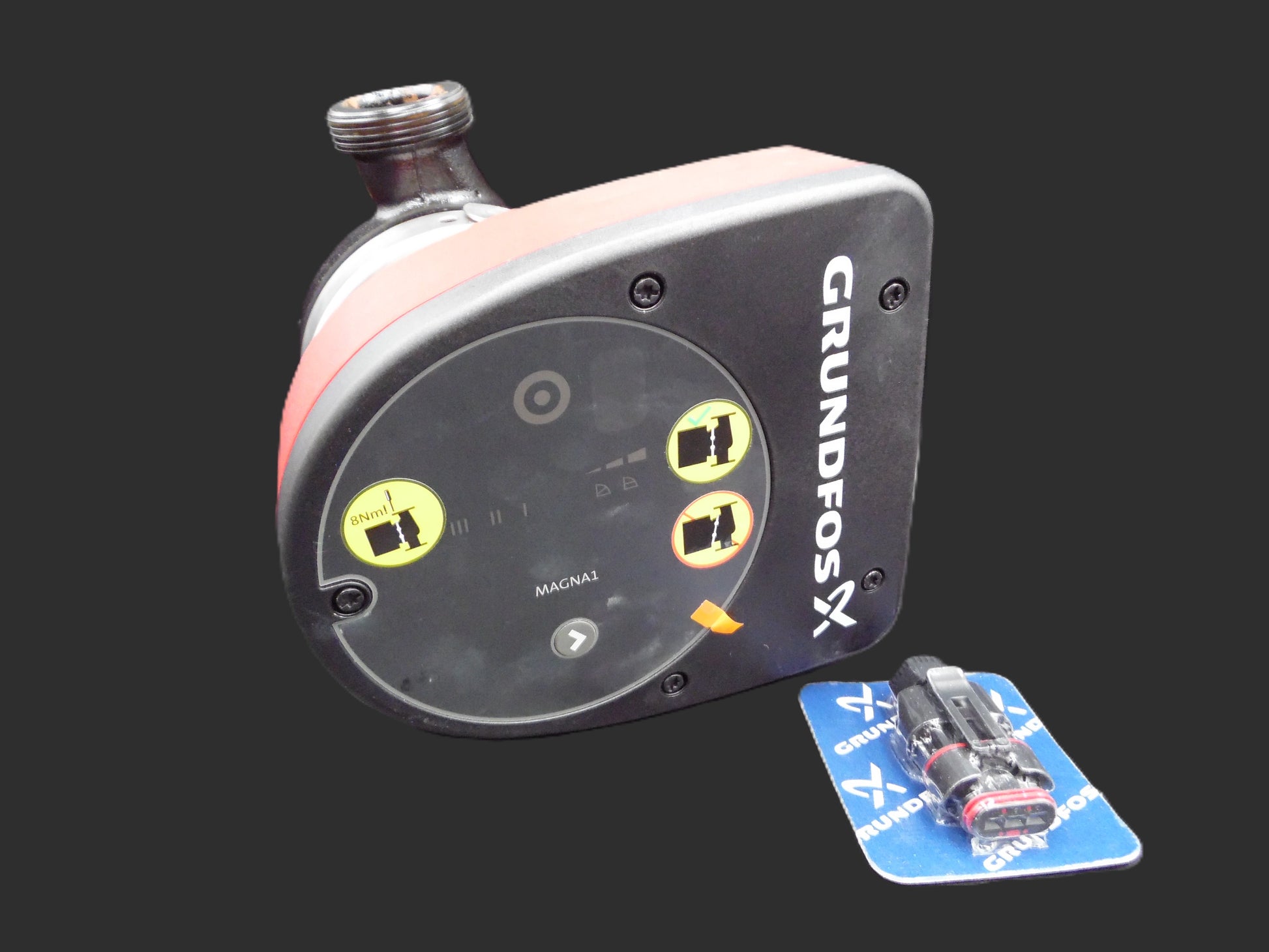

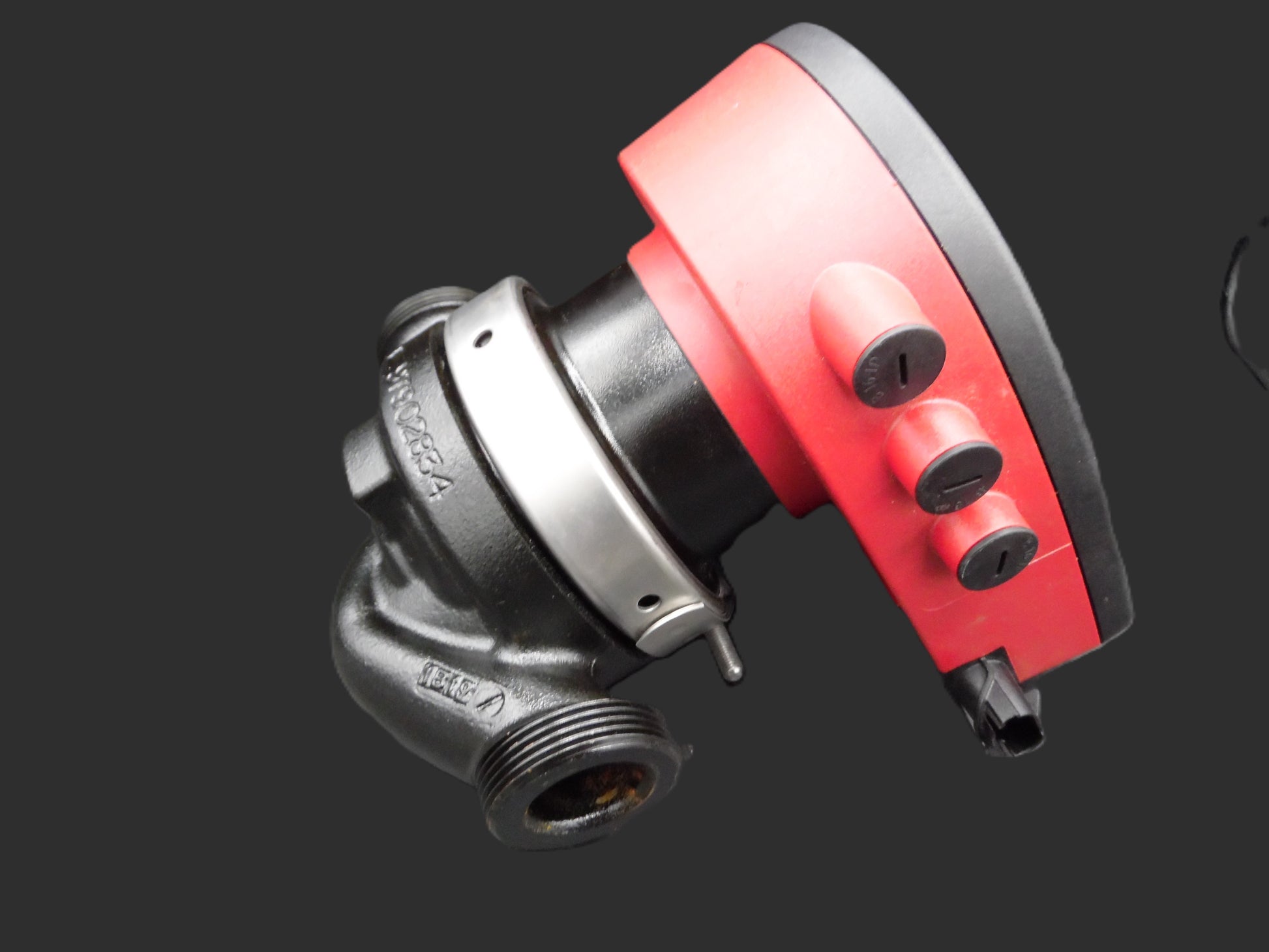

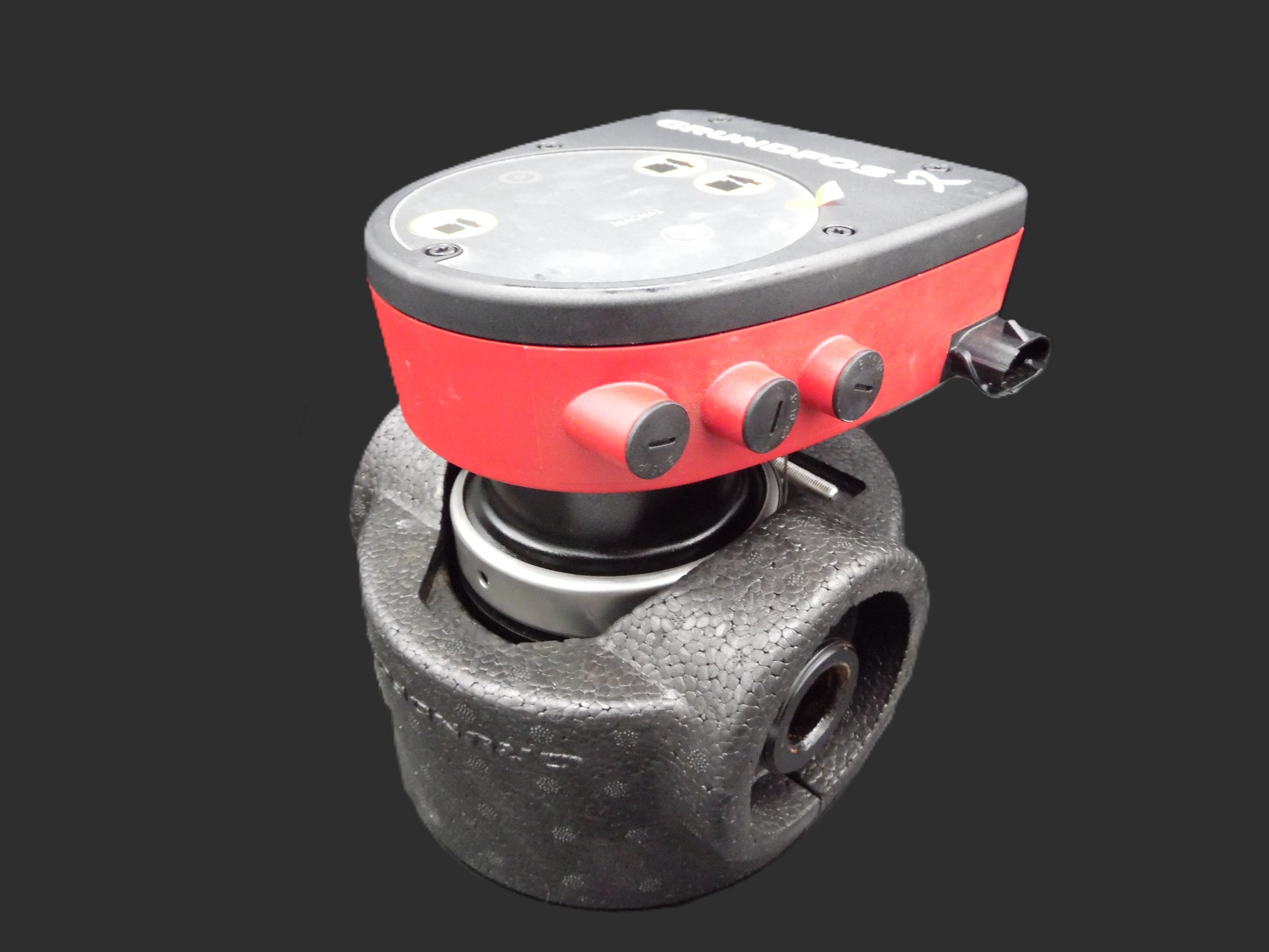

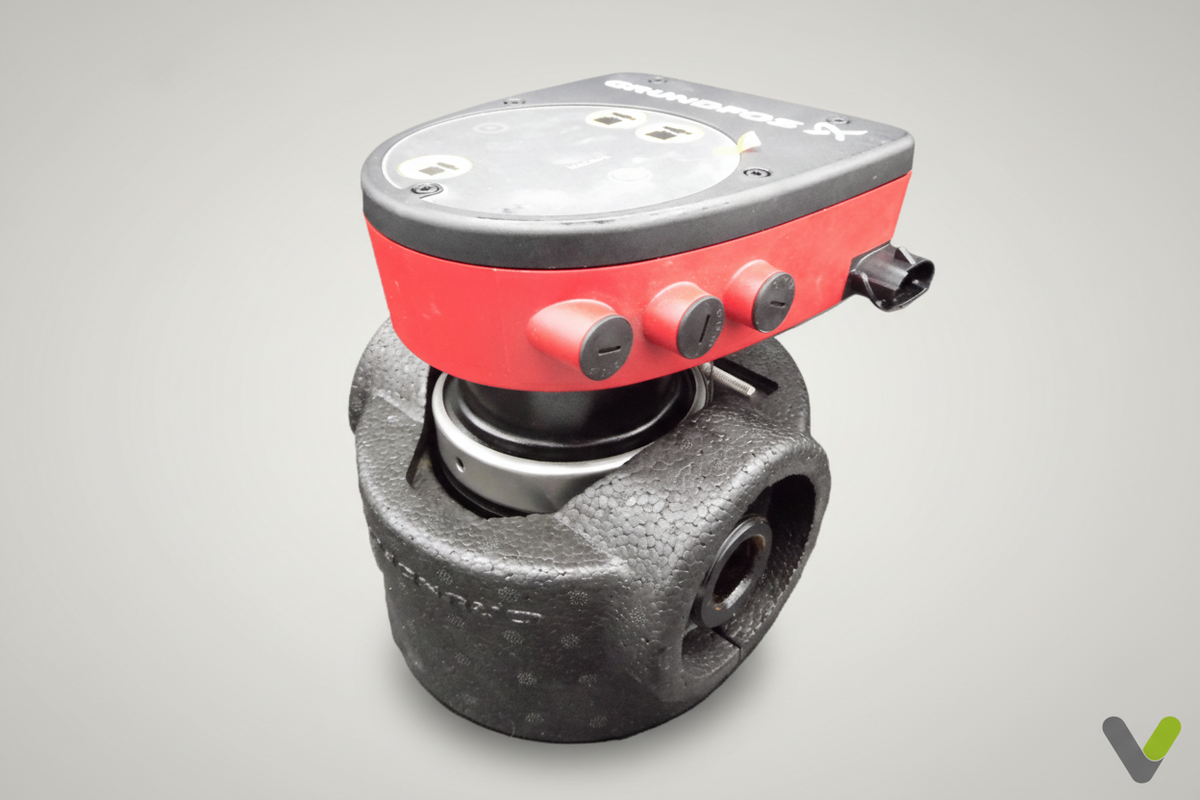

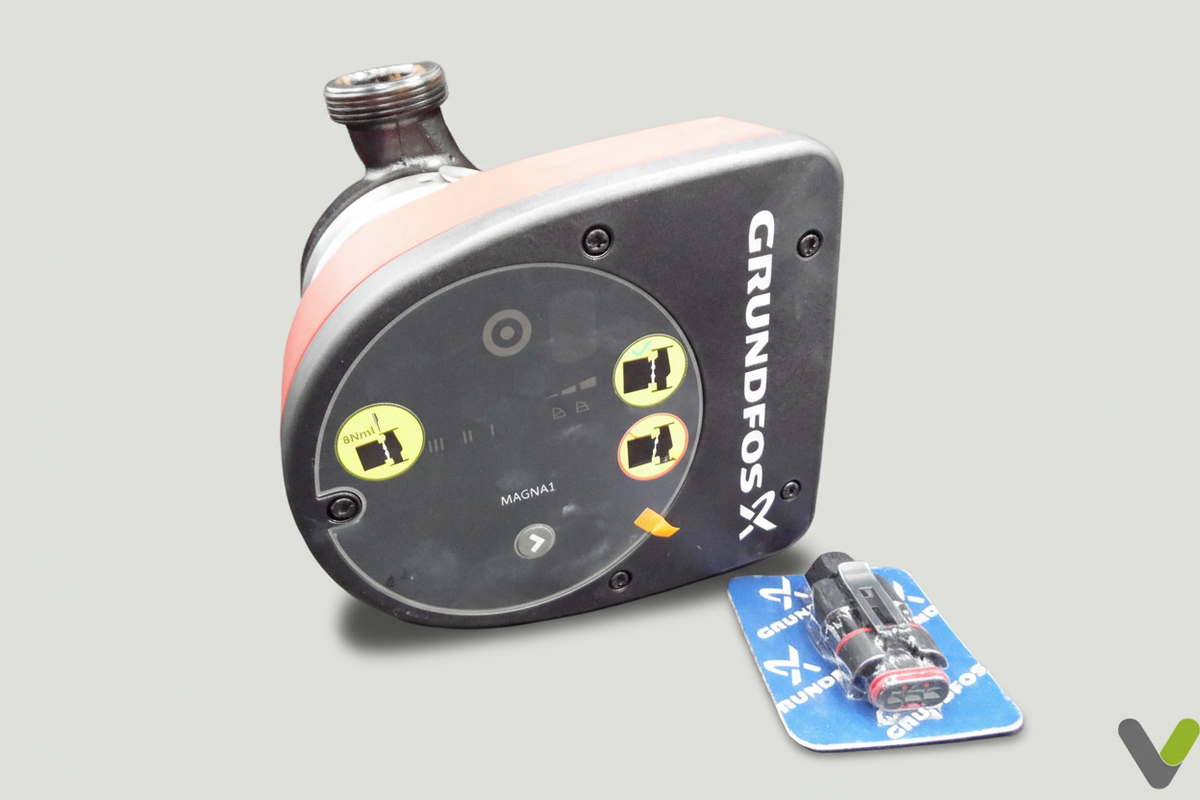

Grundfos MAGNA1 25-60 180 99221217

Reconditioned high-efficiency circulator pump for heating and cooling systems.

Product Details

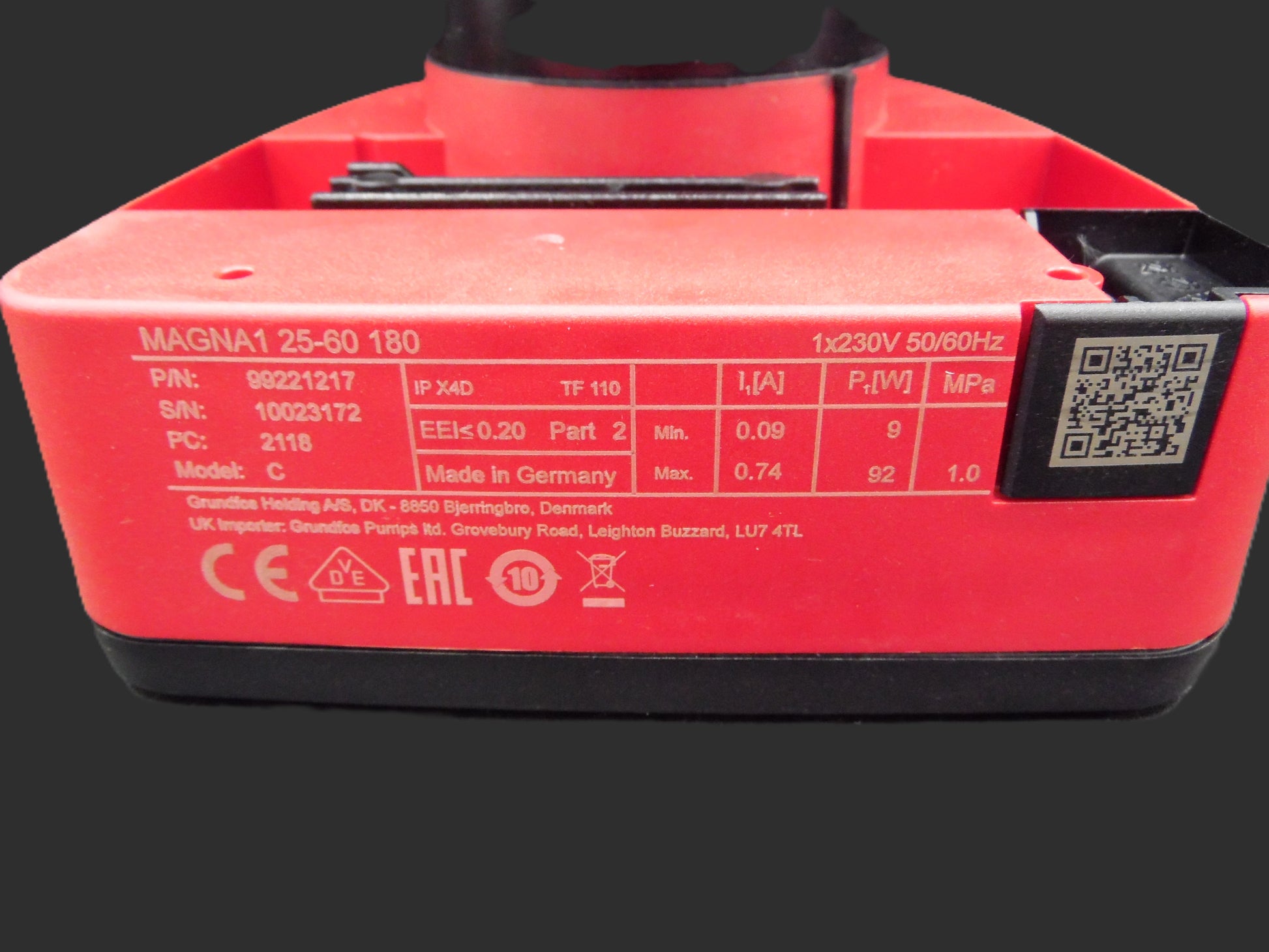

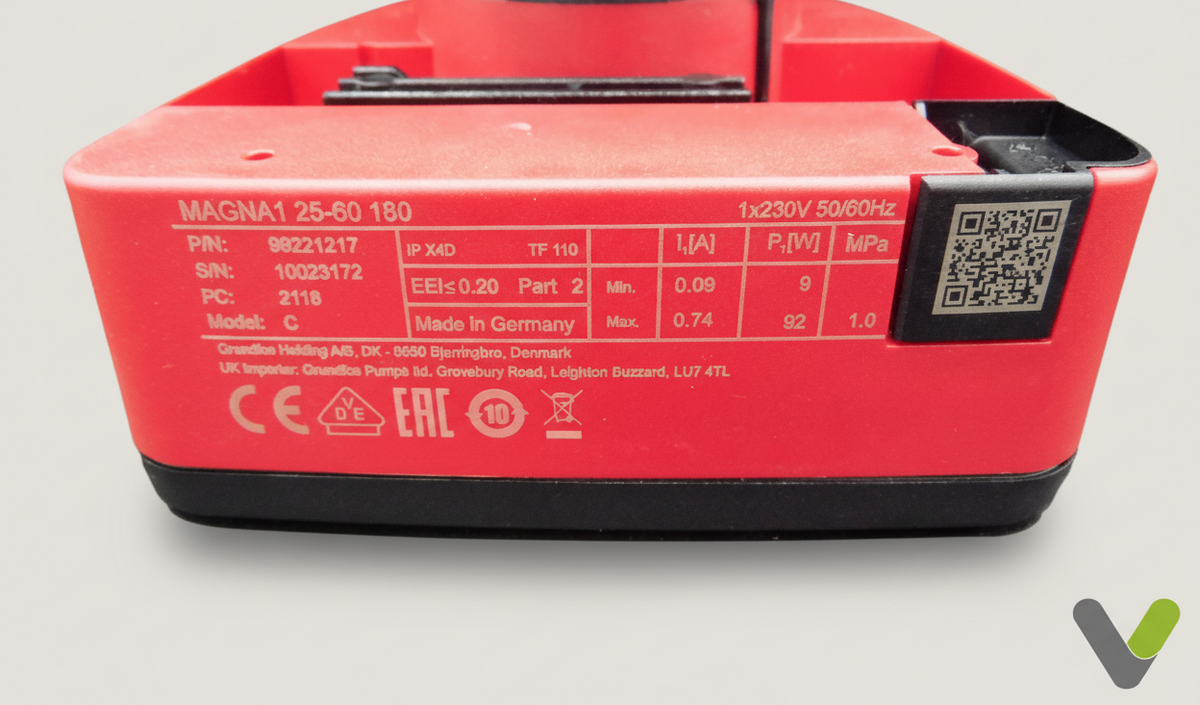

• Part number: 99221217
• Model: MAGNA1 25-60 180
• Product type: Variable-speed glandless circulator pump
• Function: Circulates water around the heating or cooling circuit and automatically adjusts pump output to match demand. Proportional-pressure, constant-pressure and constant-speed settings help maintain the required flow while reducing energy use and operating noise. The digital start/stop input allows remote pump control, and twin-pump communication supports continuous operation in twin-head setups
• Power supply: 1~230V, 50/60 Hz
• Power input: P1 9-92 W, current 0.09-0.74 A
• Maximum head: 6 metres
• Connection: 1 1/2 inch BSP threads
• Maximum operating pressure: 10 bar / 1.0 MPa
• Fluid temperature: -10°C to 110°C
• Protection rating: IPX4D
• Energy efficiency index: EEI ≤ 0.20, Part 2
• Pump housing: Cast iron, EN-GJL-200
• Impeller: PES 30% glass-fibre-reinforced polymer
• Condition: Reconditioned
• Brand: Grundfos

Applications

• Heating systems
• Cooling systems
• Domestic hot-water circulation
• Twin-pump circulation setups

Check the model, part number, connection size and electrical rating against the existing pump before ordering.
