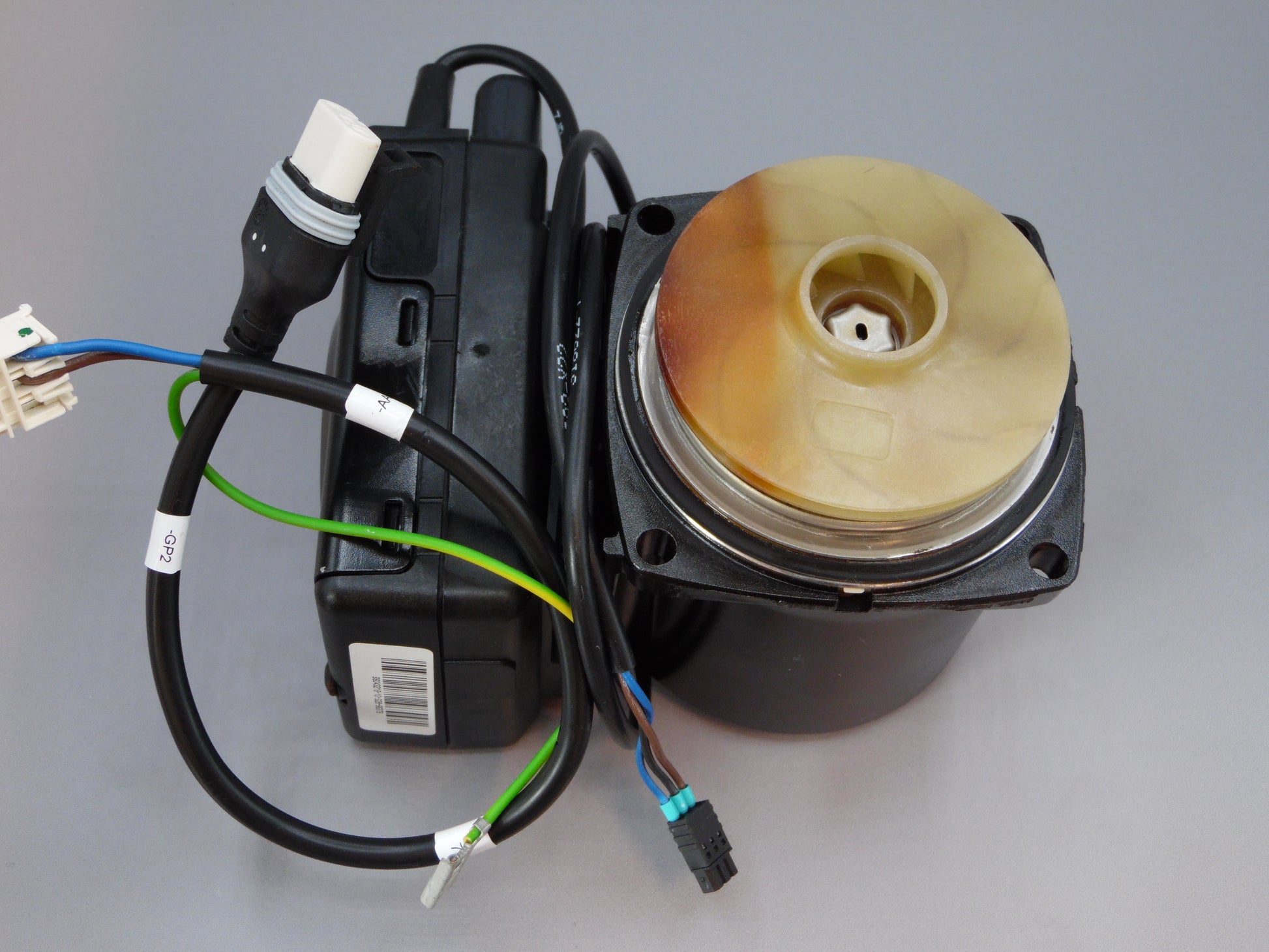

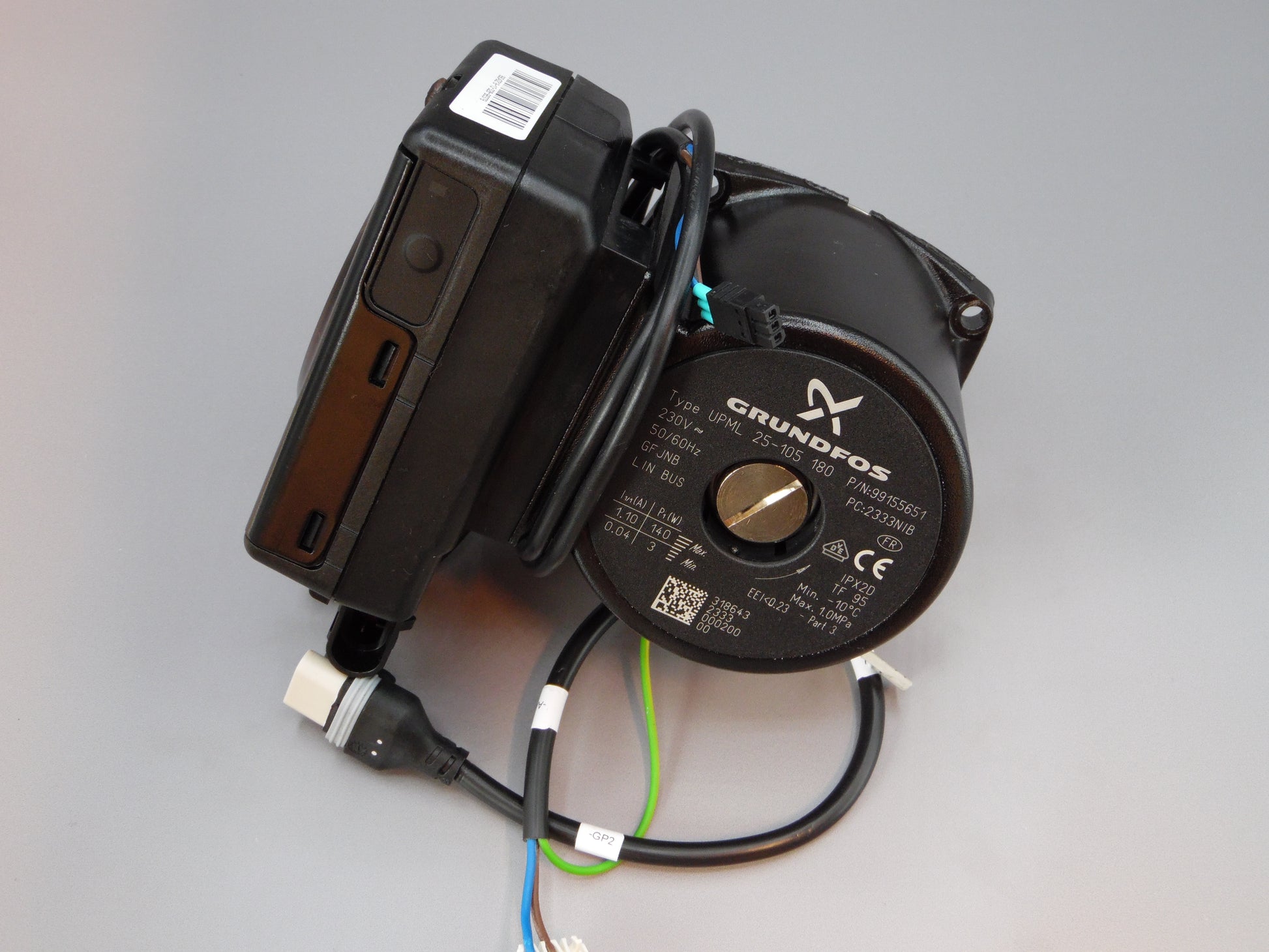

Grundfos UPML 25-105 180 Pump Head

Reconditioned Grundfos UPML 25-105 180 high-efficiency circulator pump head for compatible heating systems, boilers and ground-source or air-source heat pumps. This listing is for the head only and does not include the complete pump body.

Product Details

• Part number: UPML 25-105 180
• Product type: High-efficiency ECM circulator pump head
• Connection / thread size: DN25 / G 1 1/2 threaded union fittings
• Maximum head: 10.5 metres
• Port-to-port length: 180 mm
• Power supply: 230 V, 50/60 Hz
• Liquid temperature: -10 °C to +95 °C
• Component: Pump head only; pump body not included
• Condition: Reconditioned
• Brand: Grundfos
• Function: Circulates heating water through the system to support heat distribution and efficient operation.

Compatibility

• Compatible heating systems requiring a Grundfos UPML 25-105 180 pump head
• Selected Thermia, Nibe, Danfoss and Ideal heating systems
• Large residential heating systems, commercial boilers and ground-source or air-source heat pumps

Please check the part number, pump-head connection, fitting size, port-to-port length, electrical rating and pump-body arrangement against the existing component before ordering.
