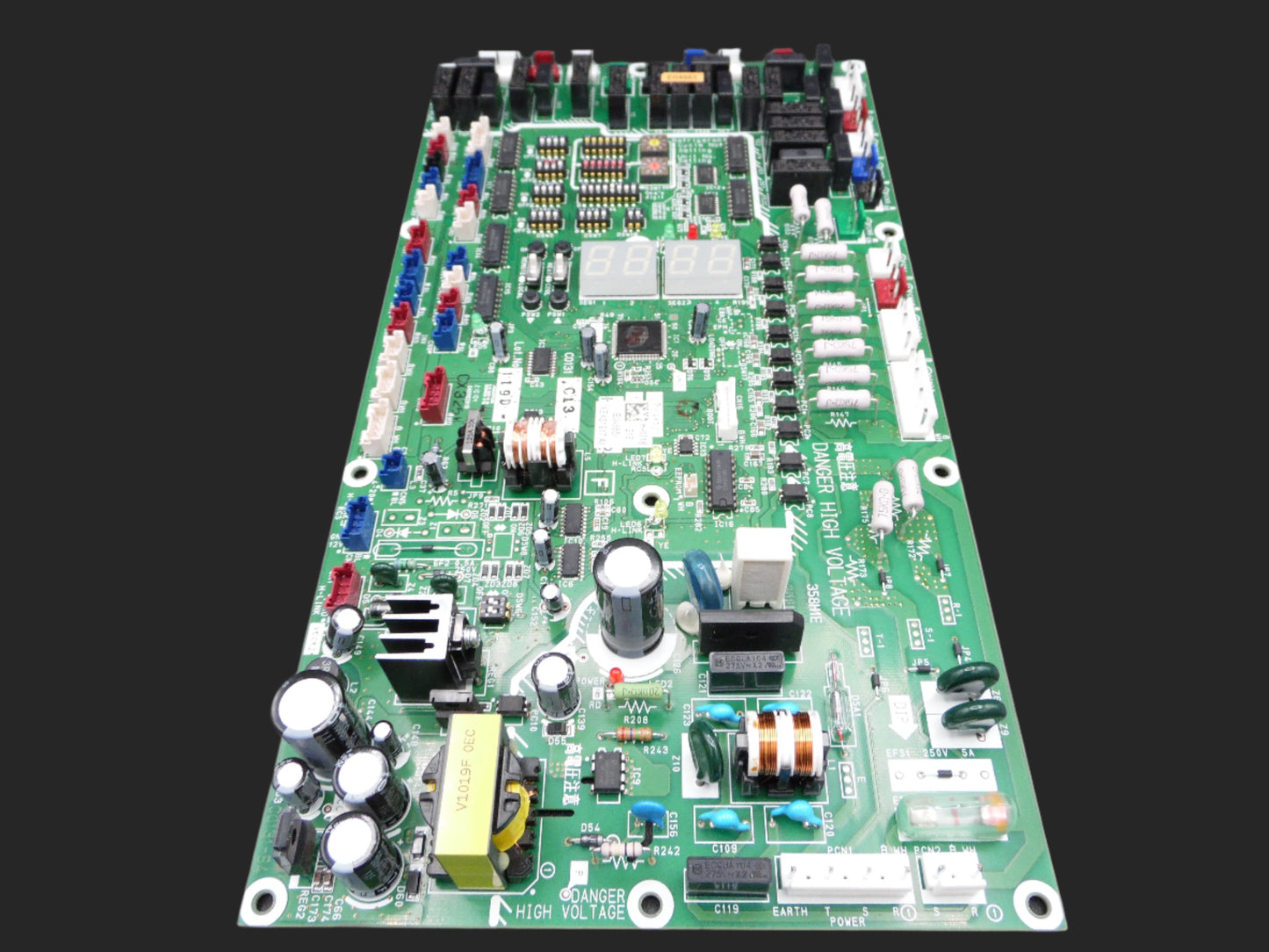

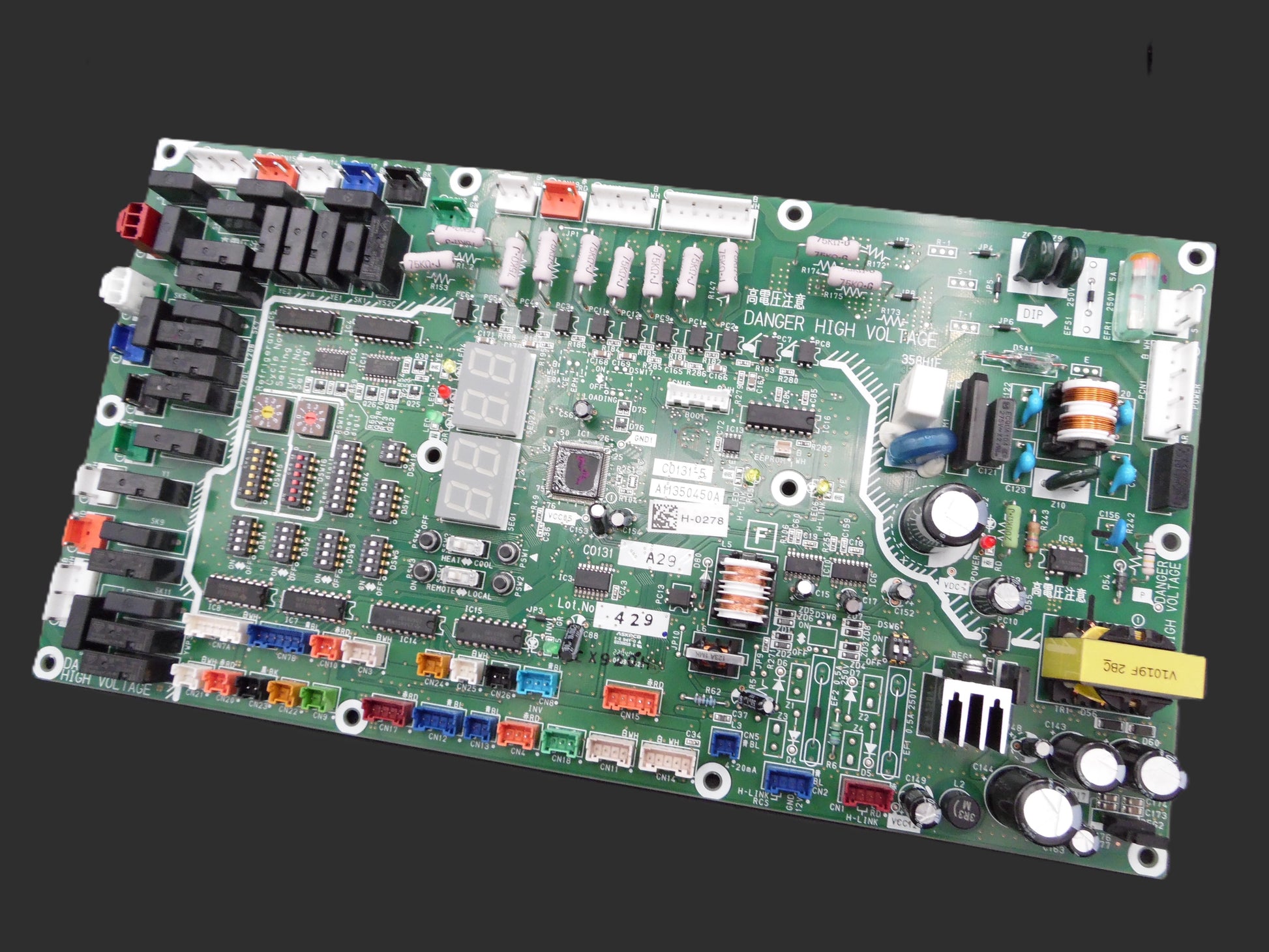

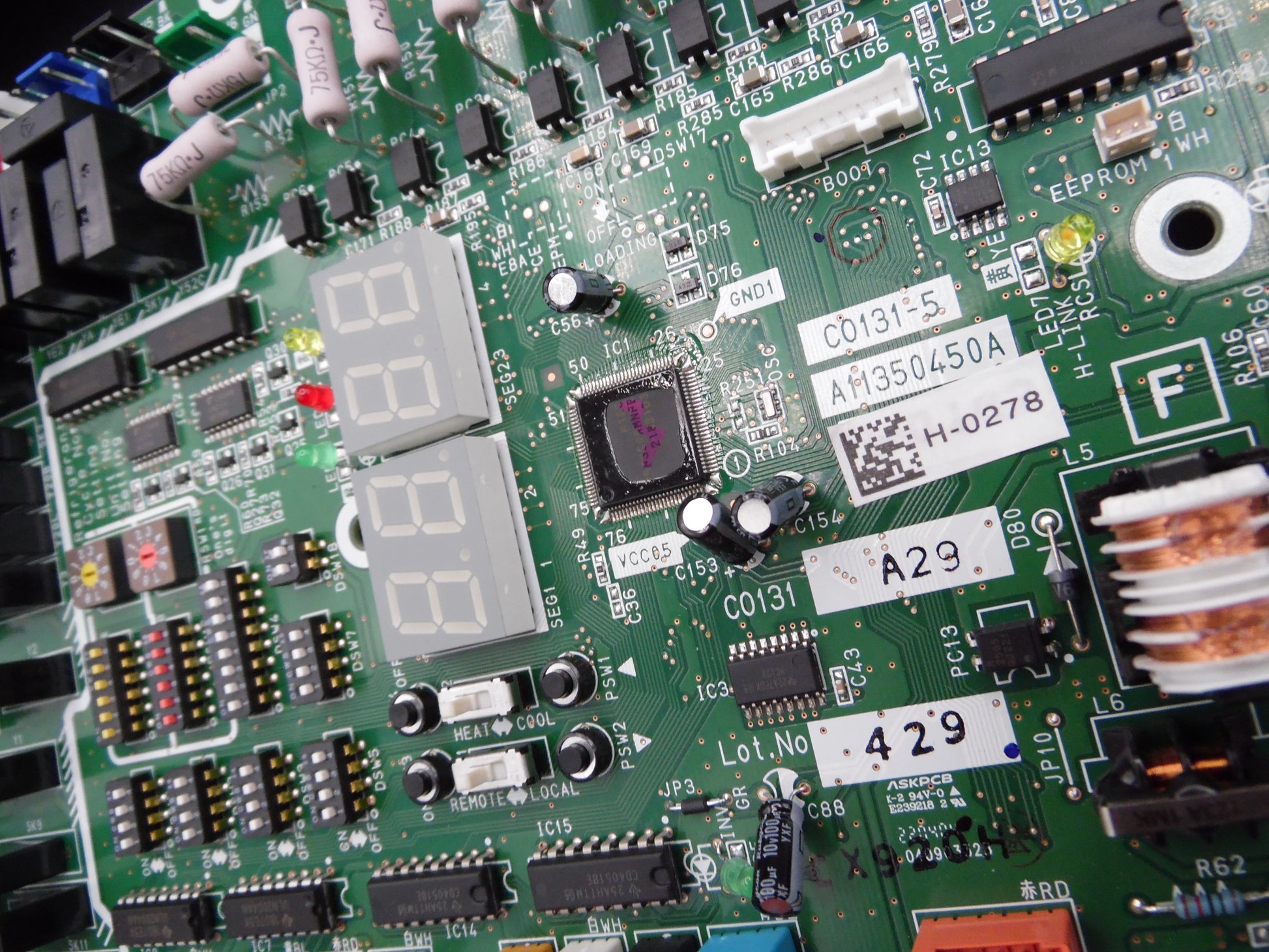

Name: Main PCB Board
Part Number: E04665
Manufacturer: Hitachi
Function:
This board serves as the central control unit within Hitachi heating, cooling, or ventilation systems. It governs the operation of core subsystems and ensures efficient, precise, and coordinated performance.

🔧 Key Functional Features

🎛️ System Management

• Controls primary system functions, including compressor, fan, pump, and valve actuation

• Coordinates data from internal and external sensors

• Enables safe startup/shutdown sequences

🔌 Communication & Integration

• Interfaces with:

  • Indoor unit controller

  • Thermostat or wall-mounted interface

  • Inverter board (if present)

  • Diagnostic/maintenance tools

• May support protocol-based communication (Modbus, Hitachi’s proprietary system bus)

⚙️ Hardware Highlights

• Robust circuit design with protected input/output terminals

• Built for high-temperature environments and continuous operation

• Factory-programmed for compatibility with designated Hitachi models

✅ Compatibility

• Described as compatible with various Hitachi models
  (exact model list not specified—typically found in product series like Yutaki air-to-water heat pumps, VRF systems, or certain air conditioning controllers)

To confirm model-specific compatibility, refer to the unit's service manual, technical guide, or part breakdown.

🛠️ Installation Notes

• Easy to install with plug-and-play harness connections

• Typically located in the electrical compartment of the indoor or outdoor unit

• Requires power disconnection and care to avoid static discharge

• May require initial setup or configuration post-installation depending on system type
