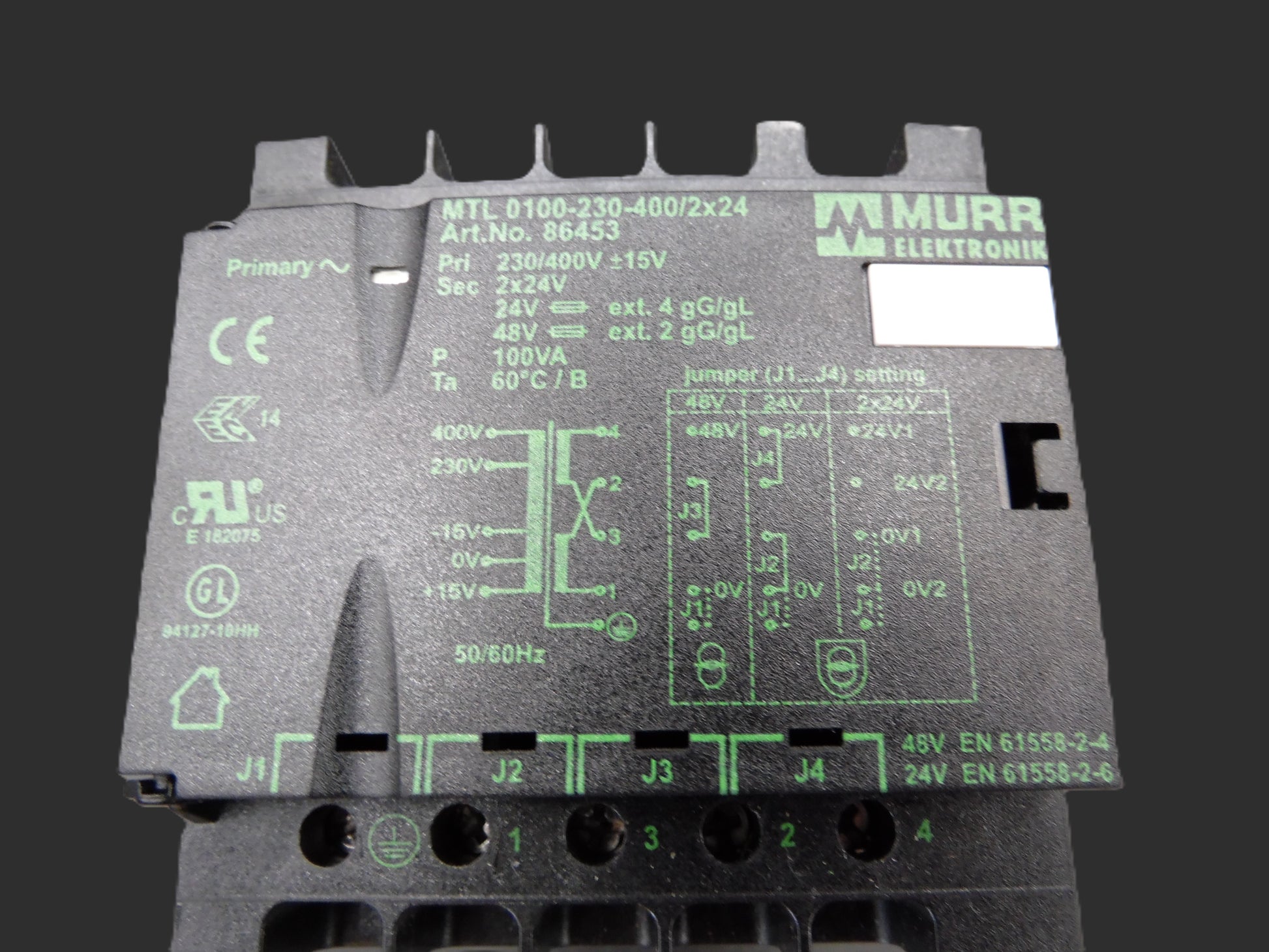

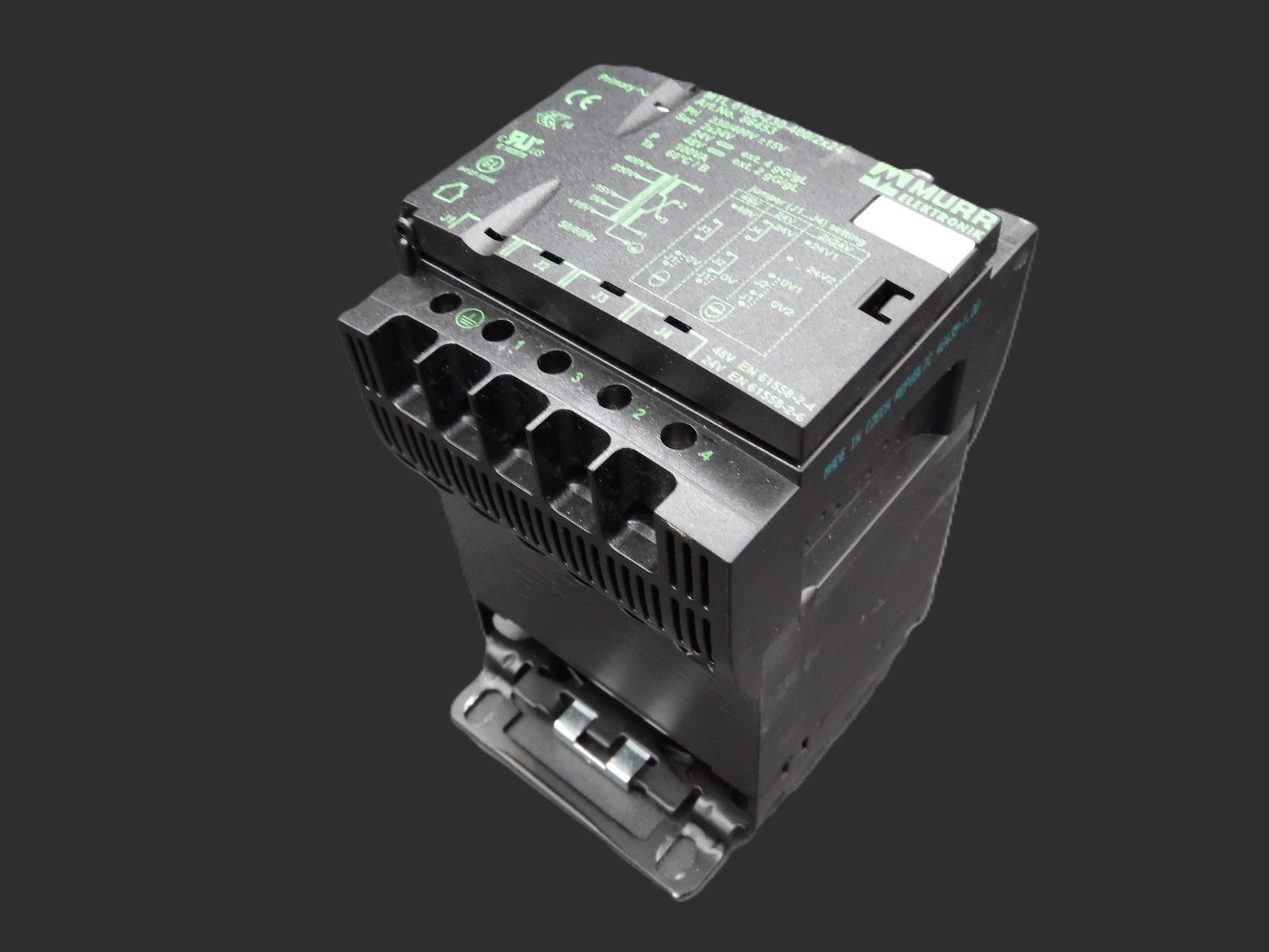

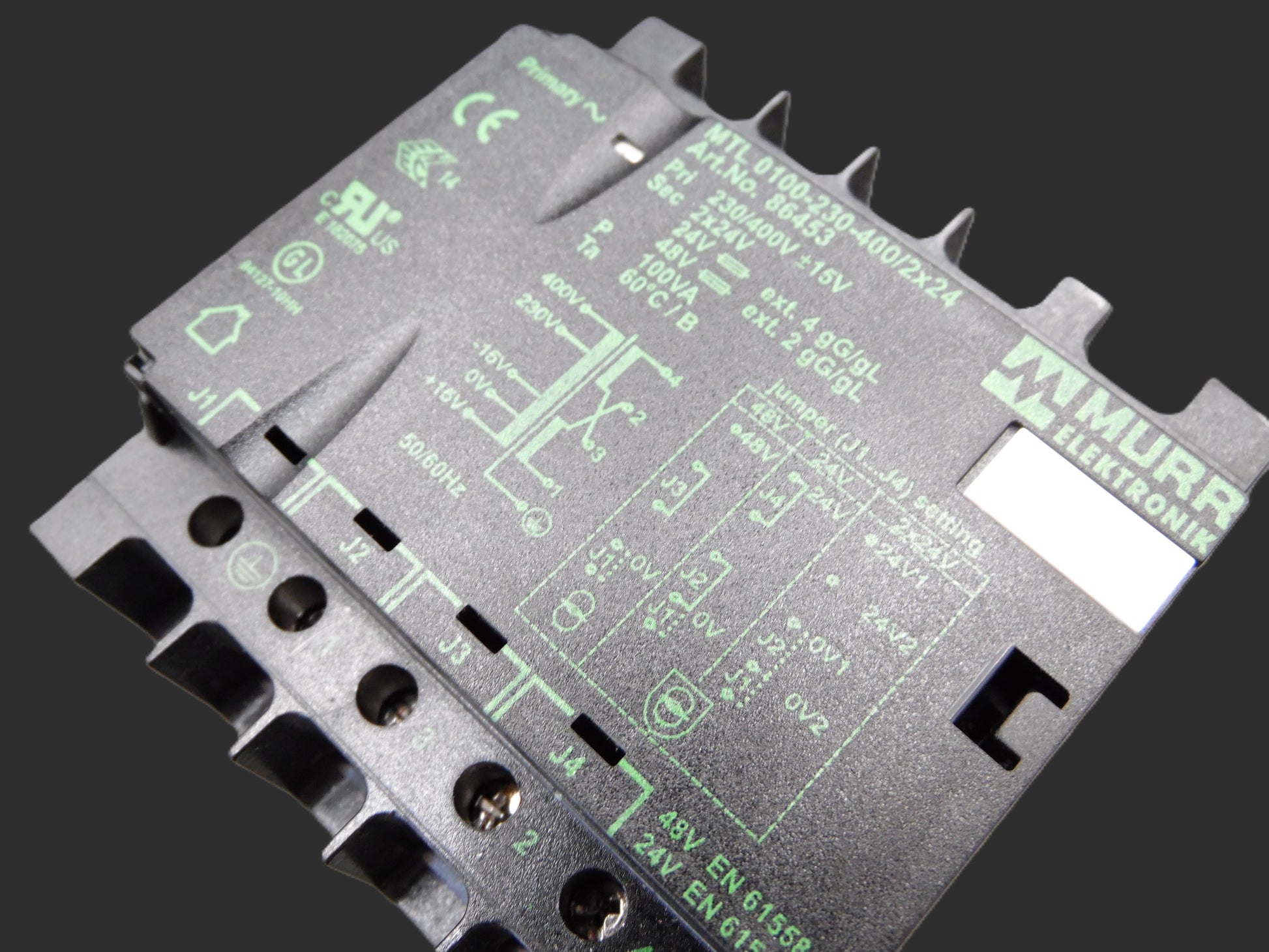

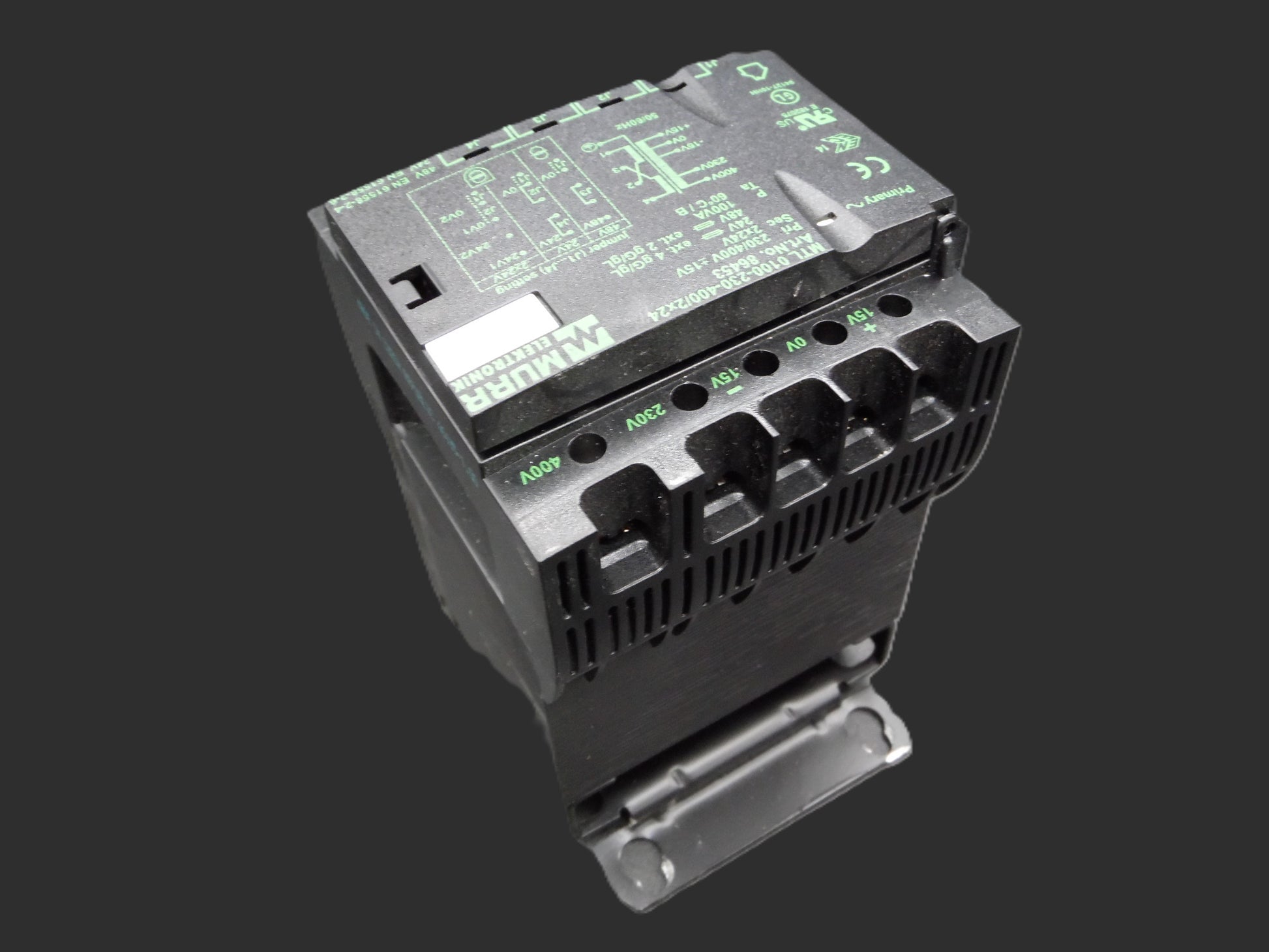

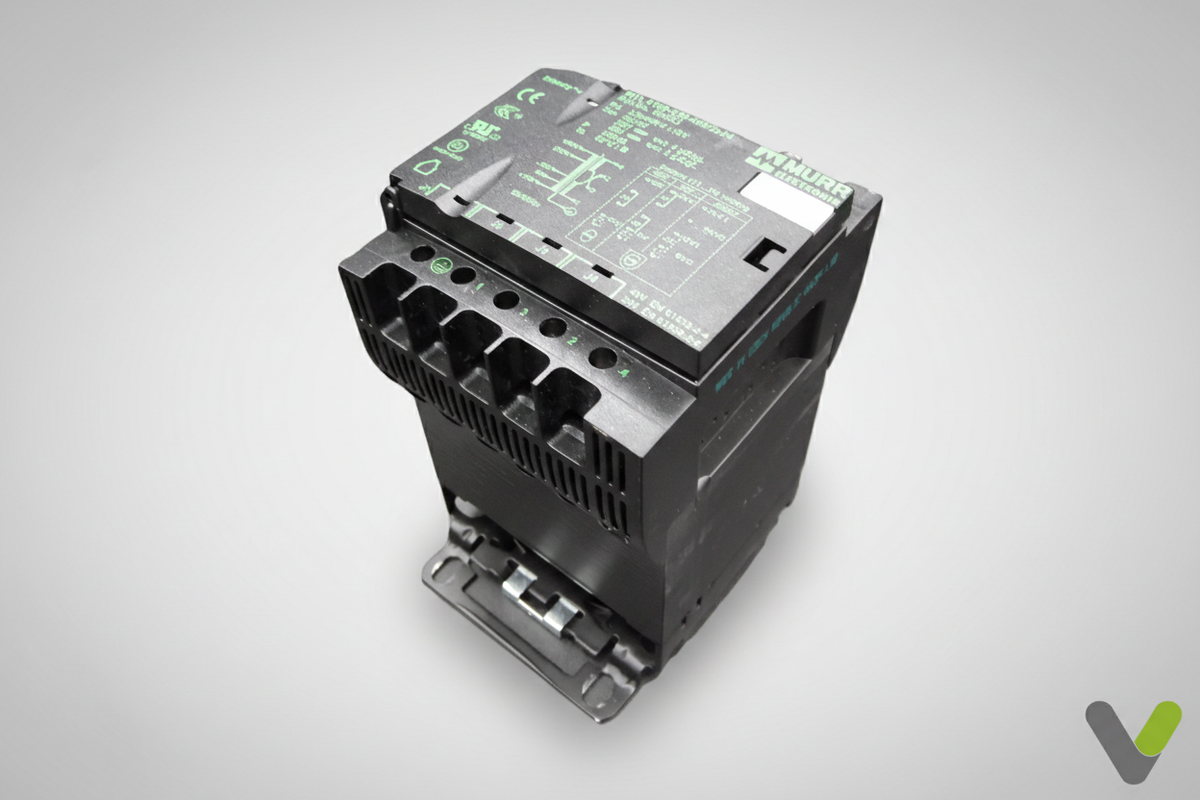

Murr Elektronik MTL 0100-230-400/2x24

Reconditioned single-phase safety transformer for industrial control and heat pump applications requiring electrical isolation and 24V AC control voltage.

Product Details

• Article number: 86453
• Model: MTL 0100-230-400/2x24
• Product type: Safety transformer / control transformer
• Function: Provides galvanically isolated low-voltage power for control circuits, converting a 230V or 400V AC supply to two separate 24V AC outputs. This keeps sensors, relays and control electronics supplied at the correct voltage while isolating them from the primary supply
• Input voltage: 230V AC or 400V AC ±15%
• Output voltage: 2 × 24V AC
• Power rating: 100 VA
• Frequency: 50-60 Hz
• Insulation test voltage: 5.1 kV input to output
• Protection class: I
• Protection rating: IP20
• Mounting: DIN rail TH35-15 or keyhole mounting to EN 60715
• Dimensions: 108 mm × 87 mm × 139 mm
• Standards: EN 61558-2-4, EN 61558-2-6 and EN 62041
• Condition: Reconditioned
• Brand: Murr Elektronik

Applications

• Heat pump control panels
• Industrial control cabinets
• Control circuits using 24V AC sensors, relays and electronics

Check the model, article number, input selection, output voltage and terminal arrangement against the existing transformer before ordering.
