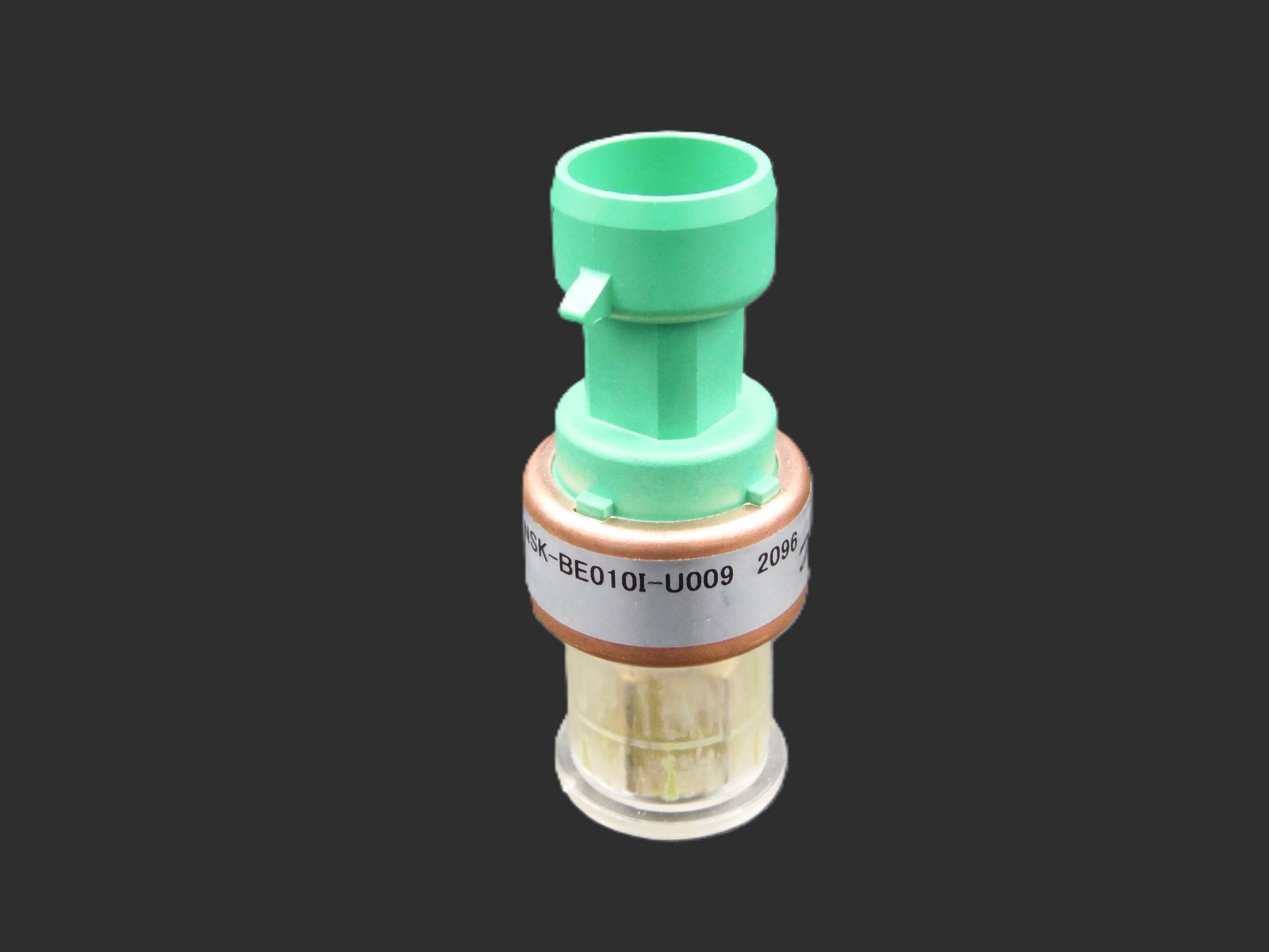

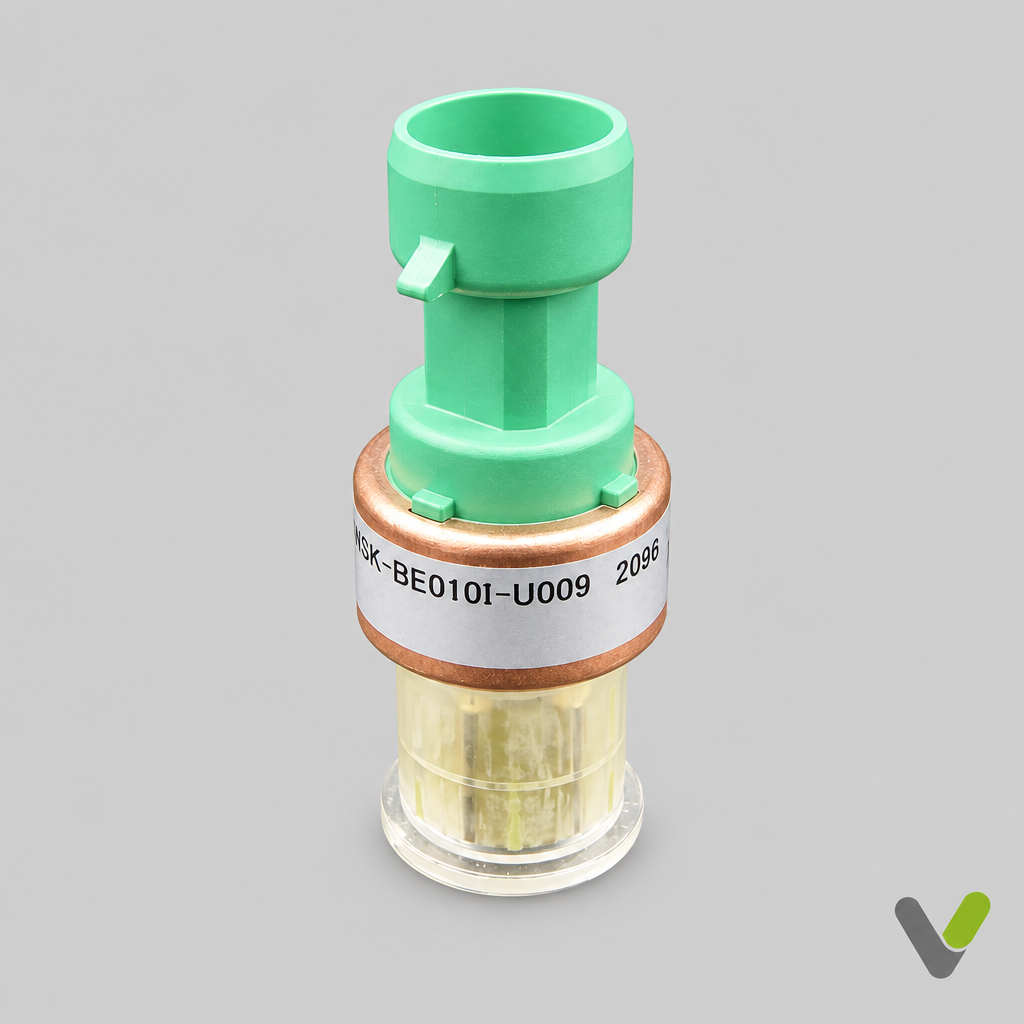

The NIBE Pressure Sensor 0–10 bar, part no 718065 is used in NIBE ground source and air source heat pumps, particularly in the F1345 and F1355 series. It is designed to monitor system pressure and provide a 0–10 V signal for the control board.

Key Specifications:
•     Part Number: 718065
•     Type: Pressure sensor (0–10 bar range)
•     Output Signal: 0–10 V DC (linear to pressure)
•     Application: Used in NIBE heat pumps to monitor refrigerant or water circuit pressure

Compatible with:
•     NIBE F1345-24 / F1345-30 / F1345-40
•     NIBE F1355-28
•     Also compatible with some JÄMÄ STAR and METROSAVER DUO models

Important Notes:
•     This sensor is a critical safety and monitoring component. It ensures the heat pump operates within safe pressure limits.
•     Installation should be done by a qualified technician, as it involves system depressurisation and recalibration.
