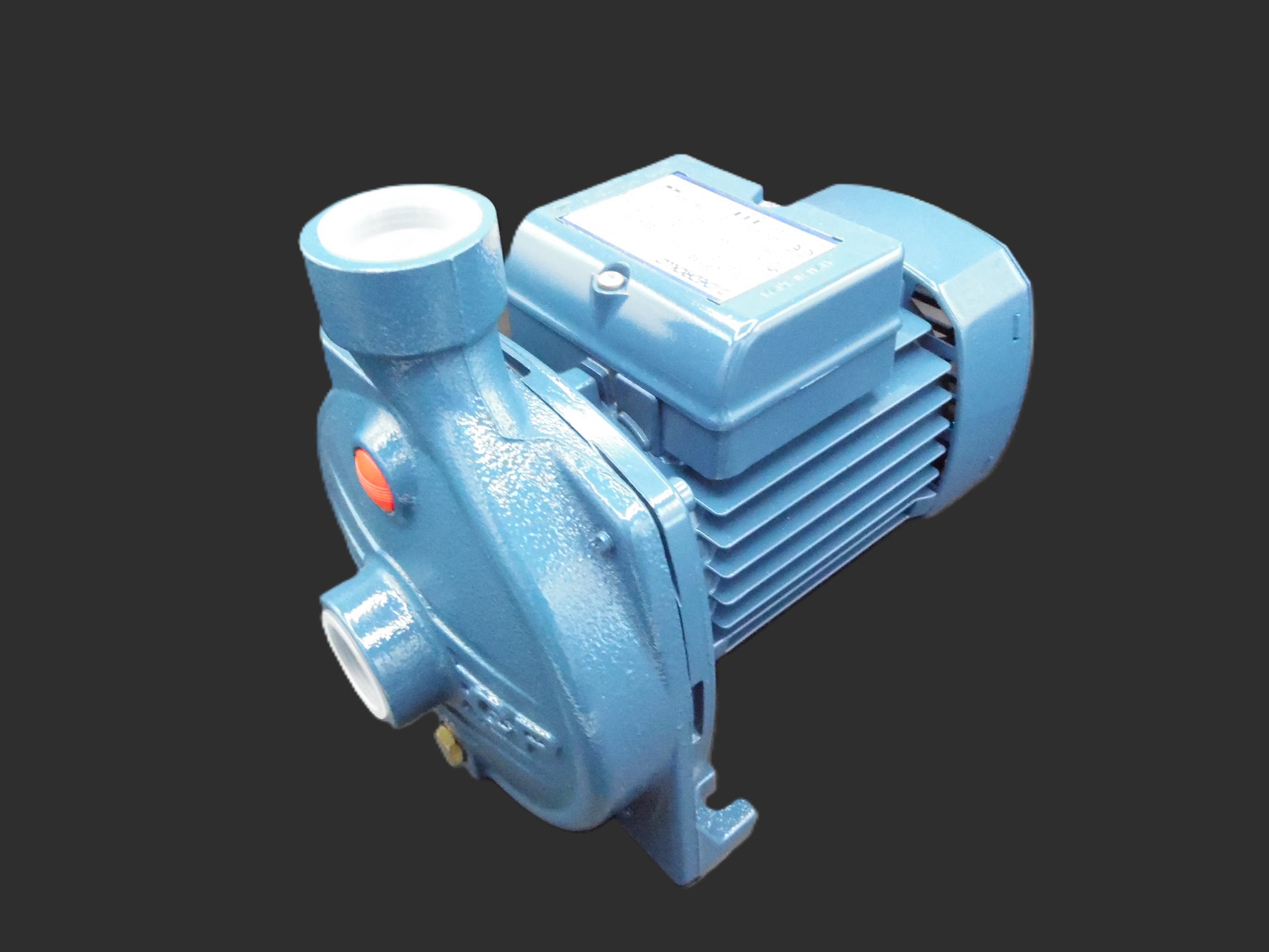

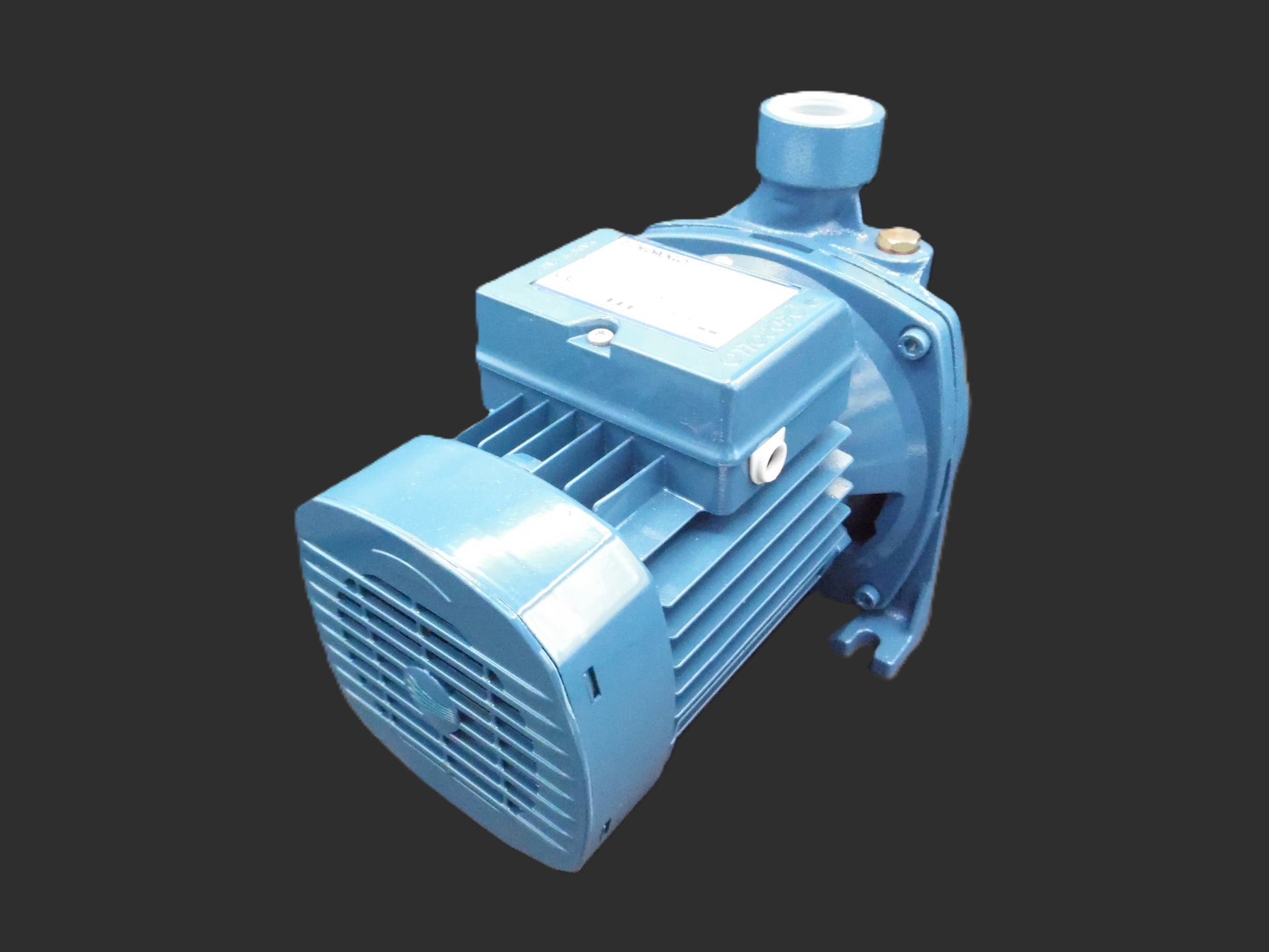

Pedrollo CP 132 is a single-impeller & three-phase centrifugal pump designed for clean water and non-aggressive liquids. It is widely used in domestic, civil, and industrial applications, including water distribution, irrigation, cooling systems, and pressure boosting.

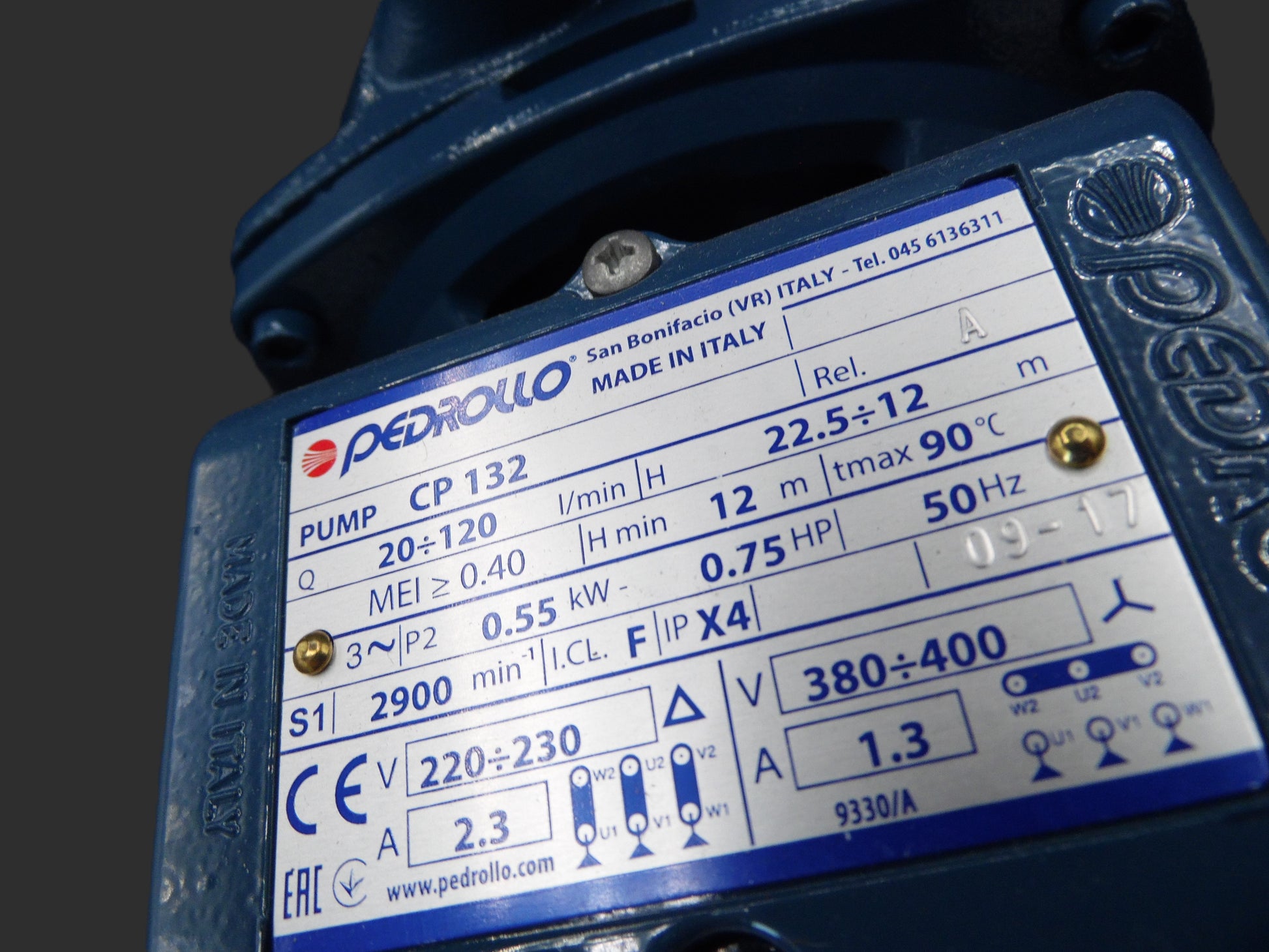

Technical Specifications

• Power: 0.55 kW (0.75 HP)
• Flow Rate: 20 - 120 litres per minute
• Head: 22.5 - 12 meters
• Pump Body: Cast iron with cataphoretic treatment
• Impeller: Stainless steel AISI 304
• Drive Shaft: Stainless steel AISI 431
• Max Working Pressure: 6 bar
• Liquid Temperature Range: -10°C to +90°C
• Ambient Temperature Limit: Up to +40°C
• Manometric Suction Lift: Up to 7 meters
• Ingress Protection Rating: IP X4
• Continuous Duty: S1

Applications

• Water Supply Systems: Ideal for distributing water in combination with small and medium-sized pressure tanks.
• Irrigation: Suitable for watering gardens, orchards, and allotments.
• Cooling & Air Conditioning: Used in cooling circuits and air conditioning systems.
• Liquid Transfer: Efficient for transferring fluids in various settings.
• Compatible with Nibe 1330, 1320 & 1310 various KW Ground Source Heat Pumps & other Heat Pump brands
