The Samsung MIM-E03CN (also known as the Gen 6/Gen 7 Mono Control Centre) is a crucial control kit for Samsung EHS Monobloc Air Source Heat Pump systems.

What exactly is the MIM-E03CN?

When you buy a standard Samsung Monobloc heat pump, the main mechanical heating components sit entirely outdoors. The MIM-E03CN is the "brain" installed inside your house. It acts as the central communication hub between the outdoor unit and your indoor heating systems (like radiators or underfloor heating).

The full kit typically includes three main items:

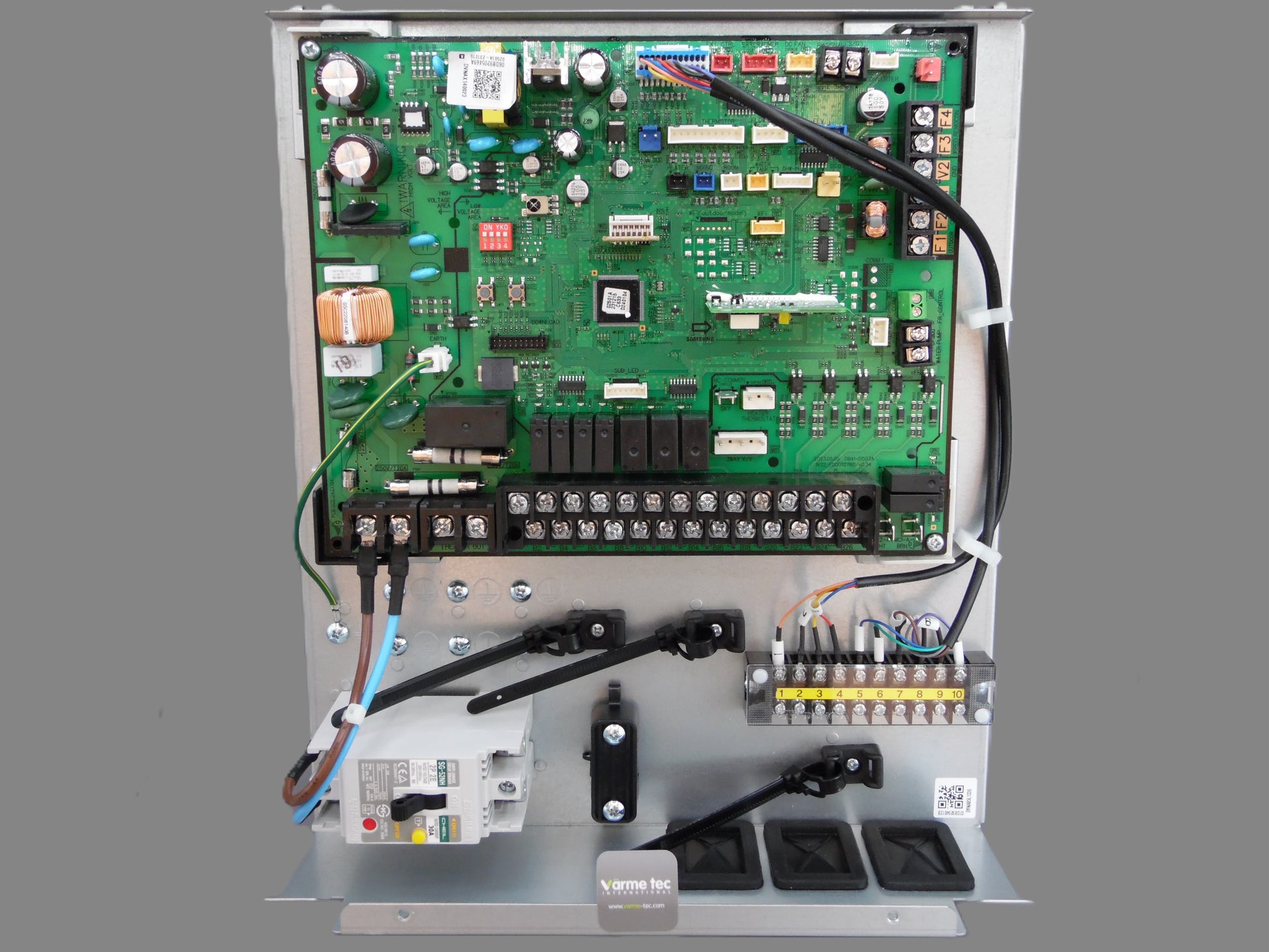

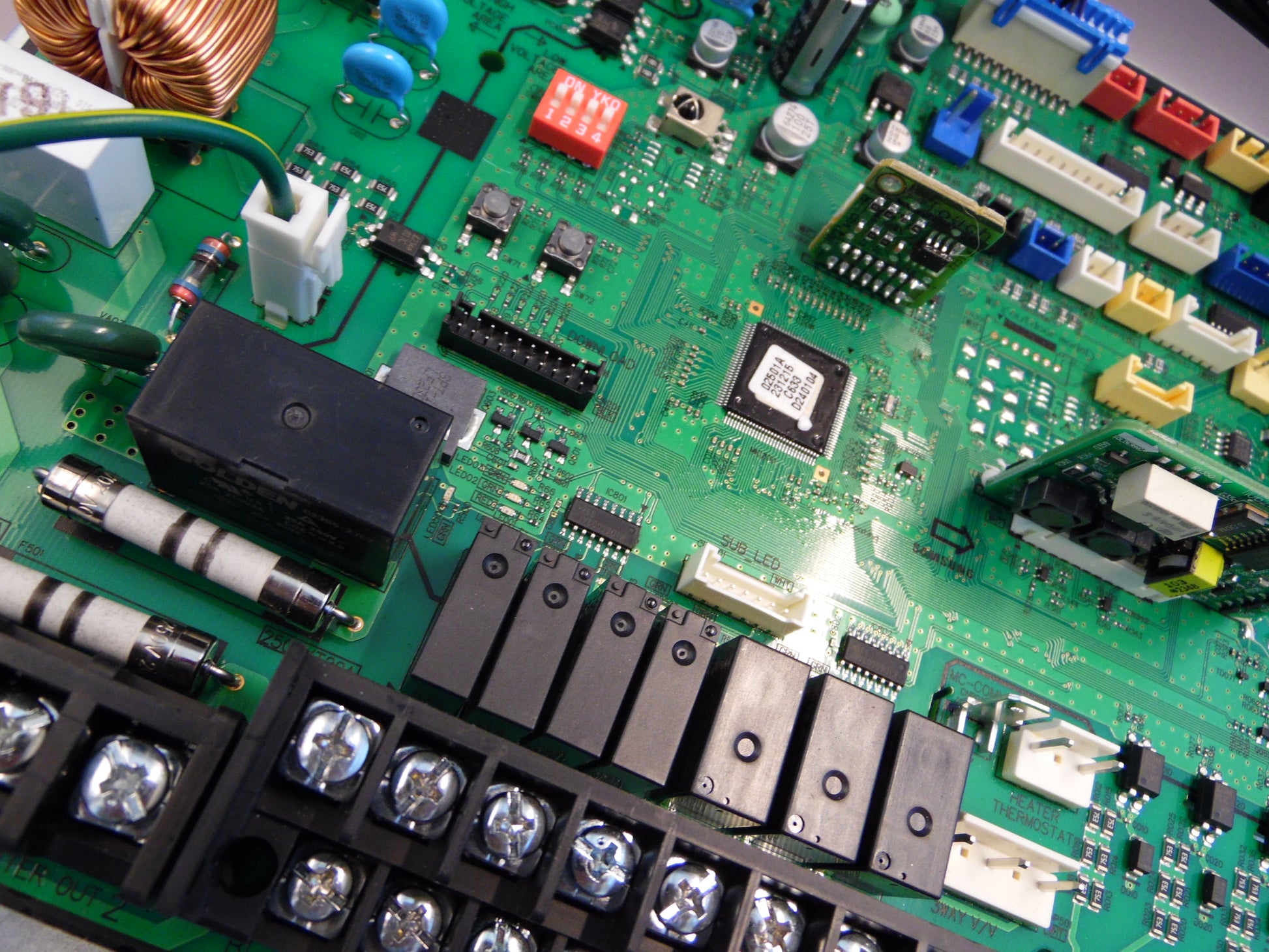

1. The Main Control Board Box: A wall-mounted enclosure housing the printed circuit board (PCB) that manages the heat pump’s electrical operations.

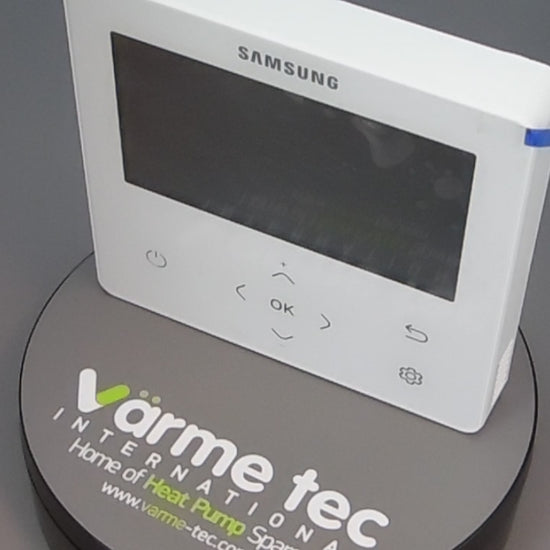

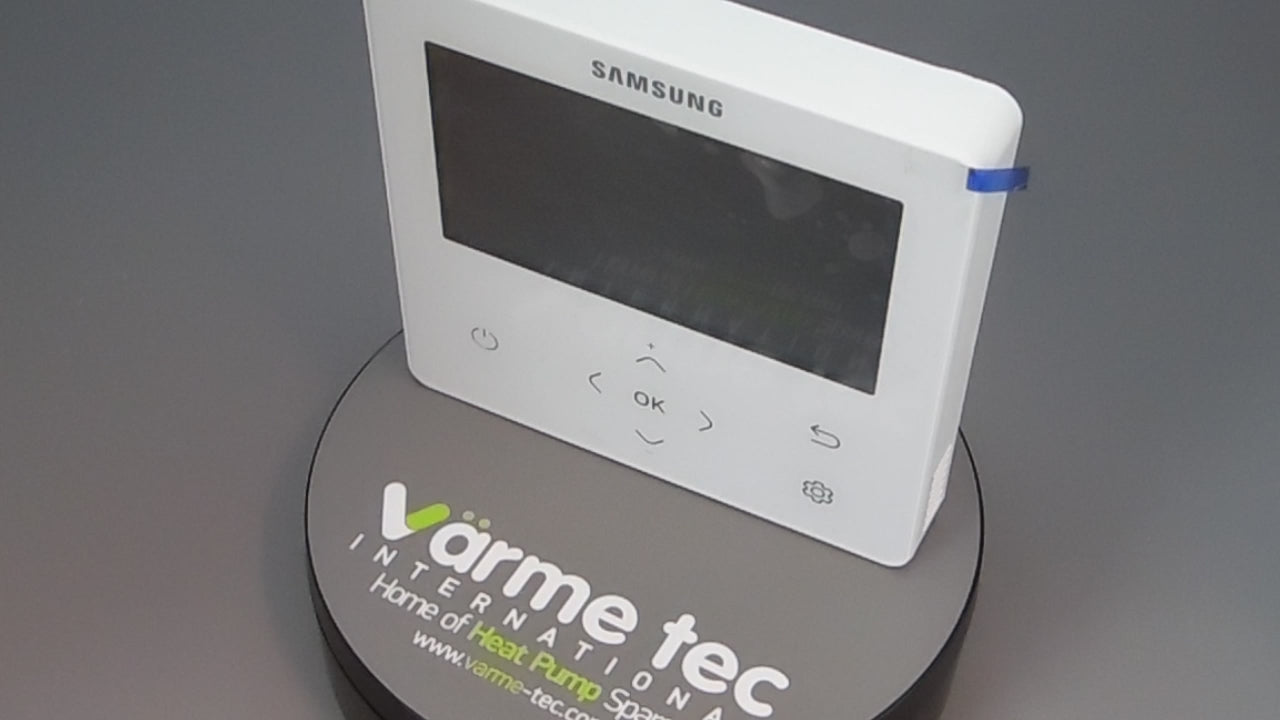

2. Wired LCD Touch Controller: The digital thermostat/screen you mount on the wall to set schedules, view errors, and change room temperatures.

When do you actually need one?

You only need to purchase a standalone MIM-E03CN kit in specific scenarios:

• Non-Samsung Cylinders: If you are pairing a Samsung heat pump with a third-party hot water cylinder (e.g., a standard Telford or Newark cylinder).

• Heating-Only Systems: If the heat pump is only supplying space heating (radiators/underfloor) and not hot water.

• Replacements: If your existing control hub suffered an electrical surge or a terminal component failed.
