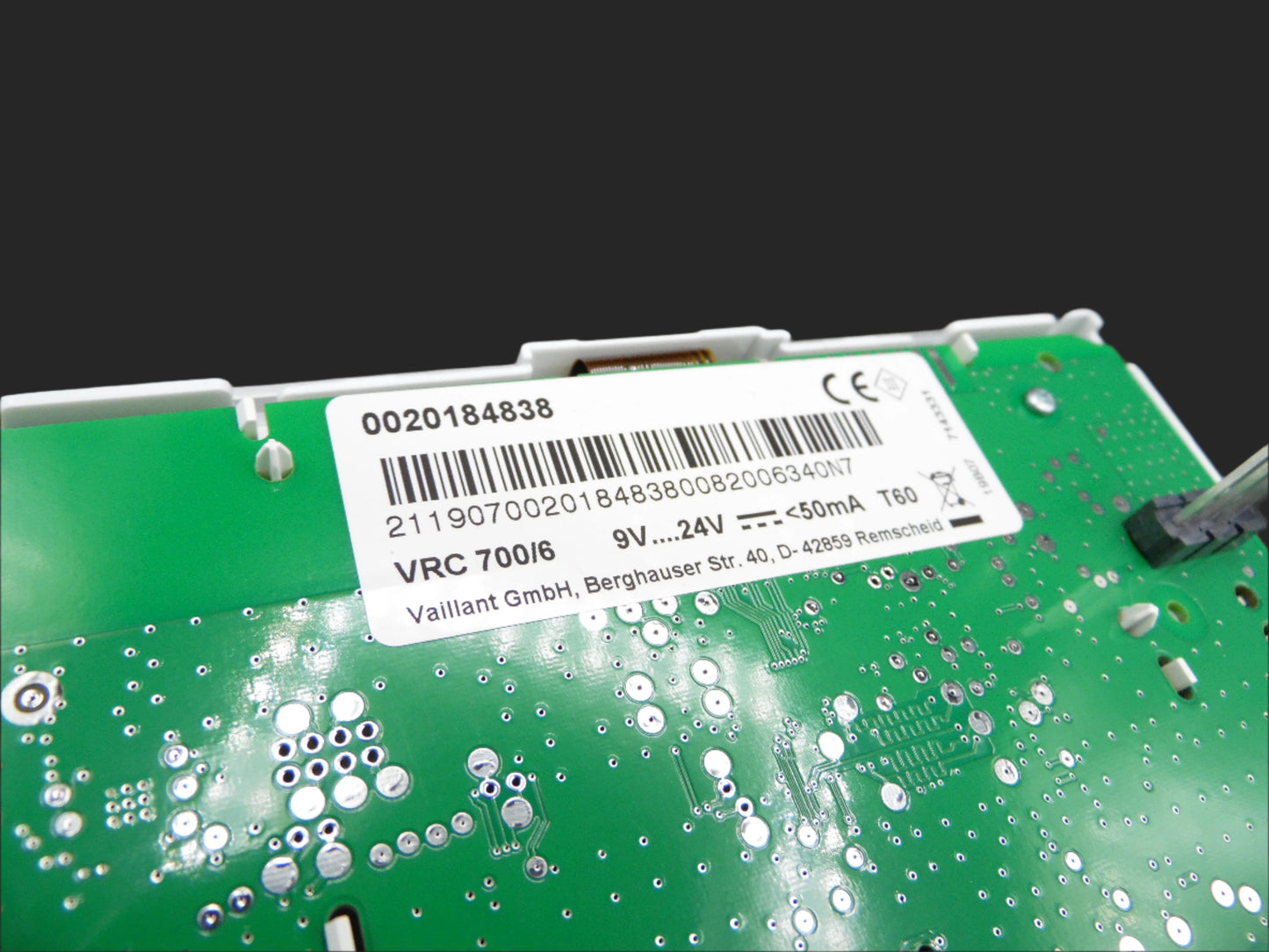

The Vaillant VRC 700/6 Wired Digital Compensator (Part No. 0020184838) is a sophisticated weather-compensating programmable thermostat designed to optimize the performance of Vaillant heating systems. It intelligently adjusts boiler output based on external temperatures, ensuring consistent indoor comfort and enhanced energy efficiency.

🔧 Key Features

• Weather Compensation: Utilizes an outdoor temperature sensor to modulate boiler output, maintaining desired indoor temperatures efficiently.

• System Compatibility: Seamlessly integrates with all current Vaillant boilers, heat pumps, and solar thermal systems, supporting complex configurations including multiple heating zones and underfloor heating.

• User-Friendly Interface: Features a clear, high-contrast backlit display with intuitive controls—a rotary knob and two push buttons—for easy navigation and adjustments.

• Flexible Programming: Allows up to three heating and three hot water time periods per day, accommodating varied daily routines.

• Remote Access: When paired with the VR 920 internet gateway, users can control their heating system remotely via the myVAILLANT app.

• Hybrid Management: In systems combining a heat pump and boiler, the VRC 700/6 employs the triVAI® hybrid management system to automatically select the most efficient heat source based on current conditions.

• Memory Retention: Stores time and temperature programs permanently, even during power outages, ensuring settings are preserved.

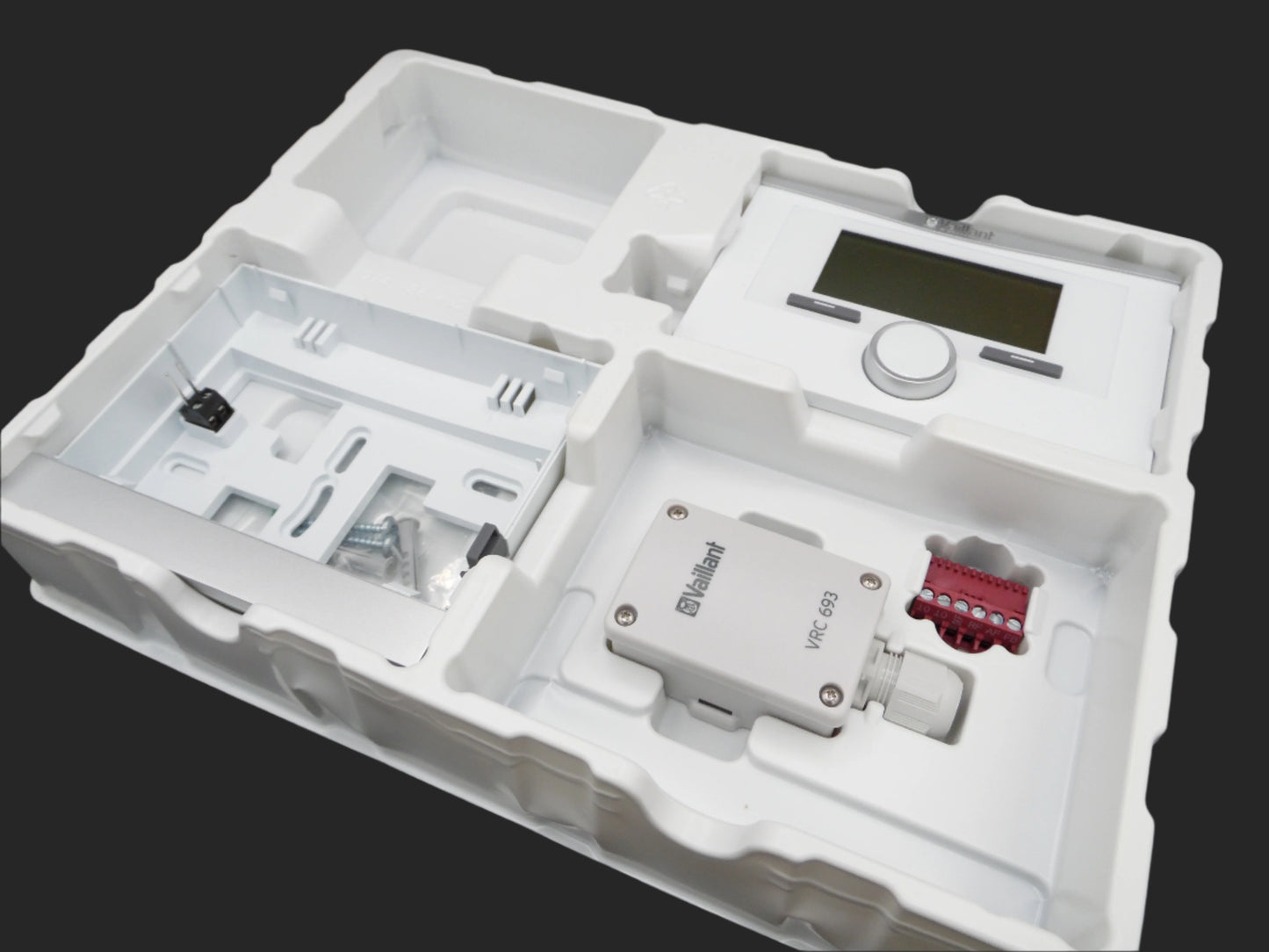

📦 Package Contents

• VRC 700/6 system control unit

• Outdoor temperature sensor (VRC 693)

• Mounting hardware (2 bolts and 2 wall plugs)

• 6-way edge connector

• 3-pin header connector

• Installation and operating instructions

📐 Technical Specifications

• Dimensions: 115 x 147 x 50 mm

• Power Supply: 24V via eBUS

• Temperature Range: Adjustable between 5°C and 30°C

• Maximum Ambient Temperature: 50°C

• ErP Class: VI (6)
