Wilo Stratos 40/1-12 DA Pump Head 2127009

Reconditioned high-efficiency circulator pump head for heating, cooling and industrial circulation. Head only, no pump housing included.

Product Details

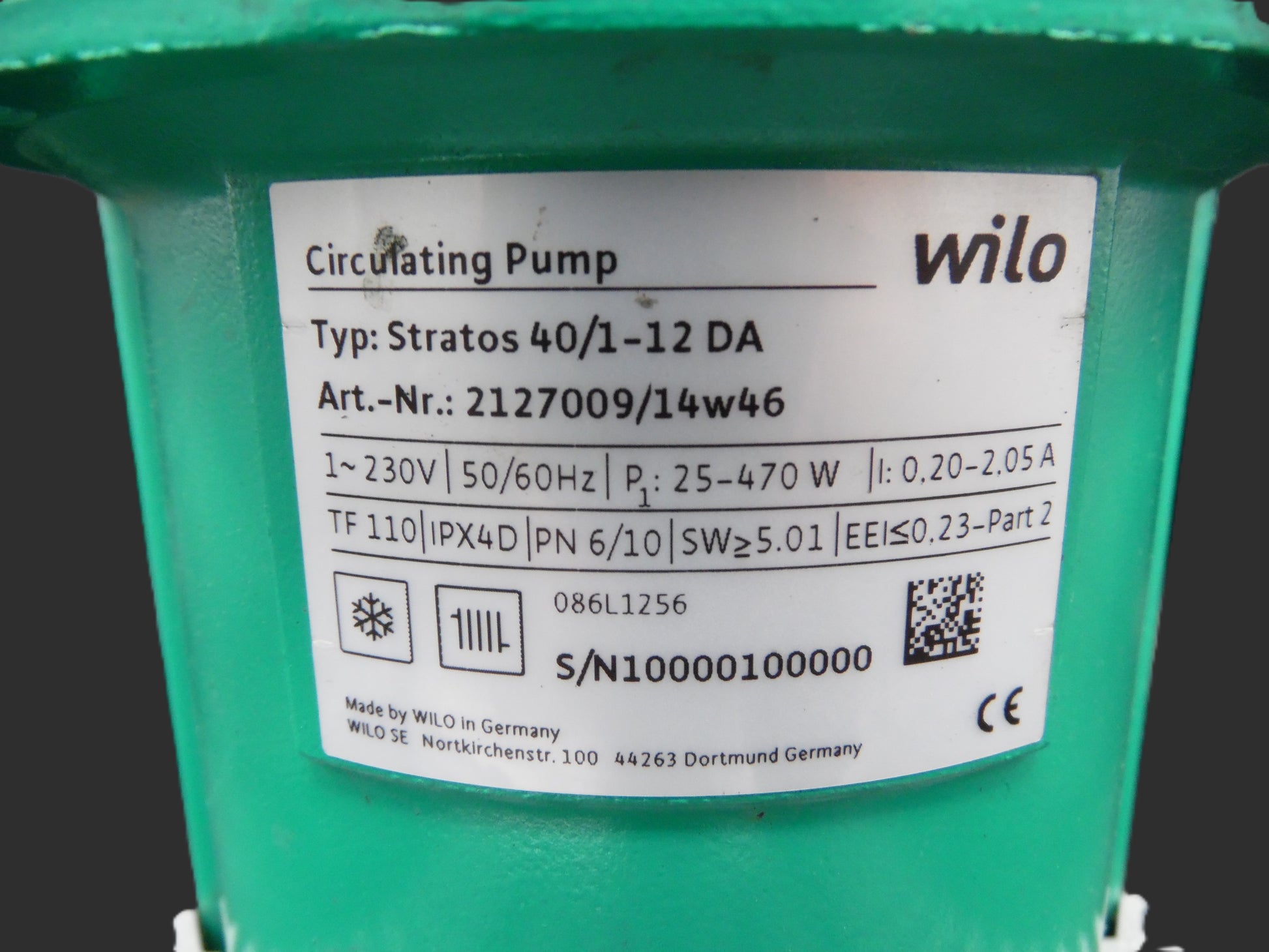

• Part number: Art.-Nr. 2127009/14w46 and 15w03, also referenced as 086L1256
• Model: Wilo Stratos 40/1-12 DA
• Product type: Glandless high-efficiency circulator pump head with electronic control module

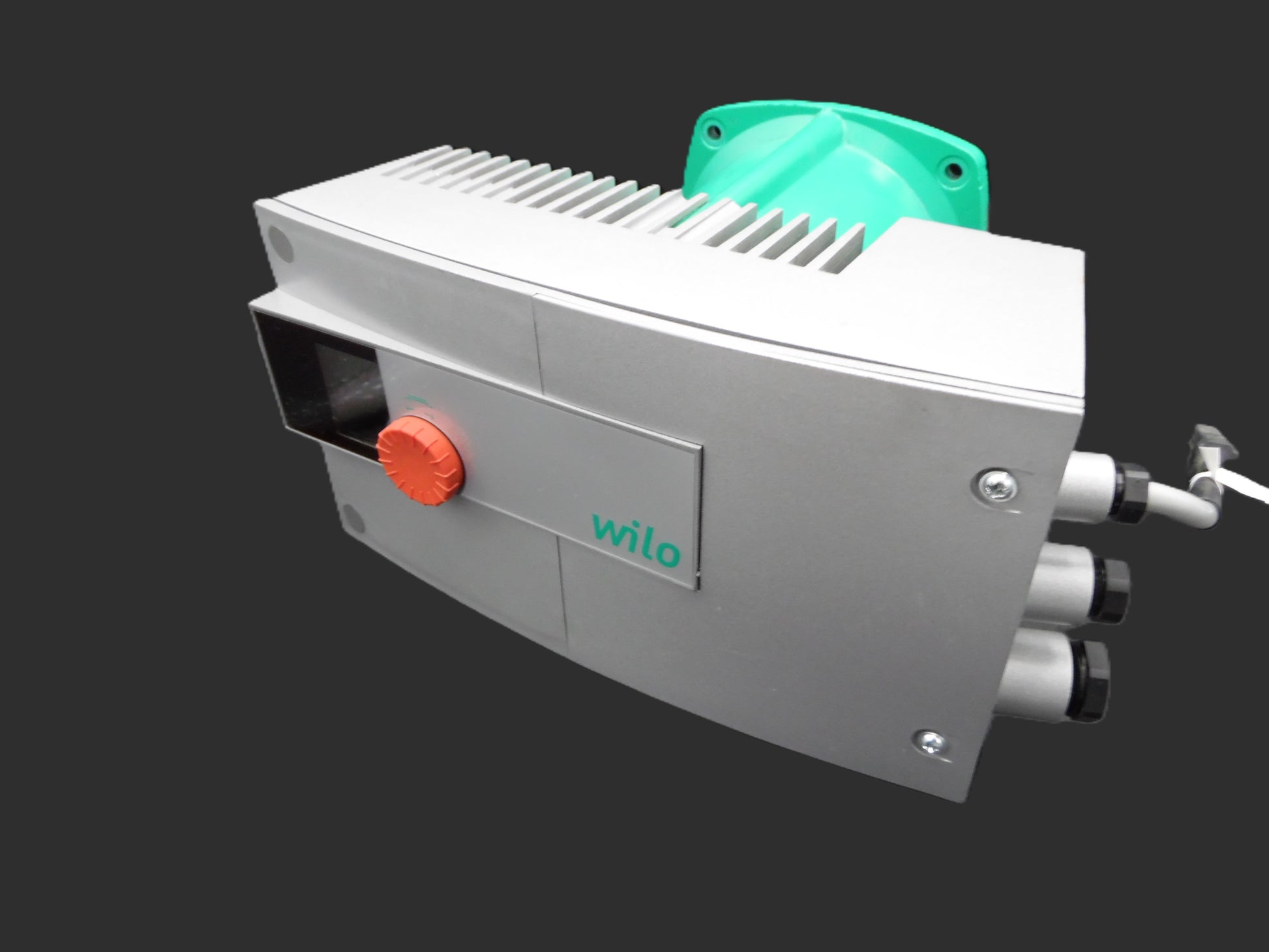

• Function: Circulates water around the heating or cooling circuit, with the electronic module varying pump speed automatically to match demand rather than running at full output. That keeps flow correct while cutting power use and noise, and the glandless design needs no routine servicing. Settings and readings are made on the front display and red control knob
• Power supply: 1~230V, 50/60 Hz
• Power input: P1 25-470 W, current 0.20-2.05 A
• Max head: 12 metres
• Connection: DN40 flange pump body
• Max operating pressure: PN 6/10
• Fluid temperature: TF 110
• Protection rating: IPX4D
• Software version: SW ≥ 5.01
• Energy efficiency index: EEI ≤ 0.23, Part 2
• Condition: Reconditioned
• Brand: Wilo

Compatibility

• IVT Green Line range
• Heating, cooling and industrial circulation systems using the Stratos 40/1-12 DA

This listing is for the pump head only. Check the model, article number, flange size and electrical rating against the existing pump before ordering.
